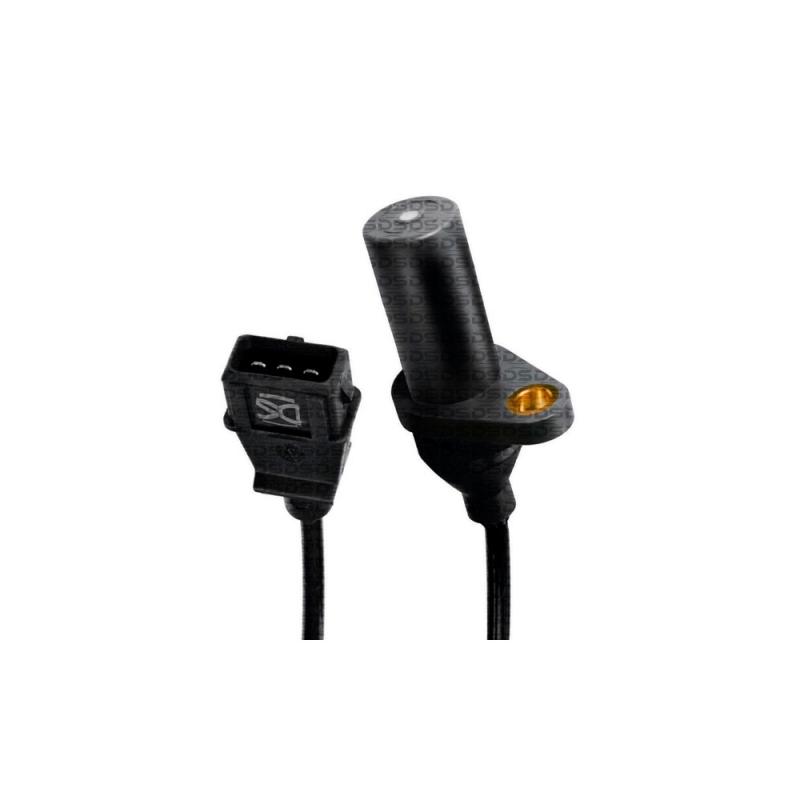

Crankshaft Position Sensor (PMS-CKP)

DS Code : 1801 | Other Codes : 46774532, 55187333, 55216915, 0261210124, 508124, 7040, T080024, C146, 5824, SRF0038, ESR4124

Cable length (cm): 65 | Ways: 03

Manufacturer Model Engine Fuel Year Note
Fiat Palio 1.0 4Cil 8v Gasoline 01 > 04 Fire
Fiat Siena 1.3 4Cil 8v Gasoline 03 > 04 Fire
Fiat Uno 1.0 4Cil 8v Gasoline 02 > 06 Fire
Fiat Uno 1.0 4Cil 8v Flex 06 > 08 Fire
Fiat Palio Weekend 1.3 4Cil 8v Gasoline 03 > 04 Fire
Fiat Fiorino 1.3 4Cil 8v Flex 07 > 13 Fire
Fiat Fiorino 1.3 4Cil 8v Gasoline 03 > 04 Fire
Fiat Palio 1.0 4Cil 8v Flex 06 > 09 Fire
Fiat Palio 1.3 4Cil 8v Flex 03 > 04 Fire
Fiat Palio Weekend 1.3 4Cil 8v Flex 04 > 05 Fire
Fiat Siena 1.0 4Cil 8v Flex 06 > 09 Fire
Fiat Siena 1.0 4Cil 8v Gasoline 02 > 03 Fire
Fiat Siena 1.3 4Cil 8v Flex 04 > 05 Fire
Fiat Strada 1.3 4Cil 8v Gasoline 03 > 05
Fiat Uno 1.3 4Cil 8v Flex 07 > 13 Fire
Fiat Uno 1.3 4Cil 8v Gasoline 03 > 04 Fire

Details Crankshaft Position Sensor (PMS-CKP)

The crankshaft position sensor sends an electrical signal to the injection module that allows the synchronization of the system: injection timing, ignition advance, high out of gear, etc.

The crankshaft position sensor set is basically comprised of a spur gear or phonic wheel, permanent magnet, ferromagnetic core, coil, coil wires, braided shield, and sensor connector.

The sensor cable is entirely covered by a metal mesh referred to as braided shield. This mesh is linked to a grounding line and prevents electromagnetic interferences from disturbing the pulse pattern sent by the sensor.

Some crankshaft position sensors are found in the front part of the engine, in the pulley, and others are already assembled on the engine flywheel.
