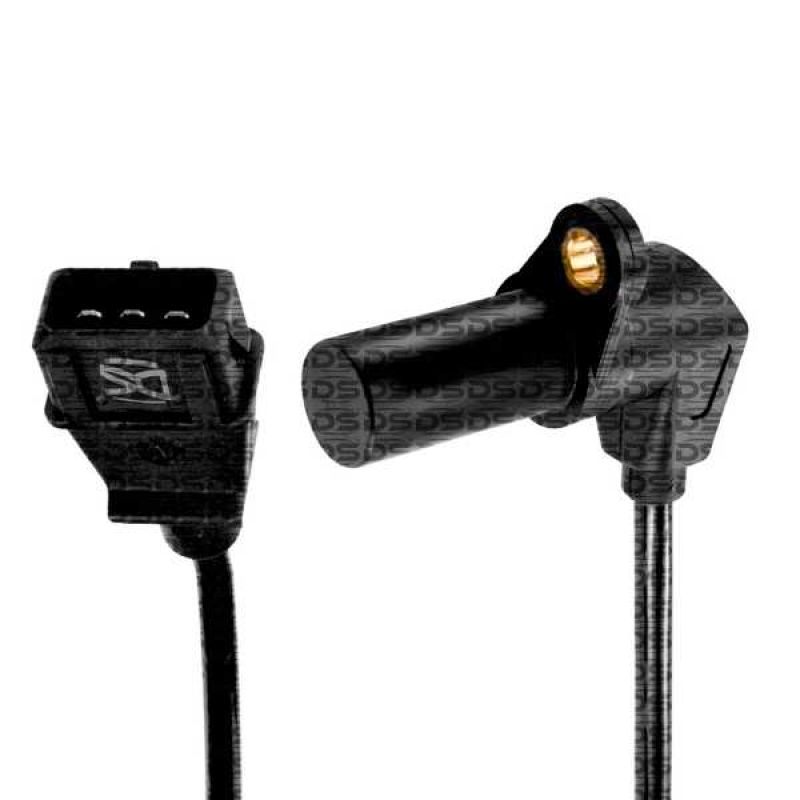

Crankshaft Position Sensor (PMS-CKP)

DS Code:1806
Cable length (cm): 67 | Ways: 03 | Technology: Inductive


DPL:508442
E-Klass:ESR4442
GM:90451442
LP:810442807
MAXAUTO:5818
MAXAUTO:080004
MTE:7048
SENSORAUTO:SEG0468
TSA:T080017
VDO:324003001R

Manufacturer	Model	Engine	Fuel	Year
GM	Astra	1.8 4Cil 16v	Flex	03 >
GM	Celta	1.0 4Cil 8v	Flex	05 > 08
GM	Celta	1.0 4Cil 8v	Gasoline	00 > 02
GM	Celta	1.4 4Cil 8v	Gasoline	03 > 06
GM	Corsa	1.0 4Cil 8v	Ethanol	00 > 05
GM	Corsa	1.0 4Cil 8v	Gasoline	94 > 05
GM	Corsa	1.0 4Cil 8v	Flex	02 >
GM	Corsa	1.4 4Cil 8v	Flex	07 > 12
GM	Corsa	1.4 4Cil 8v	Gasoline	94 > 96
GM	Corsa	1.6 4Cil 8v	Gasoline	95 > 06
GM	Corsa	1.8 4Cil 8v	Flex	04 > 09
GM	Corsa	1.8 4Cil 8v	Gasoline	02 > 03
GM	Meriva	1.8 4Cil 16v	Gasoline	03 > 04
GM	Meriva	1.8 4Cil 8v	Gasoline	03 > 12
GM	Montana	1.4 4Cil 8v	Flex	04 >
GM	Montana	1.8 4Cil 8v	Gasoline	04 >

Details Crankshaft Position Sensor (PMS-CKP)

The crankshaft position sensor sends an electrical signal to the injection module that allows the synchronization of the system: injection timing, ignition advance, high out of gear, etc.

The crankshaft position sensor set is basically comprised of a spur gear or phonic wheel, permanent magnet, ferromagnetic core, coil, coil wires, braided shield, and sensor connector.

The sensor cable is entirely covered by a metal mesh referred to as braided shield. This mesh is linked to a grounding line and prevents electromagnetic interferences from disturbing the pulse pattern sent by the sensor.

Some crankshaft position sensors are found in the front part of the engine, in the pulley, and others are already assembled on the engine flywheel.
