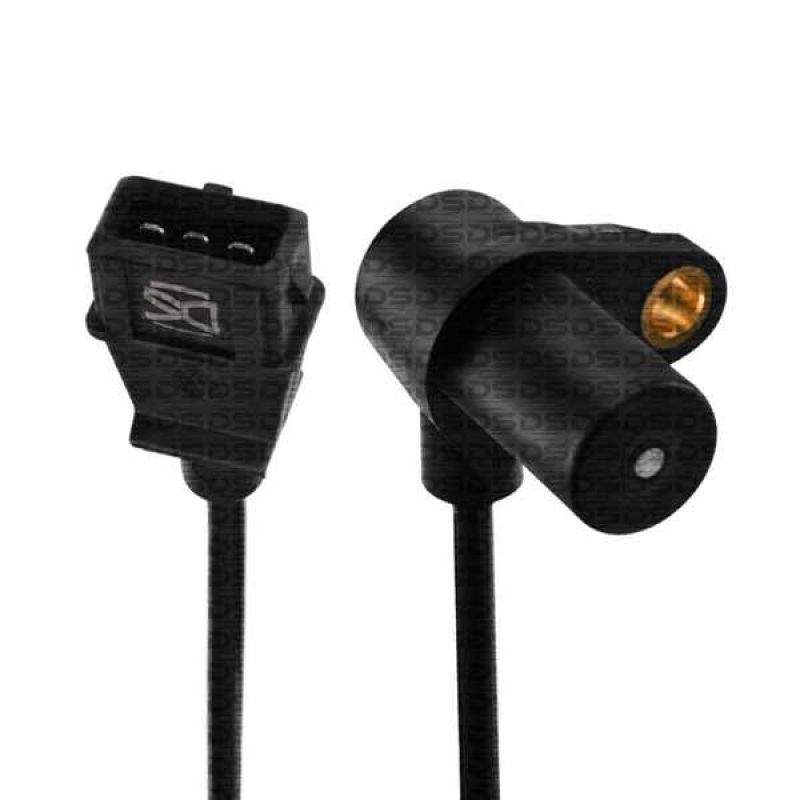

Crankshaft Position Sensor (PMS-CKP)

DS Code:1811
Cable length (cm): 62 | Ways: 03 | Technology: Inductive

Bosch:0261210102
Bosch:0261210103
Bosch:0261210118
DPL:508118
E-Klass:ESR4118
E-Klass:ESR4115
FIAT:7756924
FIAT:7799032
LP:810118802
MAXAUTO:5805
MAXAUTO:080023
MTE:7043
SENSORAUTO:SRF1608
TSA:T080006
Manufacturer Model Engine Fuel Year Note
Fiat Elba 1.6 4Cil 8v Gasoline 93 > 96 MPI
Fiat Fiorino 1.6 4Cil 8v Gasoline 95 > 96 MPI
Fiat Tempra 1.6 4Cil 8v Gasoline 93 > 96
Fiat Tipo 1.6 4Cil 8v Gasoline 95 > 97 MPI
Fiat Tipo 1.6 4Cil 8v Gasoline 93 > 95 SPI - With air conditioning With air conditioning
Fiat Uno 1.6 4Cil 8v Gasoline 94 > 95 MPI

Details Crankshaft Position Sensor (PMS-CKP)

The crankshaft position sensor sends an electrical signal to the injection module that allows the synchronization of the system: injection timing, ignition advance, high out of gear, etc.

The crankshaft position sensor set is basically comprised of a spur gear or phonic wheel, permanent magnet, ferromagnetic core, coil, coil wires, braided shield, and sensor connector.

The sensor cable is entirely covered by a metal mesh referred to as braided shield. This mesh is linked to a grounding line and prevents electromagnetic interferences from disturbing the pulse pattern sent by the sensor.

Some crankshaft position sensors are found in the front part of the engine, in the pulley, and others are already assembled on the engine flywheel.
