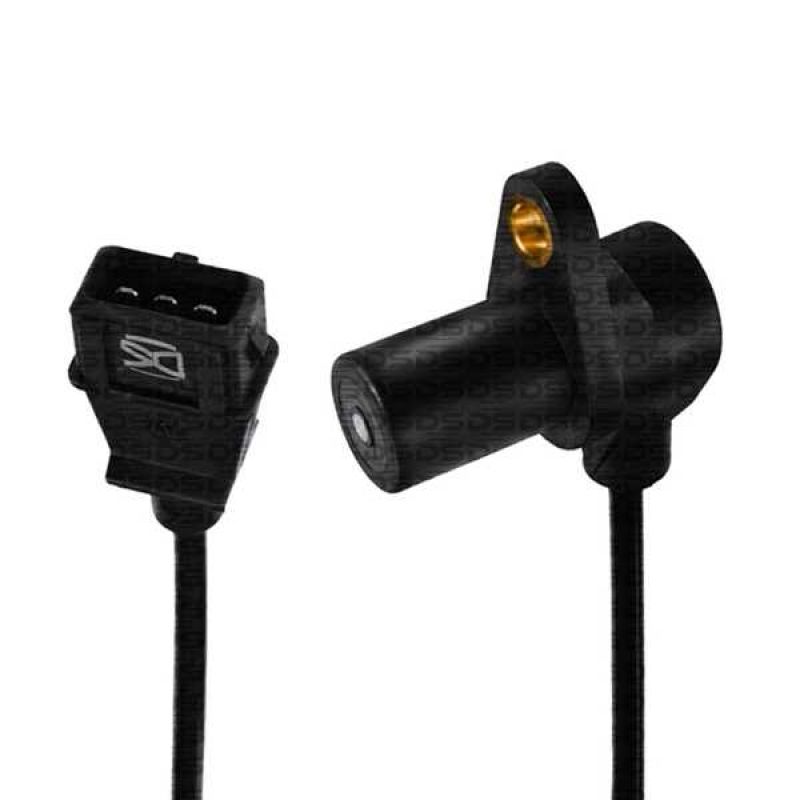

Crankshaft Position Sensor (PMS-CKP)

DS Code:1813
Cable length (cm): 28 | Ways: 03 | Technology: Inductive


Bosch:0261210083
Bosch:0261210065
Bosch:0261210154
DPL:508083
E-Klass:ESR4083
GM:93216079
MAXAUTO:8827
SENSORAUTO:SRG0041
TSA:T080002

Manufacturer	Model	Engine	Fuel	Year
GM	C-20	4.1 6Cil 18v	Gasoline	92 > 96
GM	Omega	4.1 6Cil 12v	Gasoline	94 > 98
GM	Silverado	4.1 6Cil 18v	Gasoline	96
GM	Suprema	4.1 6Cil 12v	Gasoline	94 > 98
Hyundai	S-Coupe	1.5 4Cil 12v	Gasoline	92 > 96

Details Crankshaft Position Sensor (PMS-CKP)

The crankshaft position sensor sends an electrical signal to the injection module that allows the synchronization of the system: injection timing, ignition advance, high out of gear, etc.

The crankshaft position sensor set is basically comprised of a spur gear or phonic wheel, permanent magnet, ferromagnetic core, coil, coil wires, braided shield, and sensor connector.

The sensor cable is entirely covered by a metal mesh referred to as braided shield. This mesh is linked to a grounding line and prevents electromagnetic interferences from disturbing the pulse pattern sent by the sensor.

Some crankshaft position sensors are found in the front part of the engine, in the pulley, and others are already assembled on the engine flywheel.
