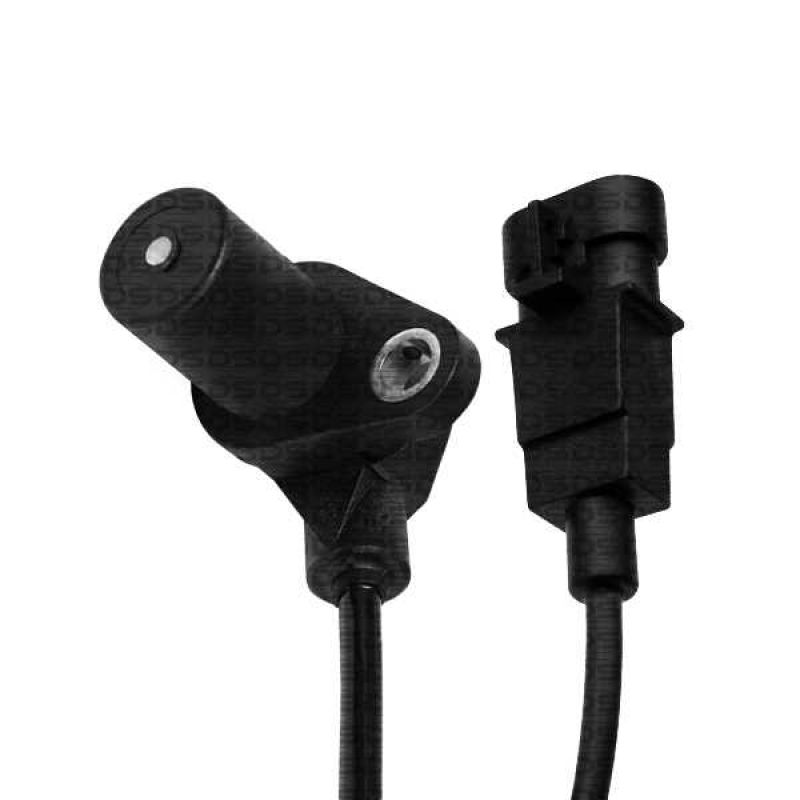

Crankshaft Position Sensor (PMS-CKP)

DS Code:1841
Cable length (cm): 44 | Ways: 03 | Technology: Inductive

Delphi:28129701
E-Klass:ESR4025
Hafei:4621AD3700800
MAXAUTO:080240
MAXAUTO:8801
MTE:70425
Manufacturer Model Engine Fuel Year Note
Effa M100 1.0 4Cil 8v Gasoline 09 > 15
Hafei Towner 1.0 4Cil 8v Gasoline 09 > 15
Lifan 320 1.3 4Cil 16v Gasoline 10 > 11

Details Crankshaft Position Sensor (PMS-CKP)

The crankshaft position sensor sends an electrical signal to the injection module that allows the synchronization of the system: injection timing, ignition advance, high out of gear, etc.

The crankshaft position sensor set is basically comprised of a spur gear or phonic wheel, permanent magnet, ferromagnetic core, coil, coil wires, braided shield, and sensor connector.

The sensor cable is entirely covered by a metal mesh referred to as braided shield. This mesh is linked to a grounding line and prevents electromagnetic interferences from disturbing the pulse pattern sent by the sensor.

Some crankshaft position sensors are found in the front part of the engine, in the pulley, and others are already assembled on the engine flywheel.
