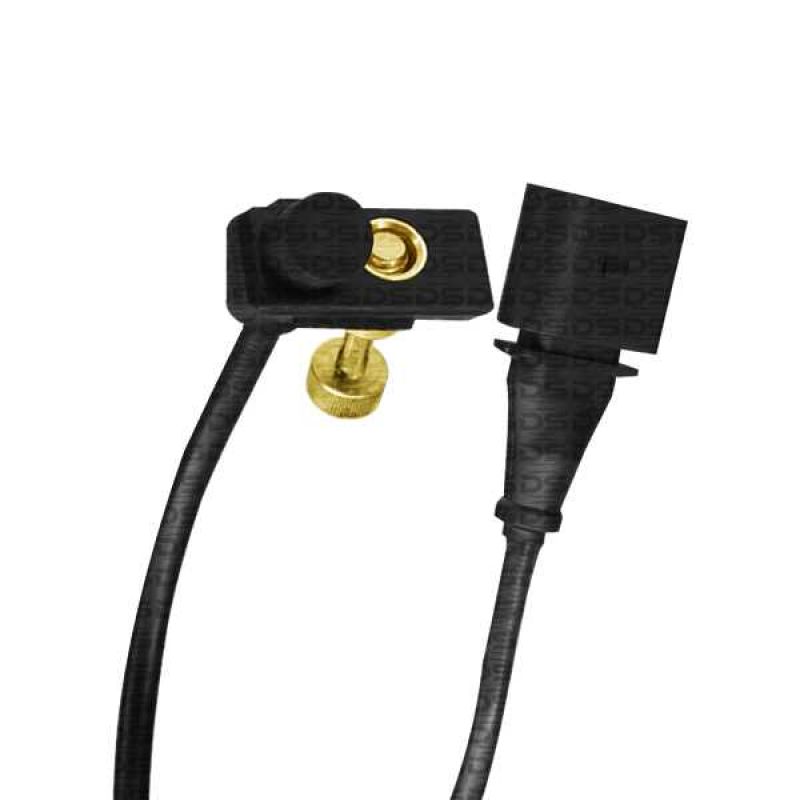

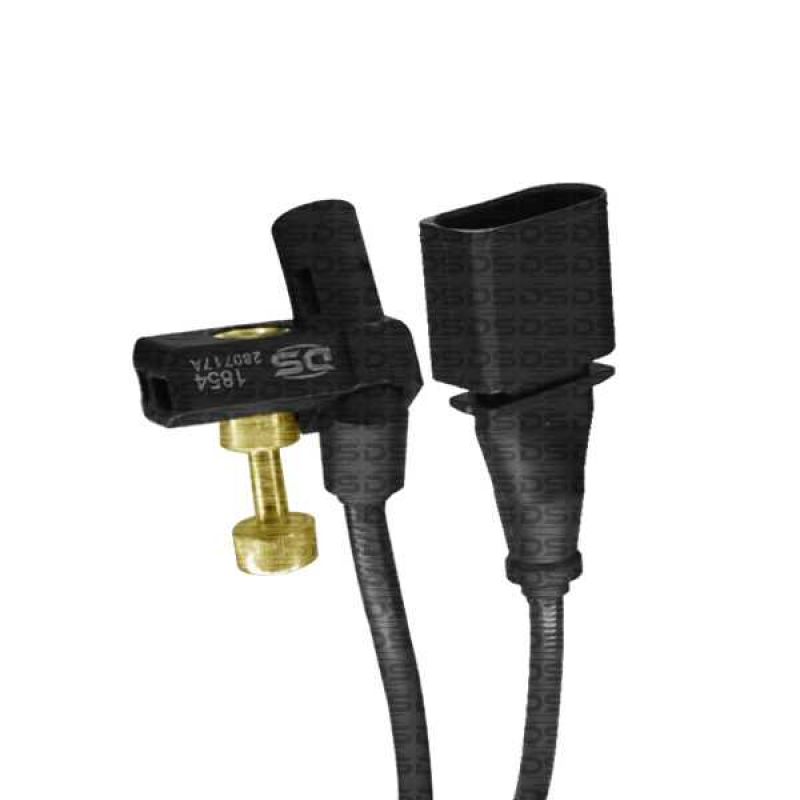

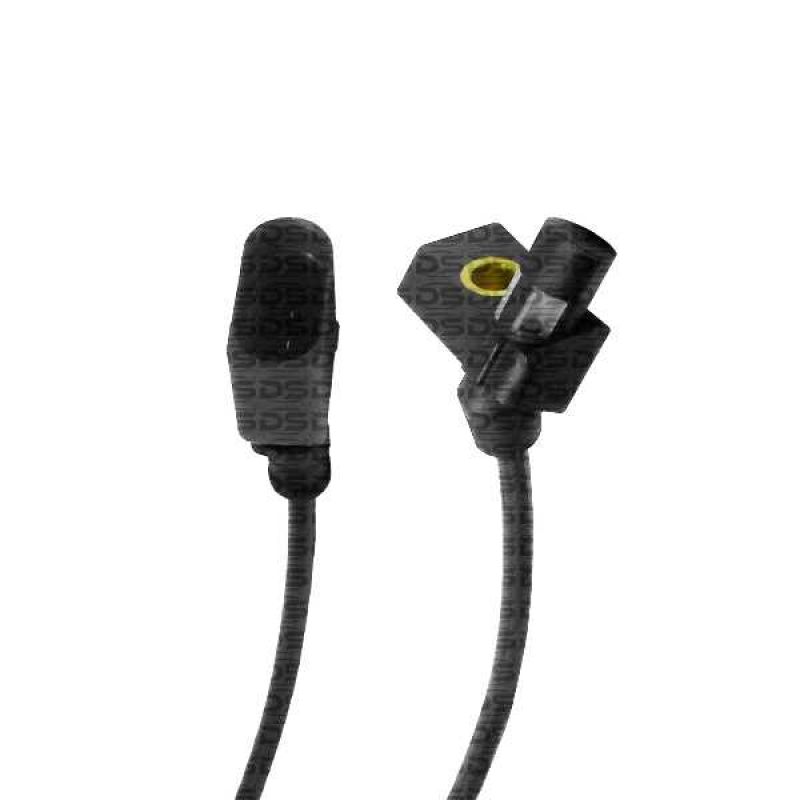

Crankshaft Position Sensor (PMS-CKP)

DS Code:1854
Cable length (cm): 55 | Ways: 03 | Technology: Hall


Bosch:0261210188
Bosch:0261210189
MAXAUTO:5847
MAXAUTO:080047
SEAT:030957147G
TSA:T080036
VW:030957147G

Manufacturer	Model	Engine	Fuel	Year
Seat	Arosa	1.0 4Cil 8v	Gasoline	97 > 04
Seat	Arosa	1.4 4Cil 8v	Gasoline	97 > 04
Seat	Cordoba	1.0 4Cil 8v	Gasoline	99 > 02
Seat	Cordoba	1.4 4Cil 8v	Gasoline	99 > 02
Seat	Ibiza	1.0 4Cil 8v	Gasoline	99 > 02
Seat	Ibiza	1.4 4Cil 8v	Gasoline	99 > 02
Seat	Inca	1.4 4Cil 16v	Gasoline	00 > 03
Seat	Inca	1.4 4Cil 8v	Gasoline	95 > 03
Volkswagen	Caddy	1.4 4Cil 8v	Gasoline	95 > 04
Volkswagen	Derby	1.6 4Cil 8v	Gasoline	02 >
Volkswagen	Flight 60	1.4 4Cil 8v	Gasoline	95 > 01
Volkswagen	Flight	1.6 4Cil 8v	Gasoline	02 > 06
Volkswagen	Lupo	1.0 4Cil 8v	Gasoline	98 > 05
Volkswagen	Polo	1.0 4Cil 8v	Gasoline	99 > 02
Volkswagen	Polo	1.4 4Cil 8v	Gasoline	98 > 01
Volkswagen	Polo	1.6 4Cil 16v	Gasoline	98 > 99
Volkswagen	Polo	1.6 4Cil 8v	Gasoline	02 > 05

Details Crankshaft Position Sensor (PMS-CKP)

The crankshaft position sensor sends an electrical signal to the injection module that allows the synchronization of the system: injection timing, ignition advance, high out of gear, etc.

The crankshaft position sensor set is basically comprised of a spur gear or phonic wheel, permanent magnet, ferromagnetic core, coil, coil wires, braided shield, and sensor connector.

The sensor cable is entirely covered by a metal mesh referred to as braided shield. This mesh is linked to a grounding line and prevents electromagnetic interferences from disturbing the pulse pattern sent by the sensor.

Some crankshaft position sensors are found in the front part of the engine, in the pulley, and others are already assembled on the engine flywheel.
