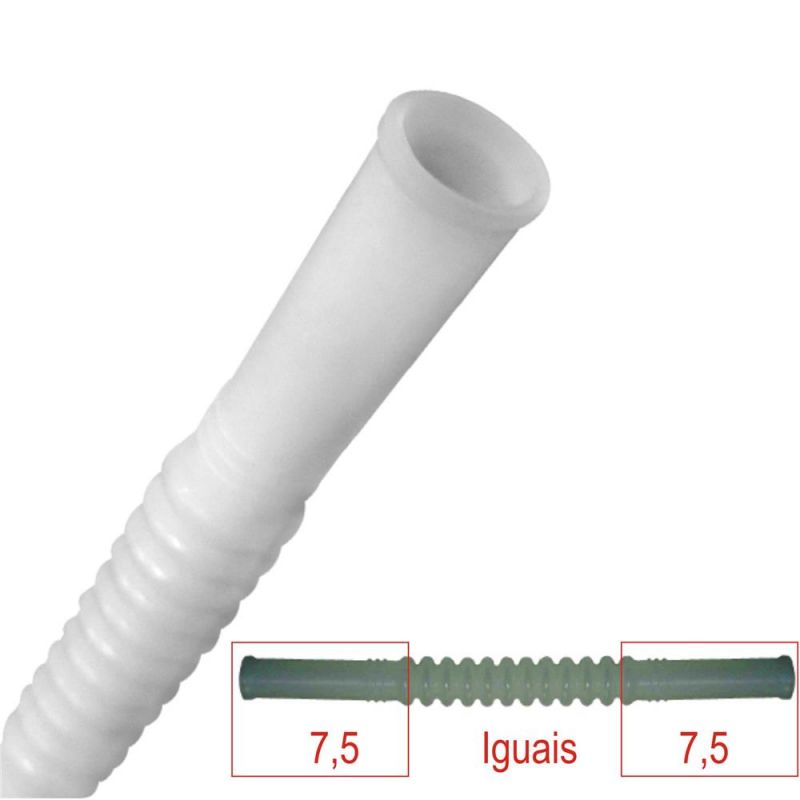

Fuel Pump-Module Corrugated Tube

DS Code:1503
Nozzle 01: 7,5 | Nozzle 02: 7,5 | Length (mm): 185 | Material: PA12


ASSVE:AMC0054
Cristal:1709
Cristal:1722
DSC:20185
Estevão:TCB003
TSA:T040103

Manufacturer	Model	Engine	Fuel	Year	Note
Diversas	-	Todos	All	-
Fiat	Doblò	1.4 4Cil 8v	Flex	09 >	MPI
Fiat	Doblò	1.8 4Cil 8v	Flex	06 > 10	MPI
Fiat	Linea	1.8 4Cil 16v	Flex	10 > 15
Fiat	Linea	1.9 4Cil 16v	Flex	08 > 10
Fiat	Punto	1.4 4Cil 8v	Flex	12 > 14
Fiat	Punto	1.4 4Cil 8v	Flex	08 > 12
Fiat	Punto	1.6 4Cil 16v	Flex	11 > 14
Fiat	Punto	1.6 4Cil 16v	Flex	10 > 12
Fiat	Punto	1.8 4Cil 16v	Flex	11 > 14
Fiat	Punto	1.8 4Cil 16v	Flex	10 > 12
Fiat	Punto	1.8 4Cil 8v	Flex	08 > 10
Ford	Courier	1.6 4Cil 8v	Gasoline	02 >
Ford	Courier	1.6 4Cil 8v	Flex	06 > 13
Ford	Focus	1.6 4Cil 16v	Flex	09 > 13	Sigma
Ford	Focus	2.0 4Cil 16v	Flex	09 > 13	Duratec

Details Fuel Pump-Module Corrugated Tube

The corrugated tube (it looks like a hose) allows the fuel to flow from the electric pump to the seal (cap) of the fuel module (where it is located).

The tube should support all pressure of the fuel line and be flexible in order to not prevent the module movements.

The electric pump models using this type of hose have a ridged outlet nozzle.
