Fuel Pump-Module Corrugated Tube

DS Code:1504

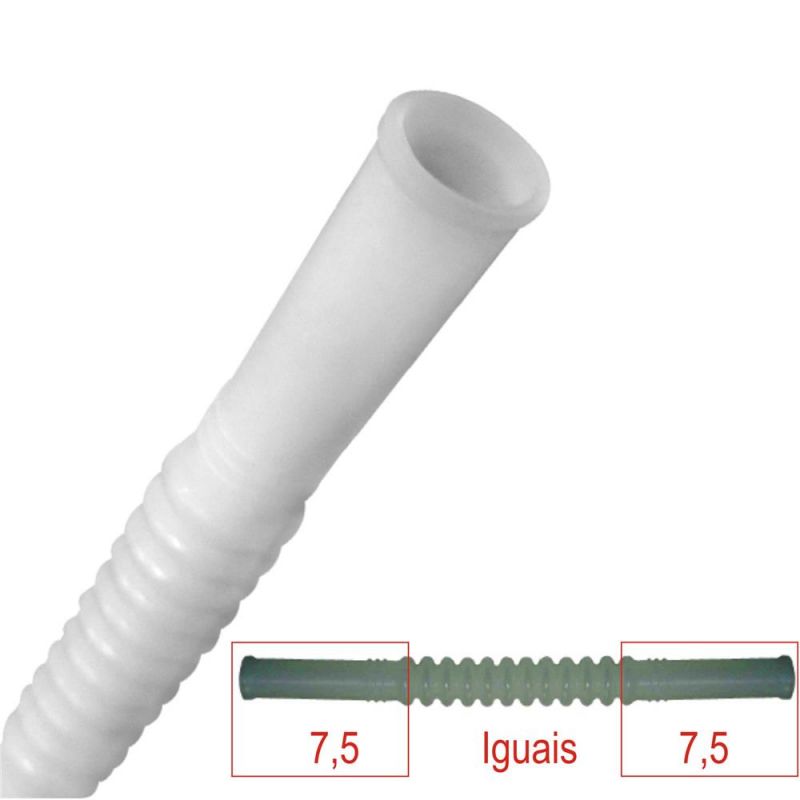

Nozzle 01: 7,5 | Nozzle 02: 7,5 | Length (mm): 210 | Material: PA12


ASSVE:AMC0018
Cristal:1708
Cristal:1723
DSC:20200
Estevão:TCB004
TSA:T040104

Manufacturer	Model	Engine	Fuel	Year	Note
Citroën	Xsara Picasso	1.6 4Cil 16v	Gasoline	05 > 06
Citroën	Xsara Picasso	1.6 4Cil 16v	Flex	06 > 12
Citroën	Xsara Picasso	2.0 4Cil 16v	Gasoline	01 >
Diversas	-	Todos	All	-
GM	Blazer	2.4 4Cil 8v	Flex	07 > 12	MPFI
Honda	City	1.5 4Cil 16v	Flex	12 > 14
Honda	City	1.5 4Cil 16v	Flex	09 > 12
Honda	City	1.5 4Cil 16v	Flex	14 >
Honda	Fit	1.4 4Cil 16v	Flex	08 > 12
Honda	Fit	1.4 4Cil 16v	Flex	12 > 14
Honda	Fit	1.4 4Cil 16v	Flex	14 >
Honda	Fit	1.5 4Cil 16v	Flex	12 > 14
Honda	Fit	1.5 4Cil 16v	Flex	08 > 12
Honda	Fit	1.5 4Cil 16v	Flex	14 >
Honda	HR-V	1.8 4Cil 16v	Flex	15 >
Peugeot	206	1.0 3Cil 12v	Gasoline	00 >
Peugeot	206	1.4 4Cil 8v	Gasoline	00 >
Peugeot	206	1.6 4Cil 8v	Gasoline	00 >
Peugeot	206	2.0 4Cil 16v	Gasoline	00 >

Details Fuel Pump-Module Corrugated Tube

The corrugated tube (it looks like a hose) allows the fuel to flow from the electric pump to the seal (cap) of the fuel module (where it is located).

The tube should support all pressure of the fuel line and be flexible in order to not prevent the module movements.

The electric pump models using this type of hose have a ridged outlet nozzle.
