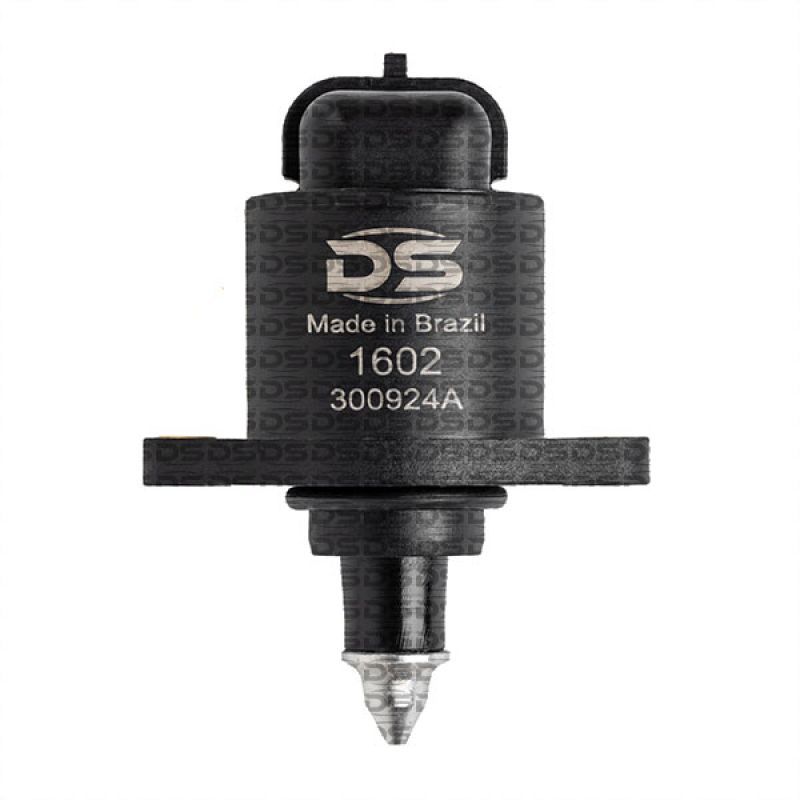

Idle Air Control (IAC)

DS Code: 1602 | Other Codes: B0801, 40380202, AT00801R, 7076356, FSPF9N825AA, 0269060491, 28222432, F00099M801

Manufacturer Model Engine Fuel Year Note
Fiat Elba 1.5 4Cil 8v SPI Gasolina 92 > 96
Fiat Fiorino 1.5 4Cil 8v SPI Gasolina 94 > 96
Fiat Prêmio 1.5 4Cil 8v SPI Gasolina 92 > 94
Fiat Tempra 2.0 4Cil 16v MPI Gasolina 93 > 96
Fiat Tempra 2.0 4Cil 8v SPI Etanol 95 > 96
Fiat Uno 1.5 4Cil 8v SPI Gasolina 92 > 96
Ford Escort 1.6 4Cil 8v AP Etanol 94 > 96
Ford Escort 1.8 4Cil 8v AP Gasolina 94 > 96
Ford Pampa 1.8 4Cil 8v AP Gasolina 96 > 97
Ford Royale 1.8 4Cil 8v AP Etanol 94 > 96
Ford Royale 1.8 4Cil 8v AP Gasolina 93 > 96
Ford Verona 1.6 4Cil 8v AP Gasolina 94 > 96
Ford Verona 1.8 4Cil 8v AP Etanol 94 > 96
Ford Verona 1.8 4Cil 8v AP Gasolina 94 > 96
Ford Versailles 1.8 4Cil 8v AP Etanol 94 > 96
Ford Versailles 1.8 4Cil 8v AP Gasolina 93 > 96
Volkswagen Gol G2 1.6 4Cil 8v Etanol 94 > 97
Volkswagen Gol G2 1.6 4Cil 8v Gasolina 94 > 97
Volkswagen Gol G2 1.8 4Cil 8v Etanol 94 > 97
Volkswagen Gol G2 1.8 4Cil 8v Gasolina 94 > 97
Volkswagen Gol G2 2.0 4Cil 16v Etanol 95 > 96
Volkswagen Gol G2 2.0 4Cil 16v Gasolina 95 > 96
Volkswagen Gol G2 2.0 4Cil 8v Gasolina 94 > 97
Volkswagen Logus 1.6 4Cil 8v Gasolina 95 > 96
Volkswagen Logus 1.8 4Cil 8v Etanol 95 > 96
Volkswagen Logus 1.8 4Cil 8v Gasolina 95 > 96
Volkswagen Parati G2 1.6 4Cil 8v Etanol 95 > 97
Volkswagen Parati G2 1.6 4Cil 8v Gasolina 95 > 97
Volkswagen Parati G2 1.8 4Cil 8v Etanol 95 > 97
Volkswagen Parati G2 1.8 4Cil 8v Gasolina 95 > 97
Volkswagen Parati G2 2.0 4Cil 16v Etanol 95 > 97
Volkswagen Parati G2 2.0 4Cil 16v Gasolina 95 > 97
Volkswagen Parati G2 2.0 4Cil 8v Gasolina 95 > 97
Volkswagen Pointer 1.6 4Cil 8v Gasolina 95 > 96
Volkswagen Pointer 1.8 4Cil 8v Etanol 95 > 96
Volkswagen Pointer 1.8 4Cil 8v Gasolina 95 > 96
Volkswagen Quantum 1.8 4Cil 8v Etanol 95 > 96
Volkswagen Quantum 1.8 4Cil 8v Gasolina 95 > 96
Volkswagen Santana 1.8 4Cil 8v Etanol 93 > 97
Volkswagen Santana 1.8 4Cil 8v Gasolina 93 > 97

Details Idle Air Control (IAC)

The idle actuator, also known as Idle Air Control – IAC and stepper motor, controls the rotation of the engine under idle conditions.

This “valve” is controlled by the Electronic Control Unit (ECU) and has a stepper motor that, depending on the engine load, increases or decreases the passage of air to the intake manifold through a deviation called bypass.

Under idle conditions, the position of the obturator is calculated based on the voltage signals, the engine coolant temperature (ECT), and the manifold absolute pressure (MAP).

The idle actuator is found in the throttle body, usually fixed by two screws or snapped-in.
