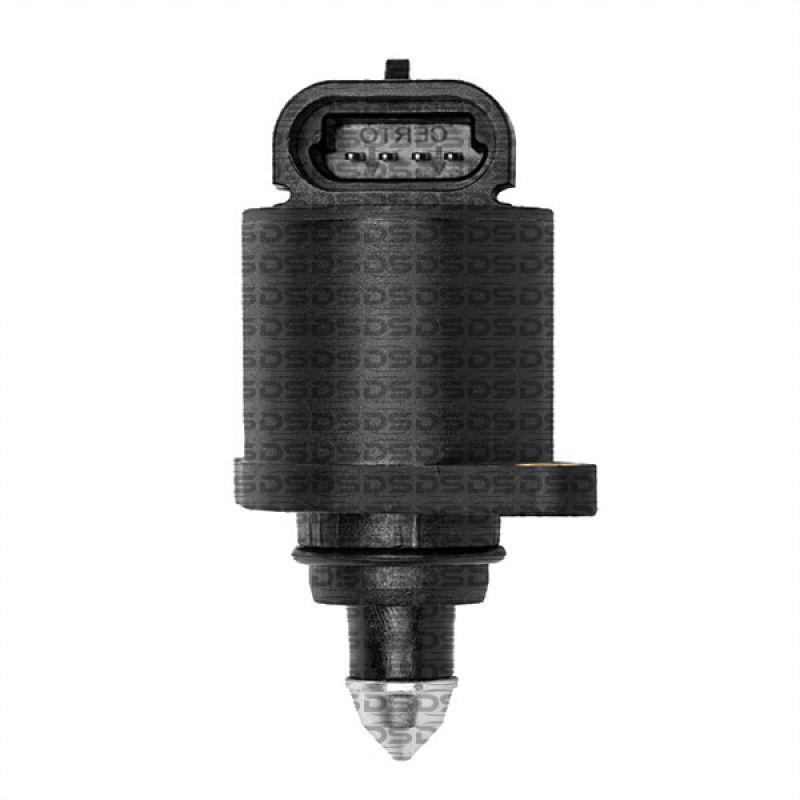

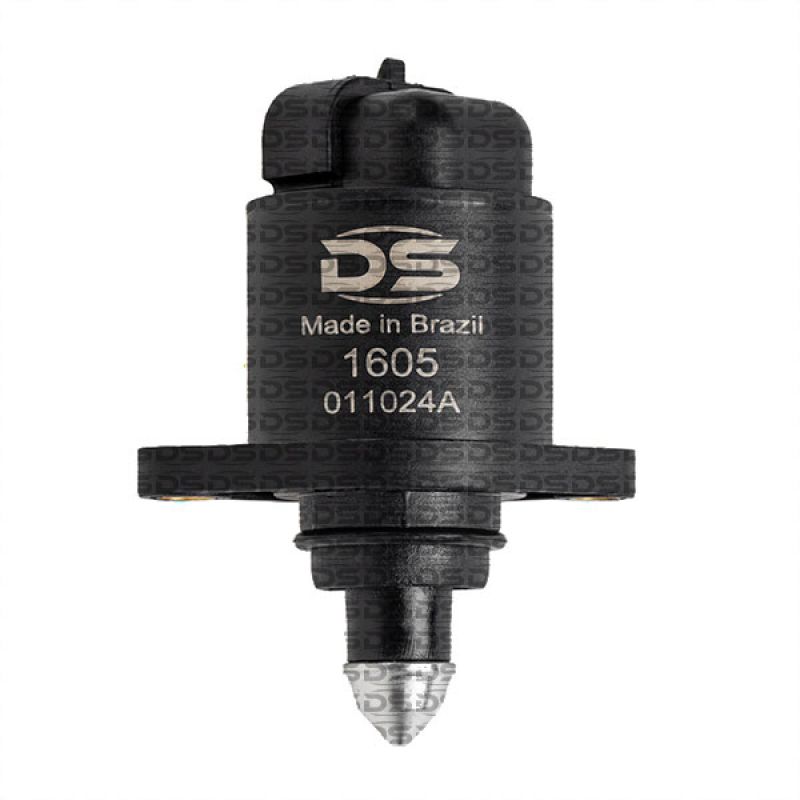

Idle Air Control (IAC)

DS Code:1605

AUTRON:18024
Bosch:F00099M600
DAEWOO:92061898
DPL:808600
Delphi:ICD00126
E-Klass:EMP600
GM:92061898
GM:17059600
GM:17112898
LP:659600600
MTE:7492
Marelli:59600
Marelli:40001502
VDO:AT59600R
Manufacturer Model Engine Fuel Year Note
Asia Towner 1.0 4Cil 8v Gasoline 09 >
Daewoo Evanda 2.0 4Cil 16v Gasoline 02 > 05
Daewoo Leganza 2.0 4Cil 16v Gasoline 97 > 05
Daewoo Leganza 2.2 4Cil 16v Gasoline 97 > 05
Daewoo Nubira 1.8 4Cil 16v Gasoline 03 > 05
Daewoo Nubira 2.0 4Cil 16v Gasoline 97 > 05
Daewoo Tacuma 2.0 4Cil 16v Gasoline 00 > 05
GM Blazer 2.2 4Cil 8v Gasoline 95 > 96
GM Evanda 2.0 4Cil 16v Gasoline 05 > 11
GM Ipanema 1.8 4Cil 8v Gasoline 91 > 97
GM Ipanema 1.8 4Cil 8v Ethanol 91 > 97
GM Ipanema 2.0 4Cil 8v Gasoline 91 > 97
GM Ipanema 2.0 4Cil 8v Ethanol 91 > 97
GM Kadett 1.8 4Cil 8v Gasoline 91 > 97
GM Kadett 1.8 4Cil 8v Ethanol 91 > 97
GM Kadett 2.0 4Cil 8v Gasoline 91 > 97
GM Monza 1.8 4Cil 8v Gasoline 91 > 96
GM Monza 1.8 4Cil 8v Ethanol 91 > 96
GM Monza 2.0 4Cil 8v Gasoline 91 > 96
GM Monza 2.0 4Cil 8v Ethanol 91 > 96
GM Optra 2.0 4Cil 16v Gasoline 06 > 07
GM S10 2.2 4Cil 8v Gasoline 95 > 96
GM Tacuma 2.0 4Cil 16v Gasoline 05 > 12

Details Idle Air Control (IAC)

The idle actuator, also known as Idle Air Control – IAC and stepper motor, controls the rotation of the engine under idle conditions.

This “valve” is controlled by the Electronic Control Unit (ECU) and has a stepper motor that, depending on the engine load, increases or decreases the passage of air to the intake manifold through a deviation called bypass.

Under idle conditions, the position of the obturator is calculated based on the voltage signals, the engine coolant temperature (ECT), and the manifold absolute pressure (MAP).

The idle actuator is found in the throttle body, usually fixed by two screws or snapped-in.
