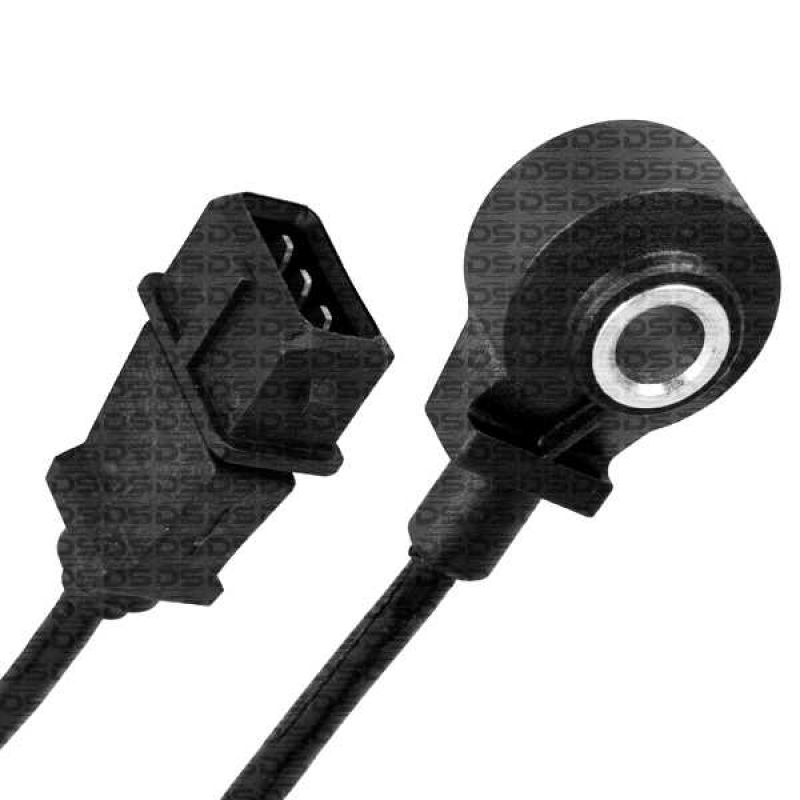

Knock Sensor (KS)

DS Code: 2103 | Other Codes: KNE03, 60602832

Ways: 3 | Cable Length (cm): 20 |

Manufacturer Model Engine Fuel Year Note
Fiat Brava 1.6 4Cil 16v Gasolina 00 > 01
Fiat Fiorino 1.5 4Cil 8v MPI Gasolina 97 > 02
Fiat Palio 1.0 4Cil 8v MPI Gasolina 96 > 01
Fiat Palio 1.5 4Cil 8v MPI Gasolina 96 > 04
Fiat Palio 1.6 4Cil 16v MPI Gasolina 96 > 00
Fiat Palio 1.6 4Cil 8v MPI Gasolina 99 > 00
Fiat Siena 1.0 4Cil 8v MPI Gasolina 99 > 00
Fiat Siena 1.5 4Cil 8v MPI Etanol 03 > 04
Fiat Siena 1.6 4Cil 16v MPI Gasolina 98 > 99
Fiat Siena 1.6 4Cil 8v MPI Gasolina 99 > 00
Fiat Strada 1.5 4Cil 8v MPI Gasolina 99 > 04
Fiat Strada 1.6 4Cil 16v MPI Gasolina 99 > 01
Fiat Strada 1.6 4Cil 8v MPI Gasolina 99 > 00
Fiat Uno 1.5 4Cil 8v MPI Gasolina 97 > 02

Details Knock Sensor (KS)

The knock sensor captures (identifies) the knock process and informs the Electronic Control Unit (ECU), which will gradually correct the ignition point, if necessary, avoiding an irregular ignition, providing better and more economic performance for the engines.

In order to avoid interference of external signals, the cable that links the sensor to the ECU is shielded and formed by a grounded covering mesh.

The knock sensor is screwed in the engine block next to the ignition cylinder.
