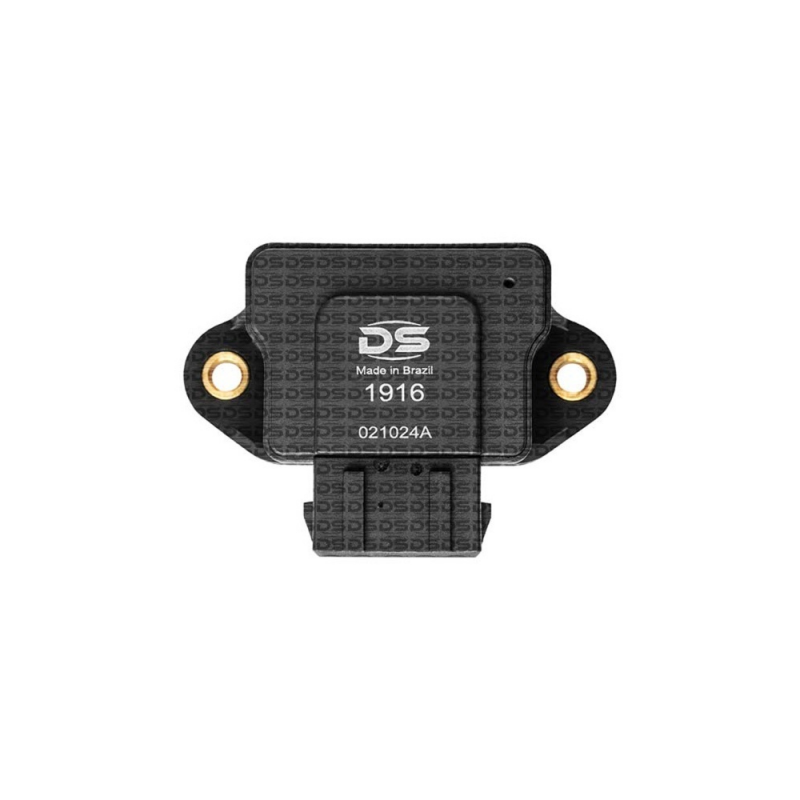

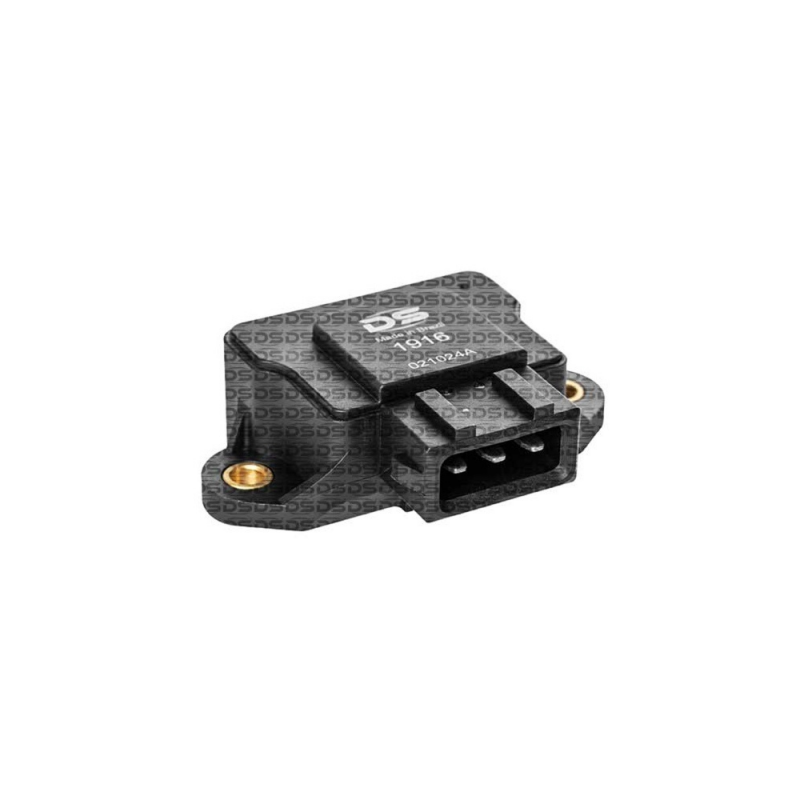

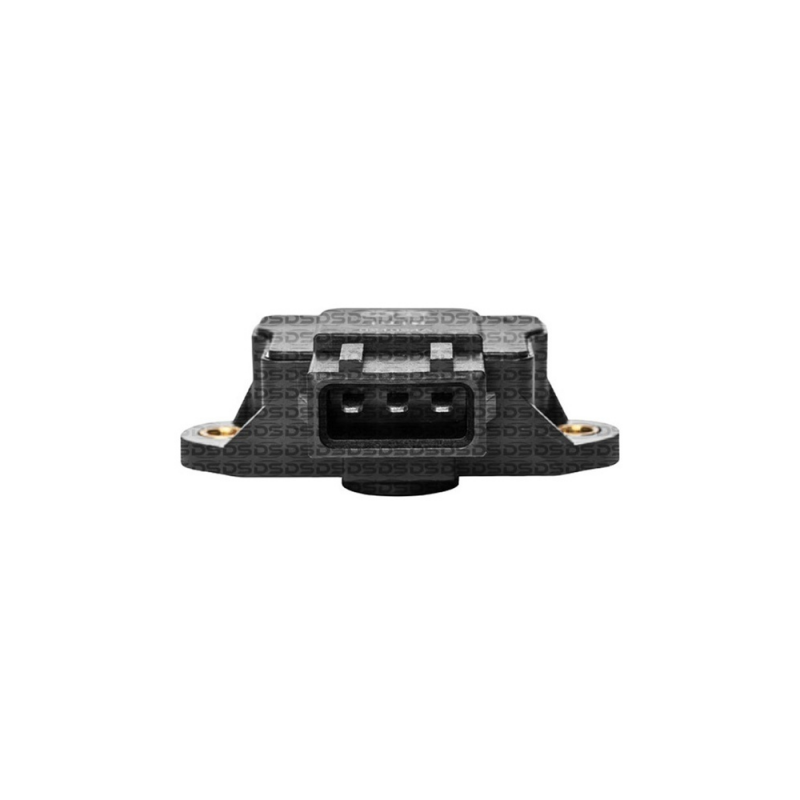

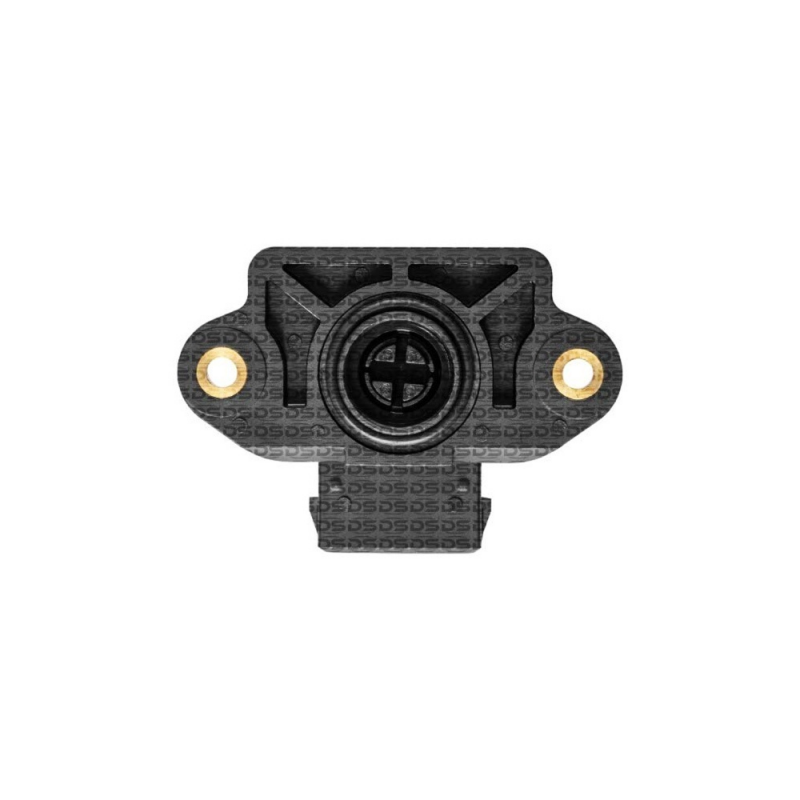

Throttle Position Sensor (TPS)

DS Code:1916

DPL:708785
E-Klass:ESB385Q
GAUSS:GS7387
HELLA:008476101
HELLA:6PX008476101
LP:707383708
MAXAUTO:060033
MAXAUTO:5712
MTE:7271
VW:037907385Q
VW:50231900
VW:50231902
Vogel:11037
Manufacturer Model Engine Fuel Year Note
Seat Cordoba 2.0 4Cil 16v Gasoline 96 > 99
Volkswagen Corrado 2.9 VR6 12v Gasoline 91 > 95
Volkswagen Golf 2.0 4Cil 16v Gasoline 92 > 97 Turbo
Volkswagen Golf 2.8 VR6 12v Gasoline 92 > 97
Volkswagen Jetta 2.0 4Cil 8v Gasoline 93 > 97
Volkswagen Passat 1.6 4Cil 8v Gasoline 94 > 96
Volkswagen Passat 2.0 4Cil 16v Gasoline 94 > 96

Details Throttle Position Sensor (TPS)

With a new technology, the DS throttle position sensor has an electronic sensor that exempts the product from corrosion, wear, and misuse problems, ensuring greater accuracy, repeatability, and durability.

The Throttle Position Sensor (TPS) is used to monitor the accelerator position in an internal combustion engine.

This sensor is usually connected to the throttle axis to directly control the position of the accelerator throttle valve.

Through the TPS, the Electronic Control Unit (ECU) obtains instantaneous information about the throttle position, which allows the central to identify the power required by the driver.

This information will be used to help the calculation of the injection timing and ignition advance, among other operating strategies.
