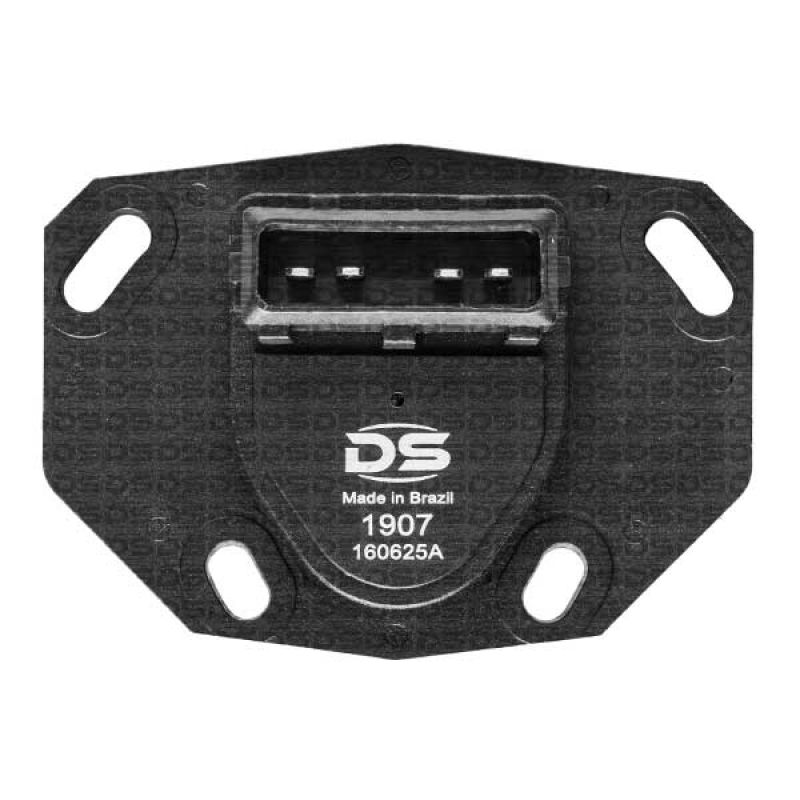

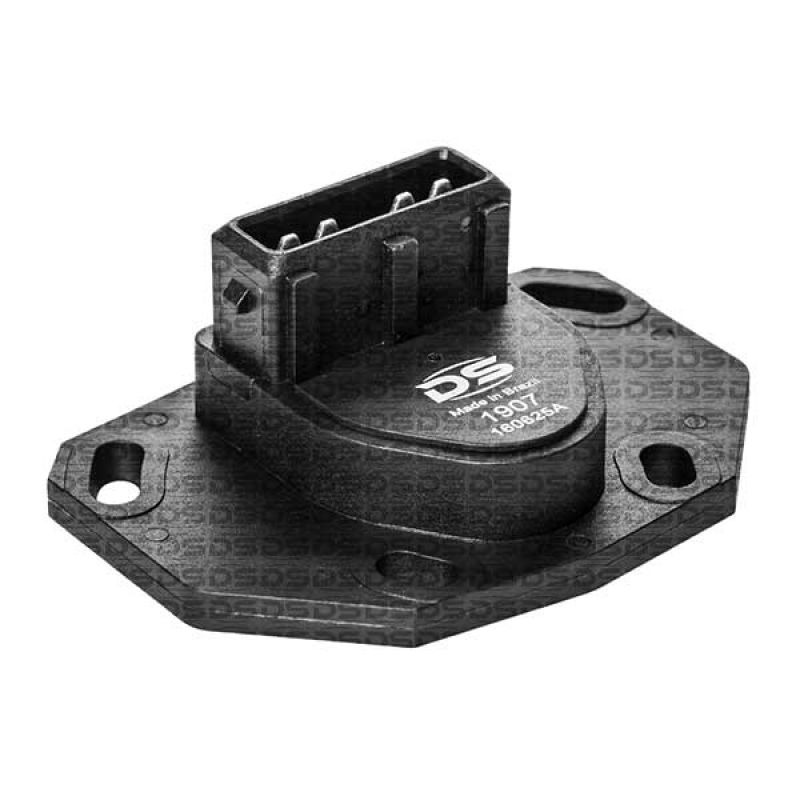

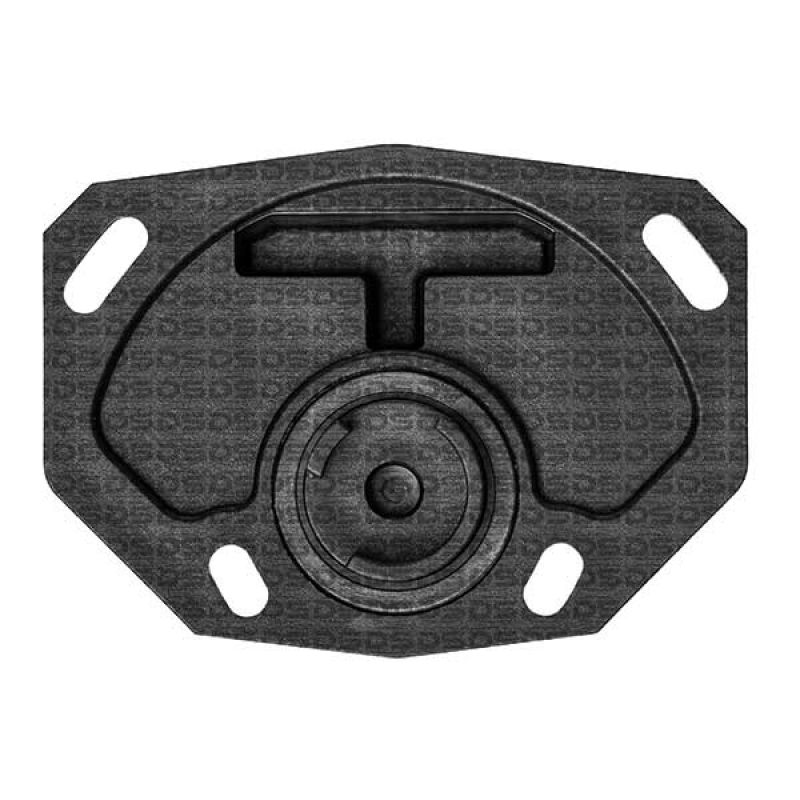

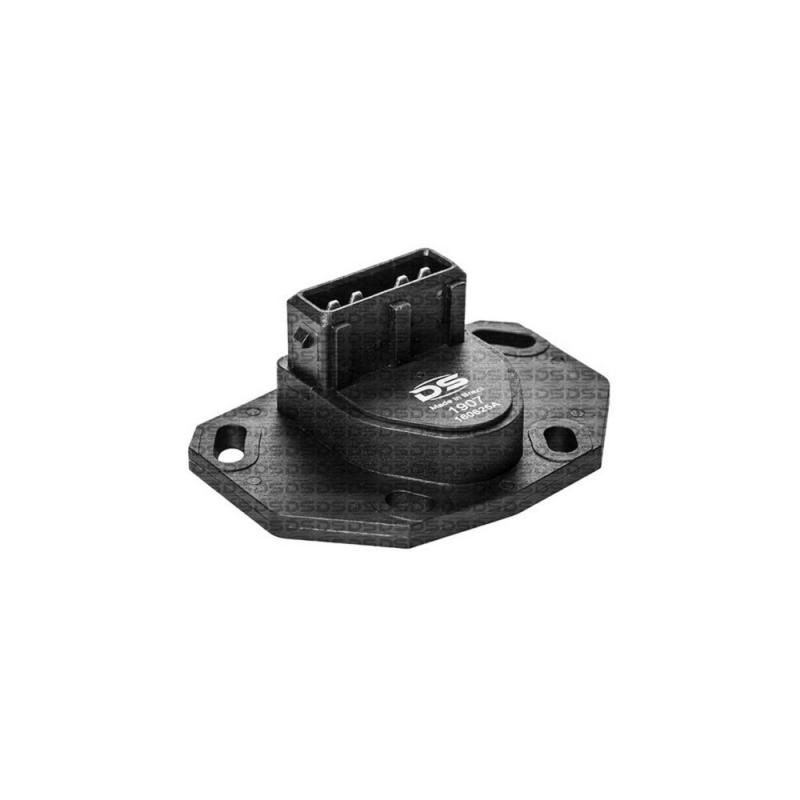

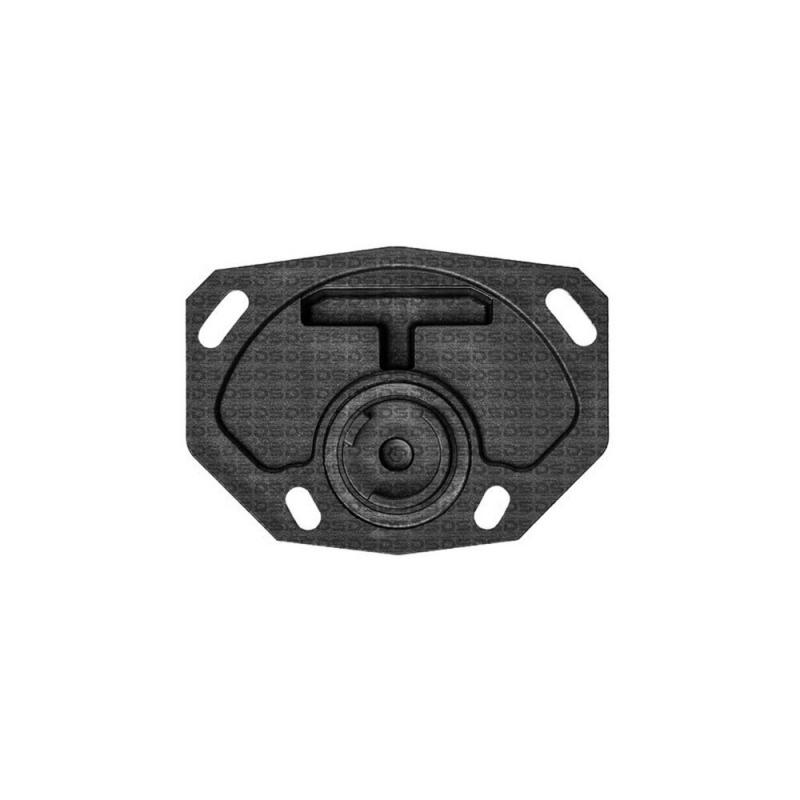

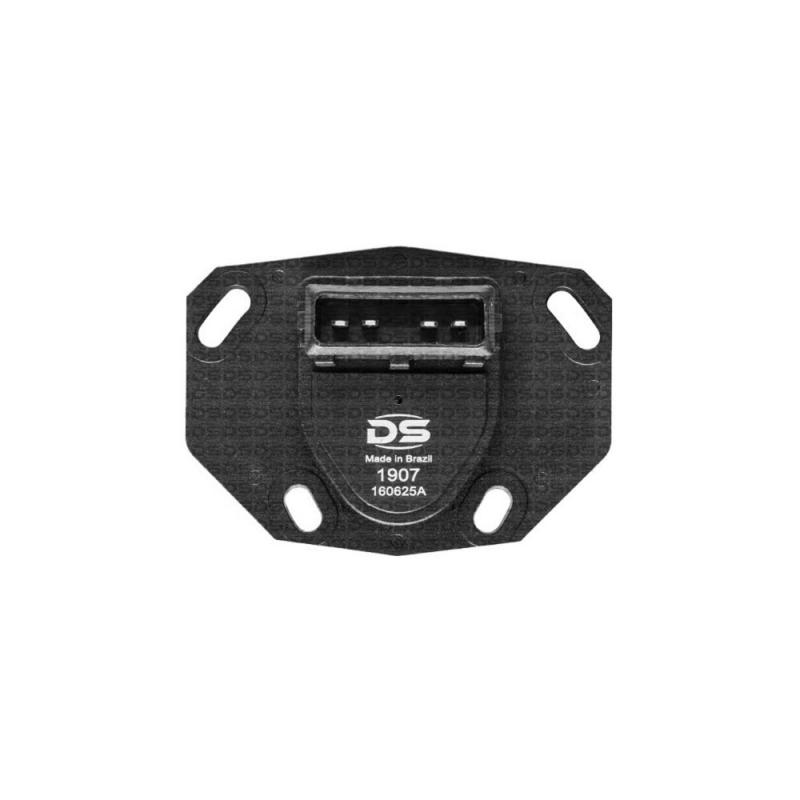

Throttle Position Sensor (TPS)

DS Code: 1907 | Other Codes: 9946344, 051133028R, 708406, 7265, 3437020406, 3437020417, ESB406, GS7306, 11407, 5701

Manufacturer Model Engine Fuel Year Note
Fiat Fiorino 1.6 4Cil 8v Gasoline 95 > 01 SPI
Fiat Tempra 1.6 4Cil 8v Gasoline 93 > 96 SPI
Fiat Tipo 1.6 4Cil 8v Gasoline 92 > SPI
Peugeot 106 1.0 4Cil 8v Gasoline 91 > 05
Renault Clio 1.6 4Cil 8v Gasoline 95 > 99
Renault R19 1.6 4Cil 8v Gasoline 95 > 99
Renault R19 1.8 4Cil 8v Gasoline 95 > 99
Seat Cordoba 1.8 4Cil 16v Gasoline 95 > 02
Seat Ibiza 1.8 4Cil 16v Gasoline 95 > 99
Volkswagen Golf 1.8 4Cil 8v Gasoline 94 > 96

Details Throttle Position Sensor (TPS)

With a new technology, the DS throttle position sensor has an electronic sensor that exempts the product from corrosion, wear, and misuse problems, ensuring greater accuracy, repeatability, and durability.

The Throttle Position Sensor (TPS) is used to monitor the accelerator position in an internal combustion engine.

This sensor is usually connected to the throttle axis to directly control the position of the accelerator throttle valve.

Through the TPS, the Electronic Control Unit (ECU) obtains instantaneous information about the throttle position, which allows the central to identify the power required by the driver.

This information will be used to help the calculation of the injection timing and ignition advance, among other operating strategies.
