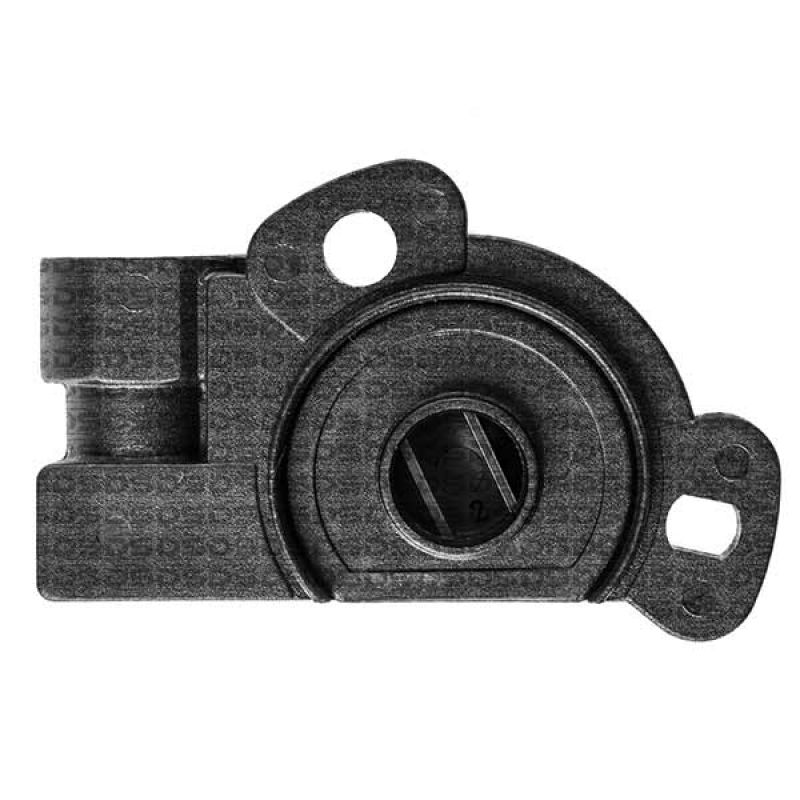

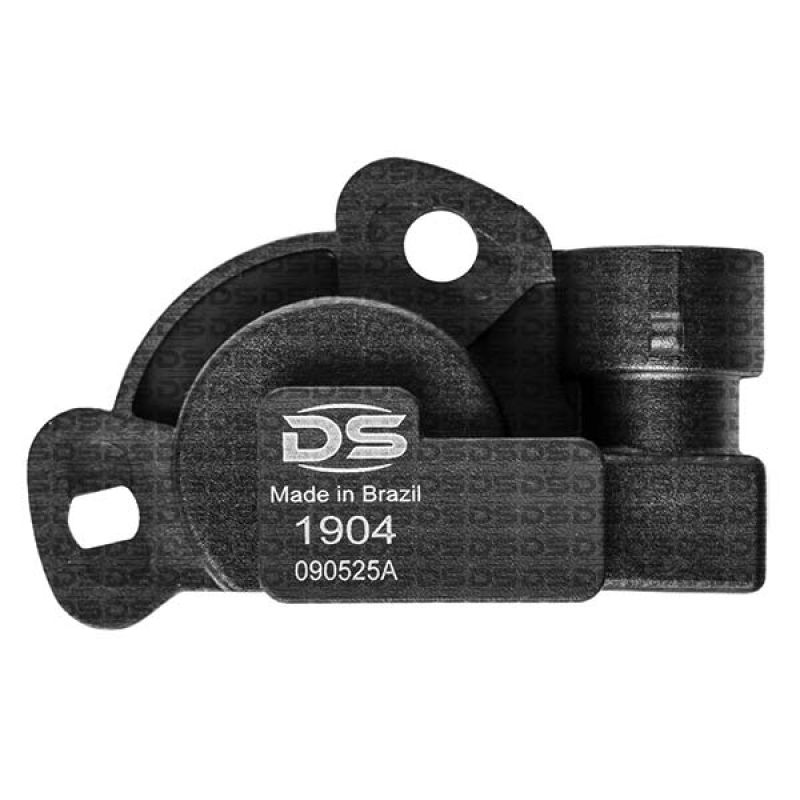

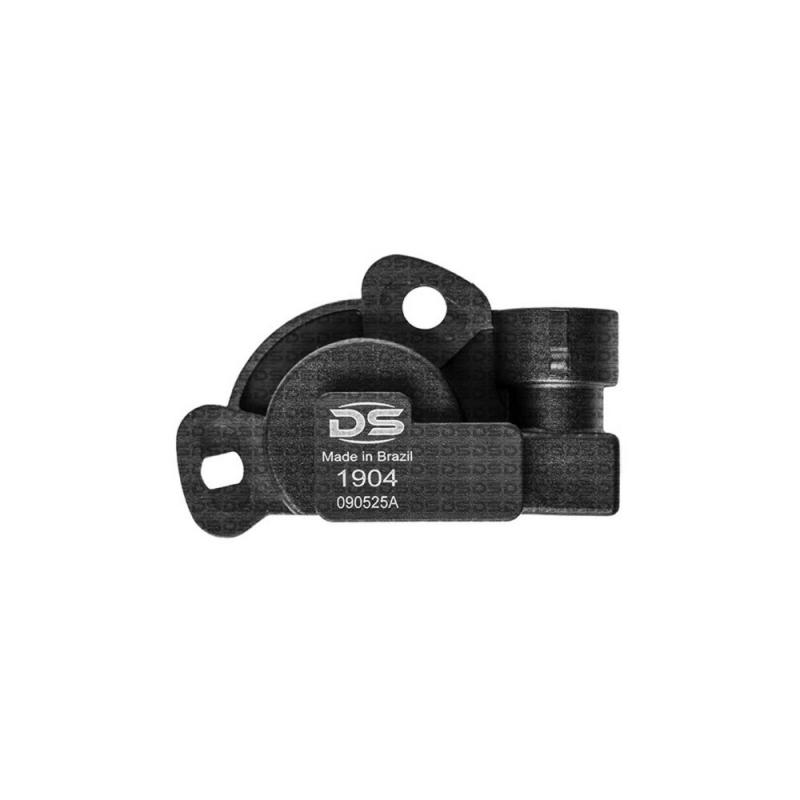

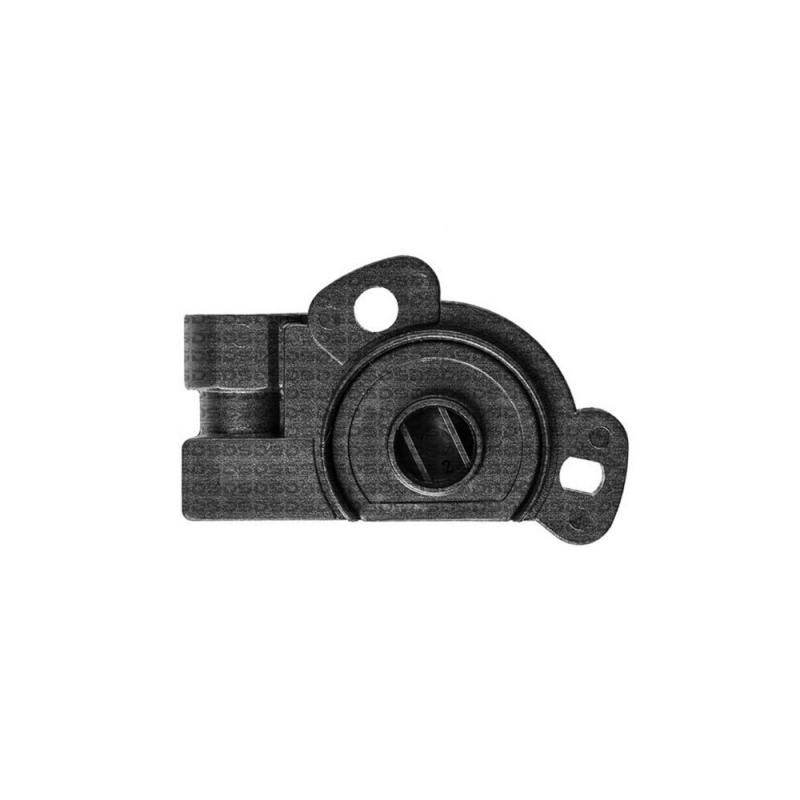

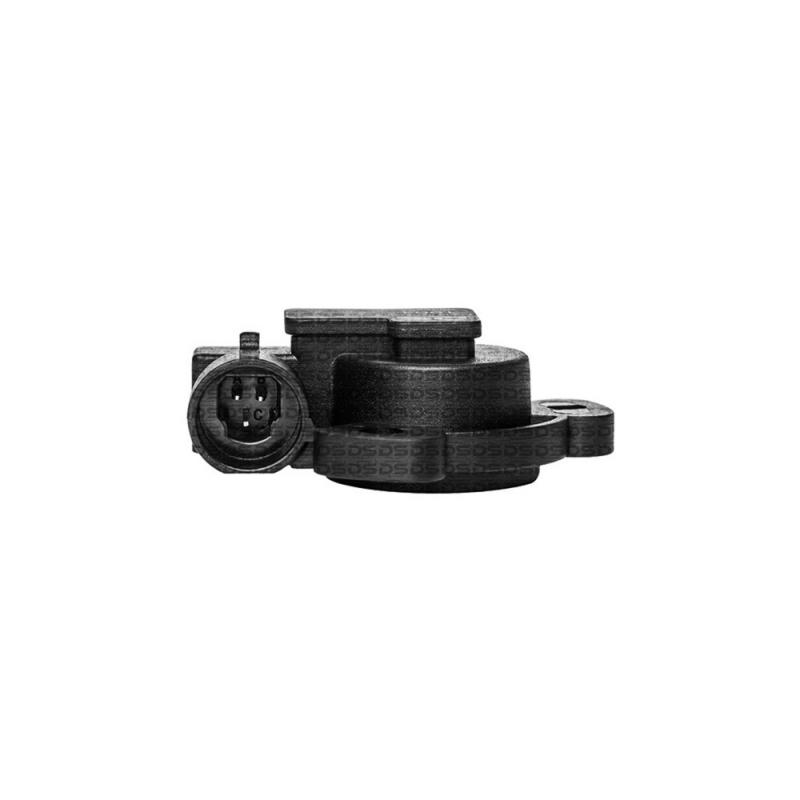

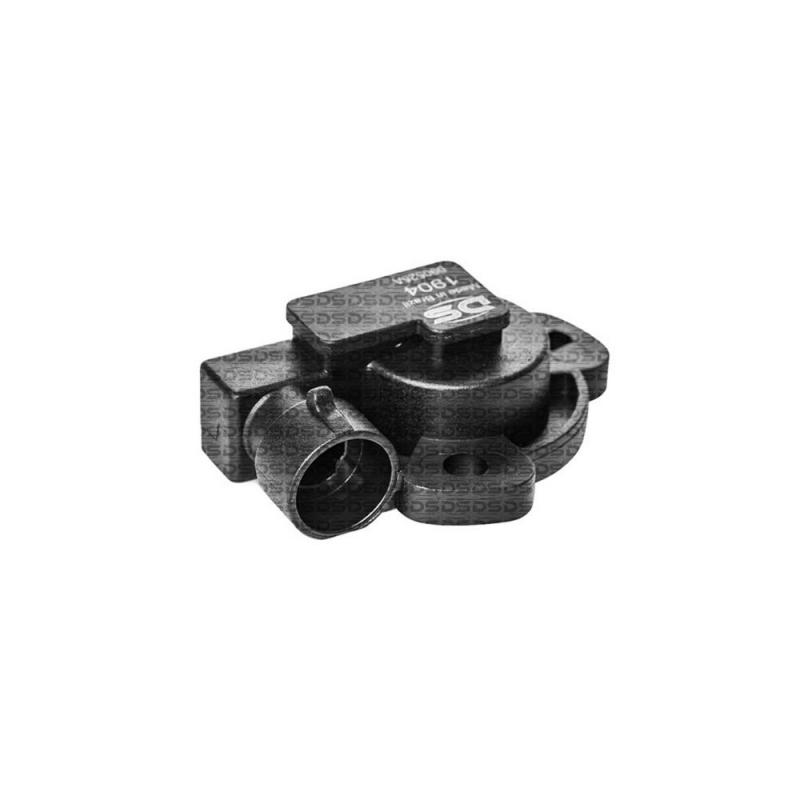

Throttle Position Sensor (TPS)

DS Code:1904


DPL:708102
Delphi:ICD00123
E-Klass:ESB123
GAUSS:GS7372
GM:17097102
GM:25178872
LP:706681703
MAXAUTO:5703
MAXAUTO:MAX060002
MTE:7231
Vogel:11123

Manufacturer	Model	Engine	Fuel	Year
GM	Celta	1.0 4Cil 8v	Gasoline	01 > 06
GM	Celta	1.4 4Cil 8v	Gasoline	01 > 06
GM	Corsa	1.0 4Cil 16v	Gasoline	99 >
GM	Corsa	1.0 4Cil 8v	Flex	05 >
GM	Corsa	1.0 4Cil 8v	Gasoline	96 >
GM	Corsa	1.6 4Cil 16v	Gasoline	96 >
GM	Corsa	1.6 4Cil 8v	Gasoline	96 > 06
GM	Omega	2.2 4Cil 8v	Gasoline	97 > 00
GM	Suprema	2.2 4Cil 8v	Gasoline	97 > 98

Details Throttle Position Sensor (TPS)

With a new technology, the DS throttle position sensor has an electronic sensor that exempts the product from corrosion, wear, and misuse problems, ensuring greater accuracy, repeatability, and durability.

The Throttle Position Sensor (TPS) is used to monitor the accelerator position in an internal combustion engine.

This sensor is usually connected to the throttle axis to directly control the position of the accelerator throttle valve.

Through the TPS, the Electronic Control Unit (ECU) obtains instantaneous information about the throttle position, which allows the central to identify the power required by the driver.

This information will be used to help the calculation of the injection timing and ignition advance, among other operating strategies.
