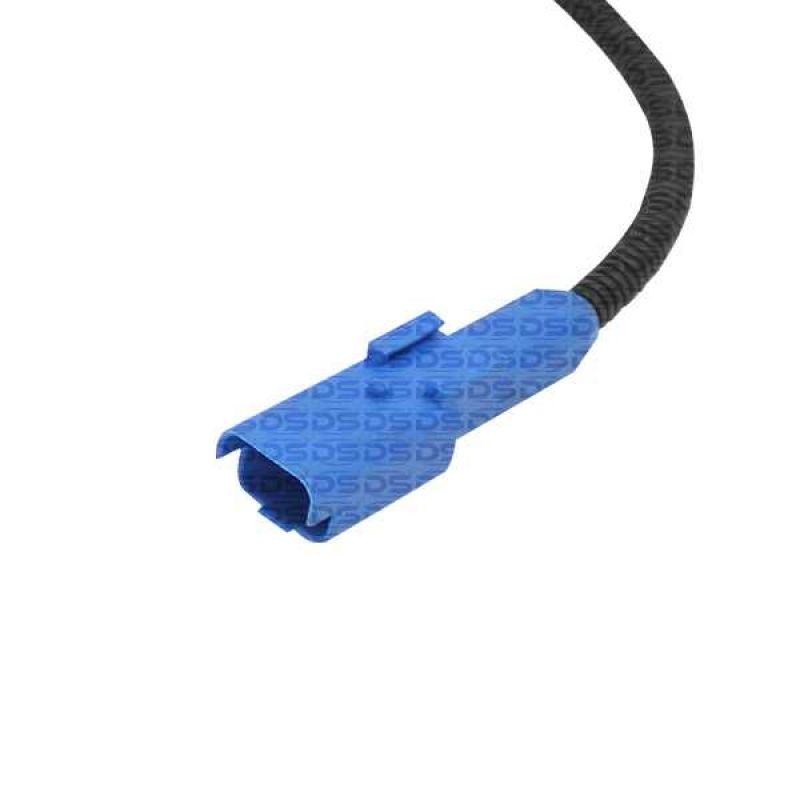

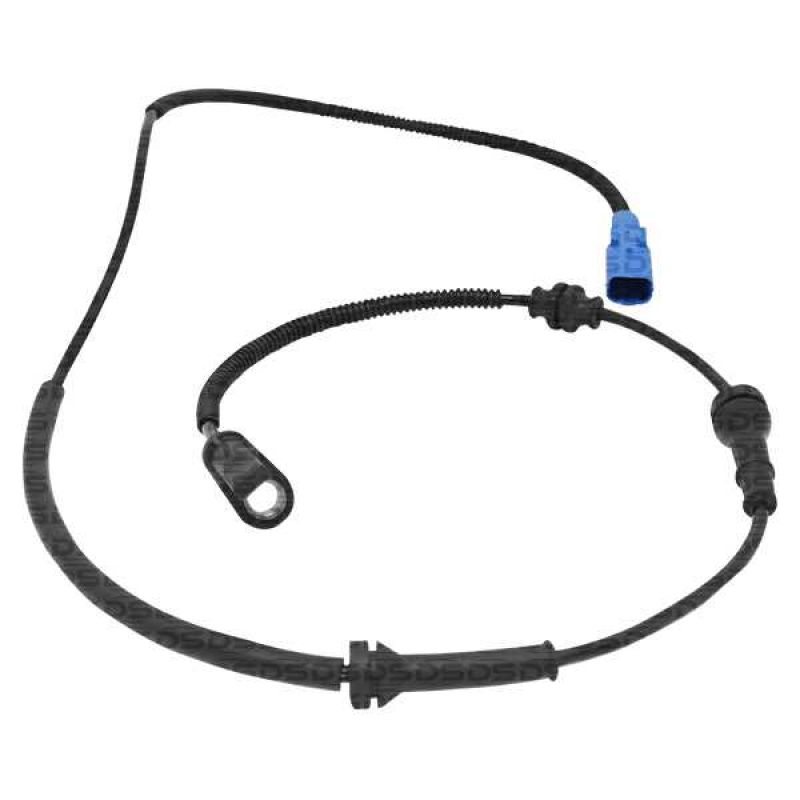

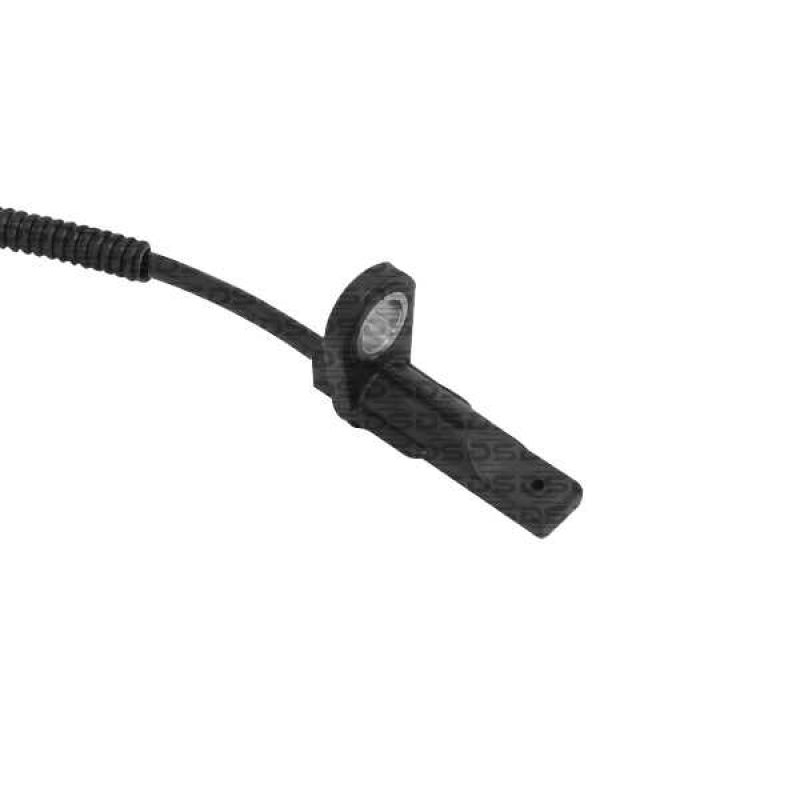

ABS Sensor

DS Code:30052DDDE
Ways: 02 | Cable length (cm): 116 | Technology: Hall


Bosch:0986594597
CITROËN:4545J9
CITROËN:9665455580
CITROËN:9655067880
DPL:864597
E-Klass:ESA112
FAE:78313
GAUSS:GS2084
IMA:AL2023
MAXAUTO:120053
Marelli:ABSMM520DDDE
PEUGEOT:4545J9
PEUGEOT:9665455580
PEUGEOT:9655067880
SENSORAUTO:SVR1303
TSA:T130034

Manufacturer	Model	Engine	Fuel	Year	Note
Citroën	Aircross	1.5 4Cil 16v	Flex	15 > 17
Citroën	Aircross	1.6 4Cil 16v	Flex	10 > 20
Citroën	C3 Picasso	1.5 4Cil 8v	Flex	12 > 15
Citroën	C3 Picasso	1.6 4Cil 16v	Flex	11 > 15
Citroën	C3	1.2 3Cil 12v	Flex	16 > 21
Citroën	C3	1.5 4Cil 8v	Flex	12 > 16
Citroën	C3	1.6 4Cil 16v	Flex	12 > 21
Citroën	C4 Cactus	1.6 4Cil 16v	Flex	18 >
Citroën	C4 Cactus	1.6 4Cil 16v	Flex	18 >	Turbo THP
Citroën	DS3	1.6 4Cil 16v	Gasoline	12 > 15	THP
Peugeot	2008	1.6 4Cil 16v	Flex	15 >
Peugeot	2008	1.6 4Cil 16v	Flex	15 >	Turbo THP
Peugeot	207	1.4 4Cil 8v	Flex	08 > 14
Peugeot	208 GT	1.6 4Cil 16v	Flex	16 > 20	Turbo THP
Peugeot	208	1.2 3Cil 12v	Flex	16 > 20
Peugeot	208	1.5 4Cil 8v	Flex	13 > 16
Peugeot	208	1.6 4Cil 16v	Flex	13 > 20

Details ABS Sensor

The ABS sensor, also known as wheel rotation sensor or wheel speed sensor, has the function of capturing, through a magnetized or toothed sound wheel, the speed and slip information of each wheel. This information is then transmitted to the ABS electronic control unit, which evaluates the signals and calculates the allowable slip for each wheel for optimal braking.

ABS sensors can have either an inductive operating principle or a Hall effect.
