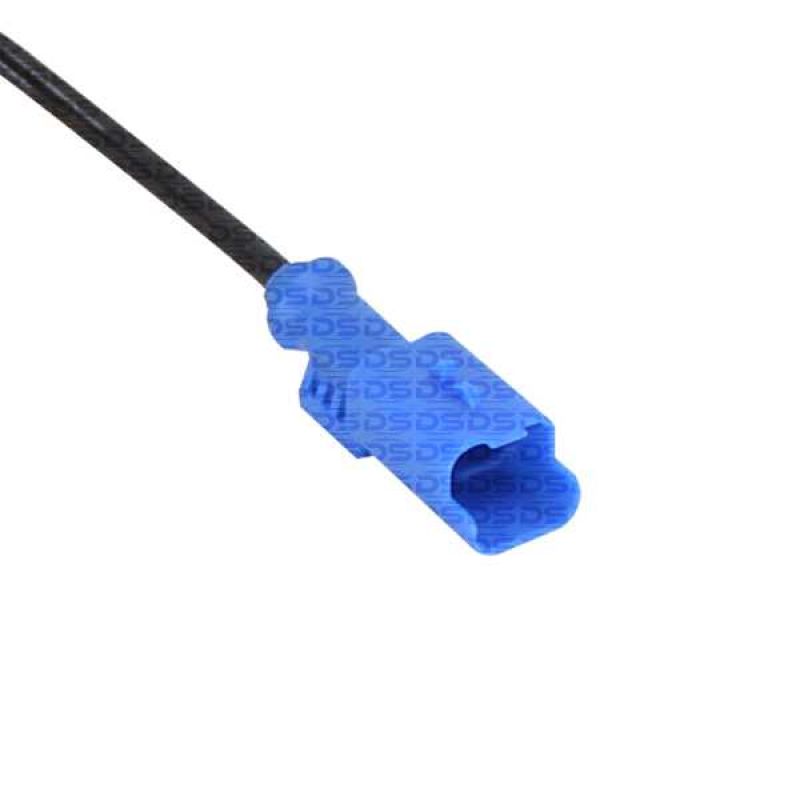

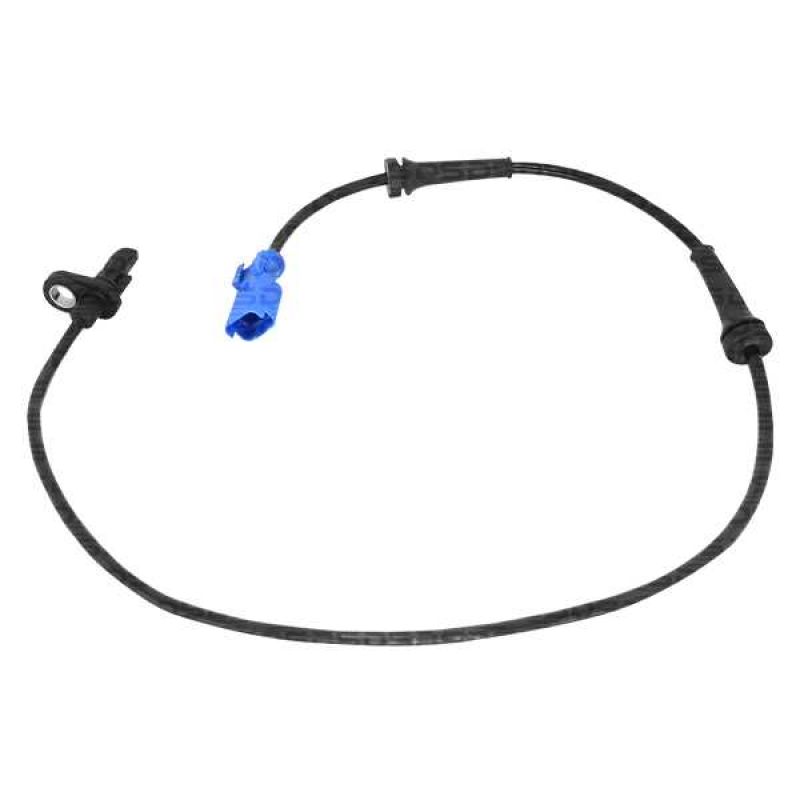

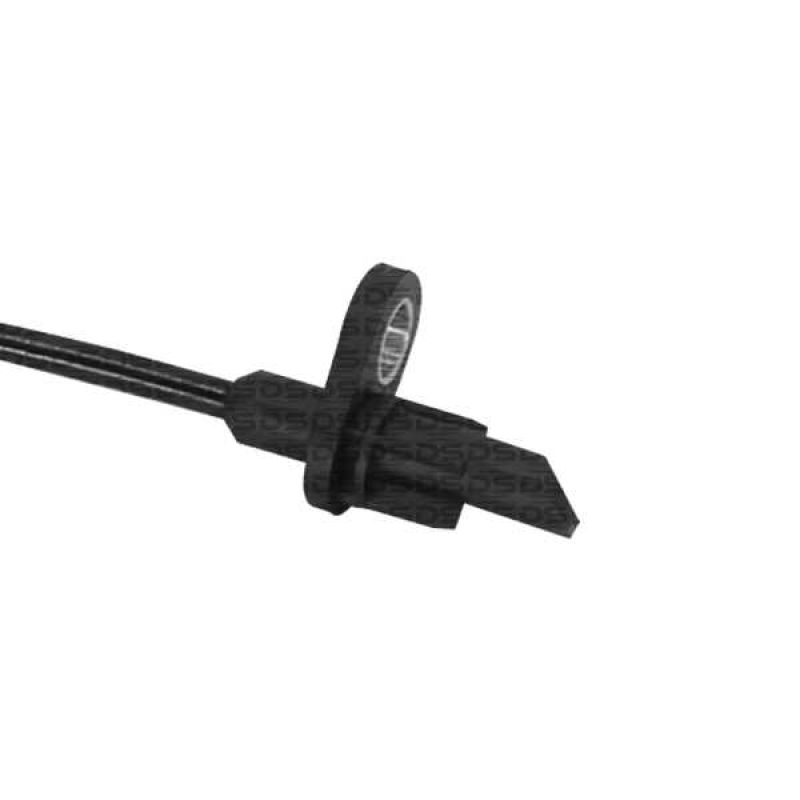

ABS Sensor

DS Code:30052TDTE
Ways: 02 | Cable length (cm): 78 | Technology: Hall


Bosch:0265007707
Bosch:0265009501
Bosch:0265008485
CITROËN:9805066080
CITROËN:4545J8
CITROËN:9665592380
CITROËN:9805066580
E-Klass:ESA111
EURO:8283
FAE:78333
GAUSS:GS2085
IMA:AL2050
MAXAUTO:120067
Marelli:ABSMM520TDTE
PEUGEOT:9665592380
PEUGEOT:9805066080
PEUGEOT:9805066580
PEUGEOT:4545J8
TSA:T130036

Manufacturer	Model	Engine	Fuel	Year	Note
Citroën	Aircross	1.5 4Cil 8v	Flex	15 > 17
Citroën	Aircross	1.6 4Cil 16v	Flex	12 > 20
Citroën	C3 Picasso	1.5 4Cil 8v	Flex	12 > 15
Citroën	C3 Picasso	1.6 4Cil 16v	Flex	12 > 15
Citroën	C3	1.2 3Cil 12v	Flex	16 > 21
Citroën	C3	1.5 4Cil 8v	Flex	12 > 16
Citroën	C3	1.6 4Cil 16v	Flex	12 > 21
Citroën	C4 Cactus	1.6 4Cil 16v	Flex	18 >
Citroën	C4 Cactus	1.6 4Cil 16v	Flex	18 >	Turbo THP
Peugeot	2008	1.6 4Cil 16v	Flex	15 >	Turbo THP
Peugeot	207	1.4 4Cil 8v	Flex	08 > 14
Peugeot	207	1.6 4Cil 16v	Flex	08 > 13
Peugeot	208 GT	1.6 4Cil 16v	Flex	13 > 20	Turbo THP
Peugeot	208	1.2 3Cil 12v	Flex	16 > 20
Peugeot	208	1.5 4Cil 8v	Flex	13 > 16
Peugeot	208	1.6 4Cil 16v	Flex	13 > 20

Details ABS Sensor

The ABS sensor, also known as wheel rotation sensor or wheel speed sensor, has the function of capturing, through a magnetized or toothed sound wheel, the speed and slip information of each wheel. This information is then transmitted to the ABS electronic control unit, which evaluates the signals and calculates the allowable slip for each wheel for optimal braking.

ABS sensors can have either an inductive operating principle or a Hall effect.
