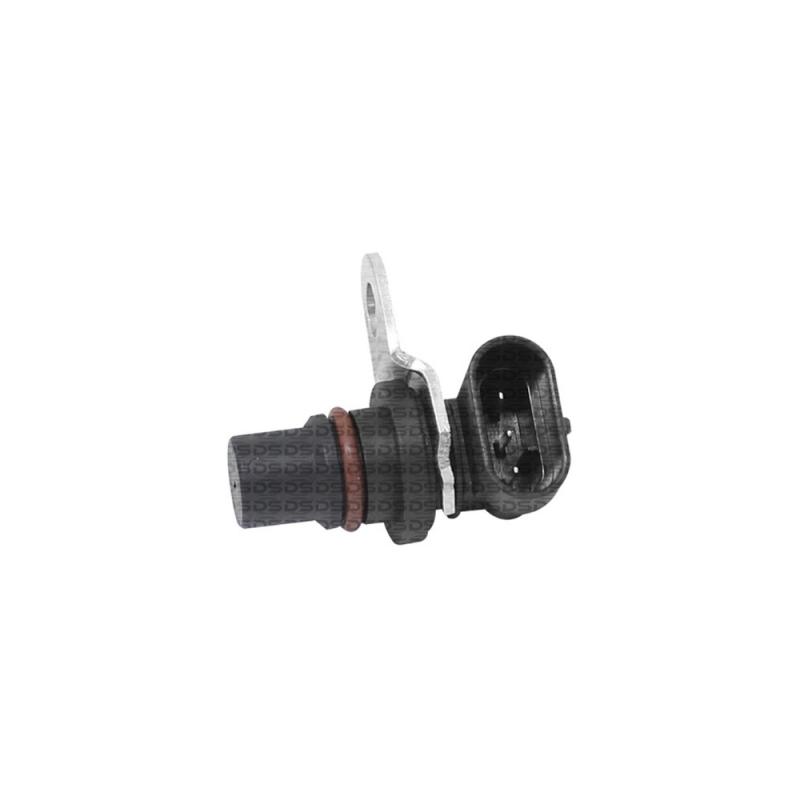

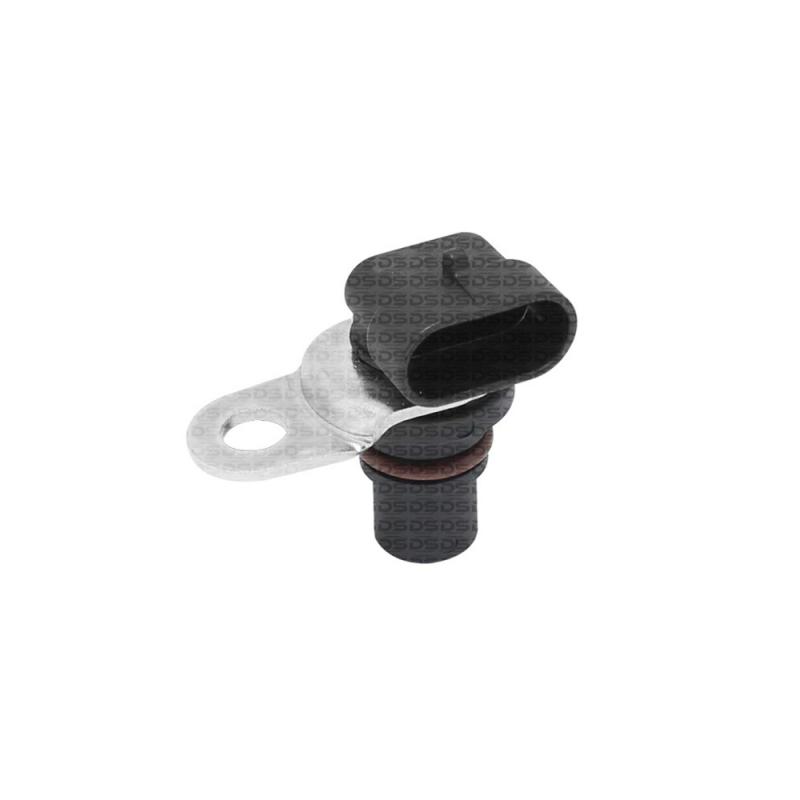

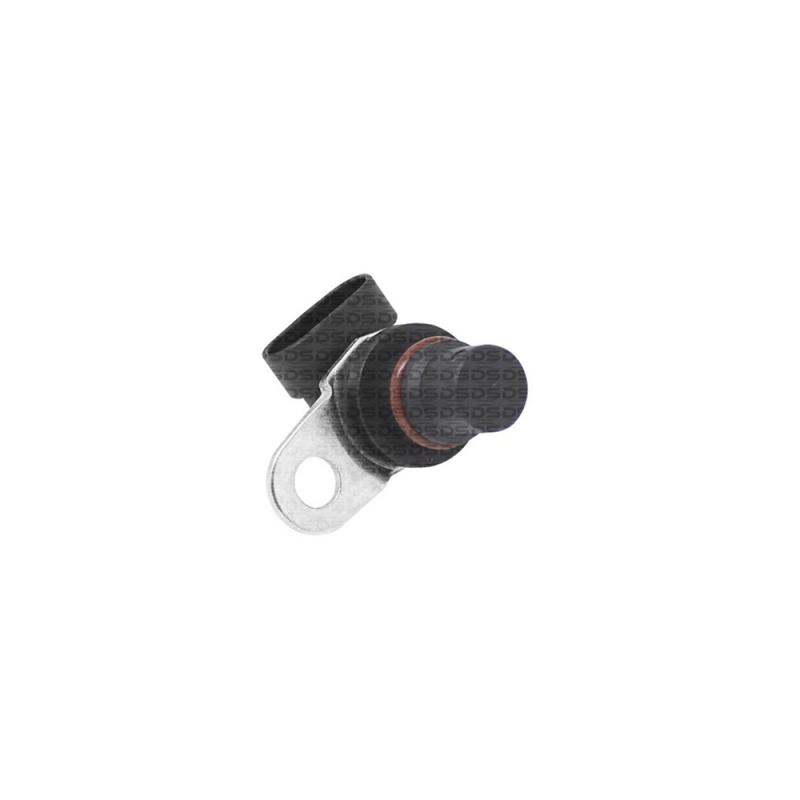

Camshaft Position Sensor (CMP)
DS Code:1866
Ways: 03 | Technology: Hall
| Manufacturer | Model | Engine | Fuel | Year | Note |
|---|---|---|---|---|---|
| GM | Celta | 1.0 4Cil 8v | Flex | 09 > 16 | |
| GM | Classic | 1.0 4Cil 8v | Flex | 09 > 16 | |
| GM | Corsa | 1.4 4Cil 8v | Flex | 09 > 12 | |
| GM | Meriva | 1.4 4Cil 8v | Flex | 09 > 12 | |
| GM | Meriva | 1.8 4Cil 8v | Flex | 09 > 12 | |
| GM | Montana | 1.4 4Cil 8v | Flex | 09 > 10 | |
| GM | Montana | 1.8 4Cil 8v | Flex | 09 > 10 | |
| GM | Prisma | 1.0 4Cil 8v | Flex | 09 > 12 | |
| GM | Prisma | 1.4 4Cil 8v | Flex | 09 > 12 | |
| JAC | J6 | 2.0 4Cil 16v | Gasoline | 09 > 12 |
Details Camshaft Position Sensor (CMP)
The Camshaft Position Sensor (CMP), together with the RPM sensor, informs the ECU the phase of the engine cylinders. This allows for more precise control of the injection and ignition system. Its operation is essential for the vehicle's good performance and fuel consumption.
The equipment is located on top of the engine, close to the camshaft.
