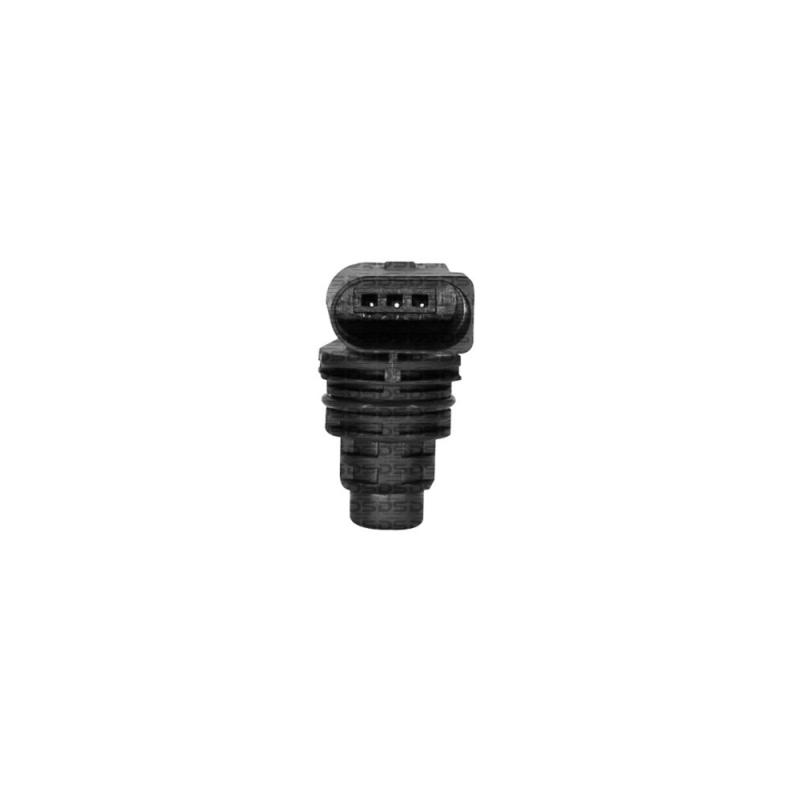

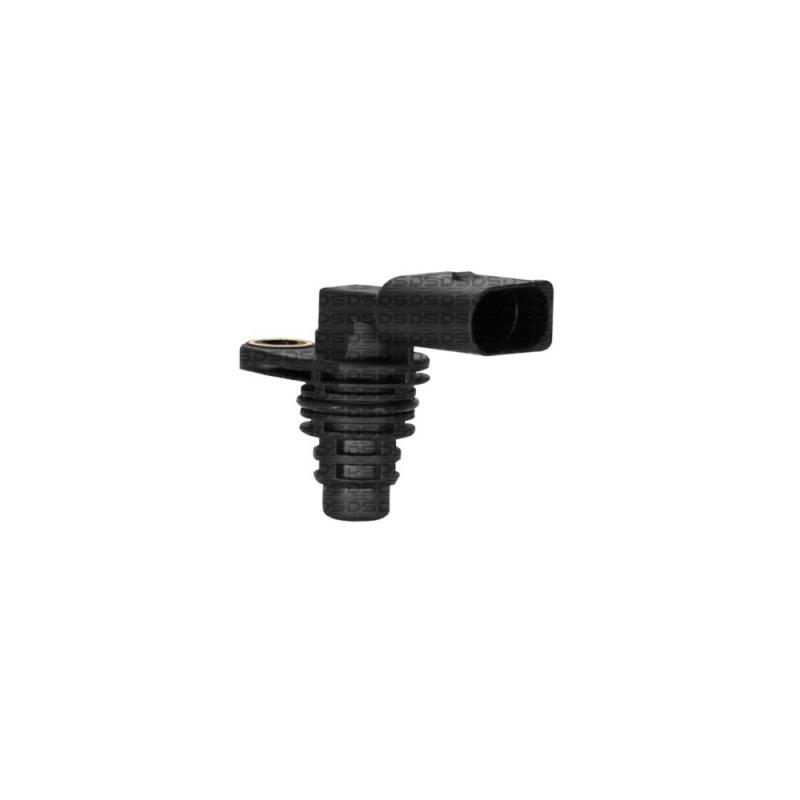

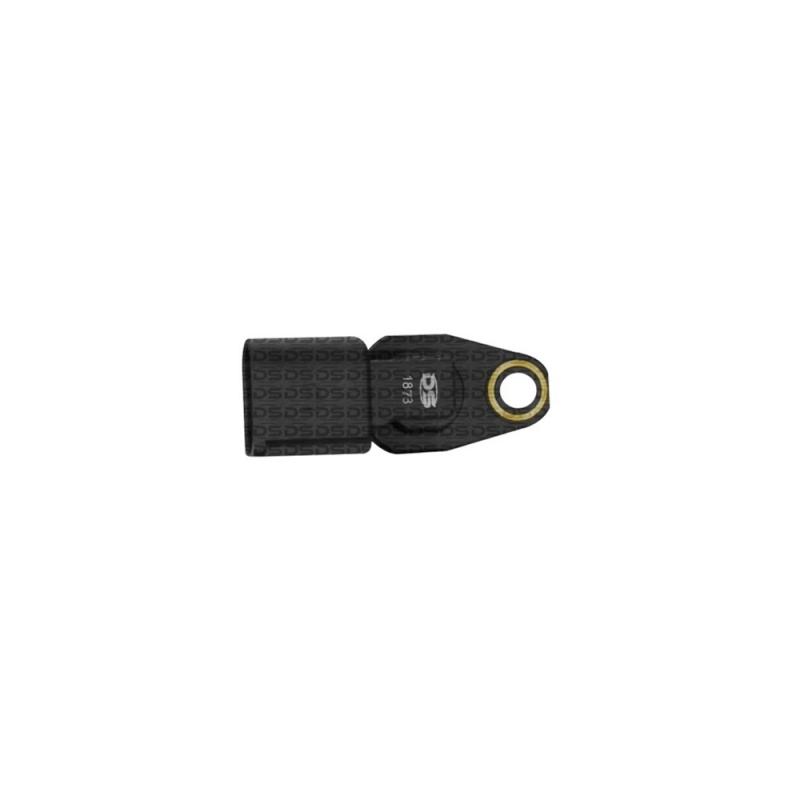

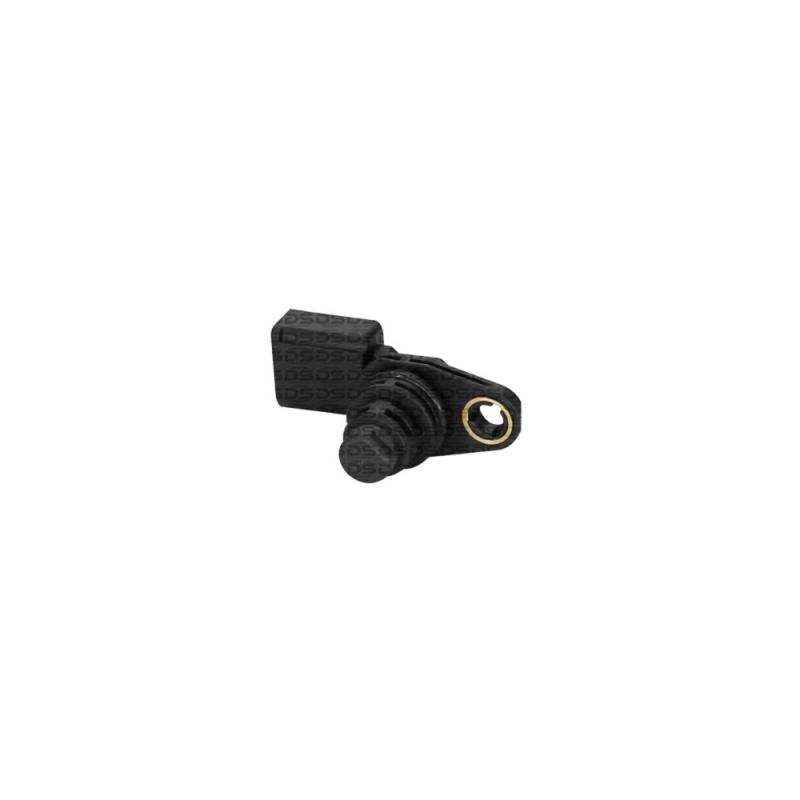

Camshaft Position Sensor (CMP)
DS Code:1873
Technology: Hall | Ways: 03
| Manufacturer | Model | Engine | Fuel | Year | Note |
|---|---|---|---|---|---|
| Volkswagen | CC | 3.6 V6 24v | Gasoline | 11 > 16 | Motor BWS D34 |
| Volkswagen | CrossFox | 1.6 4Cil 8v | Flex | 05 > 14 | Motor EA111 |
| Volkswagen | Fox | 1.0 4Cil 8v | Gasoline | 03 > 05 | Motor EA111 |
| Volkswagen | Fox | 1.0 4Cil 8v | Flex | 05 > 13 | Motor EA111 |
| Volkswagen | Fox | 1.6 4Cil 8v | Gasoline | 03 > 04 | Motor EA111 |
| Volkswagen | Fox | 1.6 4Cil 8v | Flex | 05 > 17 | Motor EA111 |
| Volkswagen | Gol G3 | 1.0 4Cil 8v | Flex | 05 > 06 | Motor EA111 |
| Volkswagen | Gol G3 | 1.6 4Cil 8v | Flex | 03 > 06 | Motor EA111 |
| Volkswagen | Gol G4 | 1.0 4Cil 8v | Flex | 06 > 08 | Motor EA111 |
| Volkswagen | Gol G4 | 1.6 4Cil 8v | Flex | 06 > 08 | Motor EA111 |
| Volkswagen | Gol G4 | 1.8 4Cil 8v | Flex | 05 > 08 | Motor EA111 |
| Volkswagen | Gol G5 | 1.0 4Cil 8v | Flex | 08 > 12 | Motor EA111 |
| Volkswagen | Gol G5 | 1.6 4Cil 8v | Flex | 08 > 12 | Motor EA111 |
| Volkswagen | Gol G6 | 1.0 4Cil 8v | Flex | 12 > 16 | Motor EA111 |
| Volkswagen | Gol G6 | 1.6 4Cil 8v | Flex | 12 > 16 | Motor EA111 |
| Volkswagen | Golf | 1.6 4Cil 8v | Gasoline | 01 > 07 | Motor EA111 |
| Volkswagen | Golf | 1.6 4Cil 8v | Ethanol | 06 > 13 | Motor EA111 |
| Volkswagen | Kombi | 1.4 4Cil 8v | Flex | 06 > 14 | Motor EA111 |
| Volkswagen | Parati | 1.6 4Cil 8v | Flex | 03 > 12 | |
| Volkswagen | Polo | 1.6 4Cil 8v | Gasoline | 02 > 06 | Motor EA111 |
| Volkswagen | Polo | 1.6 4Cil 8v | Flex | 06 > 14 | Motor EA111 |
| Volkswagen | Saveiro G3 | 1.6 4Cil 8v | Flex | 03 > 05 | |
| Volkswagen | Saveiro G3 | 1.8 4Cil 8v | Flex | 05 > 05 | |
| Volkswagen | Saveiro G4 | 1.6 4Cil 8v | Flex | 05 > 09 | |
| Volkswagen | Saveiro G4 | 1.8 4Cil 8v | Flex | 05 > 09 | |
| Volkswagen | Saveiro G5 | 1.6 4Cil 8v | Flex | 09 > 14 | Motor EA111 |
| Volkswagen | Saveiro G6 | 1.6 4Cil 8v | Flex | 14 > 16 | Motor EA111 |
| Volkswagen | SpaceCross | 1.6 4Cil 8v | Flex | 11 > 14 | Motor EA111 |
| Volkswagen | SpaceFox | 1.6 4Cil 8v | Flex | 06 > 14 | Motor EA111 |
| Volkswagen | Voyage | 1.0 4Cil 8v | Flex | 08 > 16 | Motor EA111 |
| Volkswagen | Voyage | 1.6 4Cil 8v | Flex | 08 > 18 |
Details Camshaft Position Sensor (CMP)
The Camshaft Position Sensor (CMP), together with the RPM sensor, informs the ECU the phase of the engine cylinders. This allows for more precise control of the injection and ignition system. Its operation is essential for the vehicle's good performance and fuel consumption.
The equipment is located on top of the engine, close to the camshaft.
