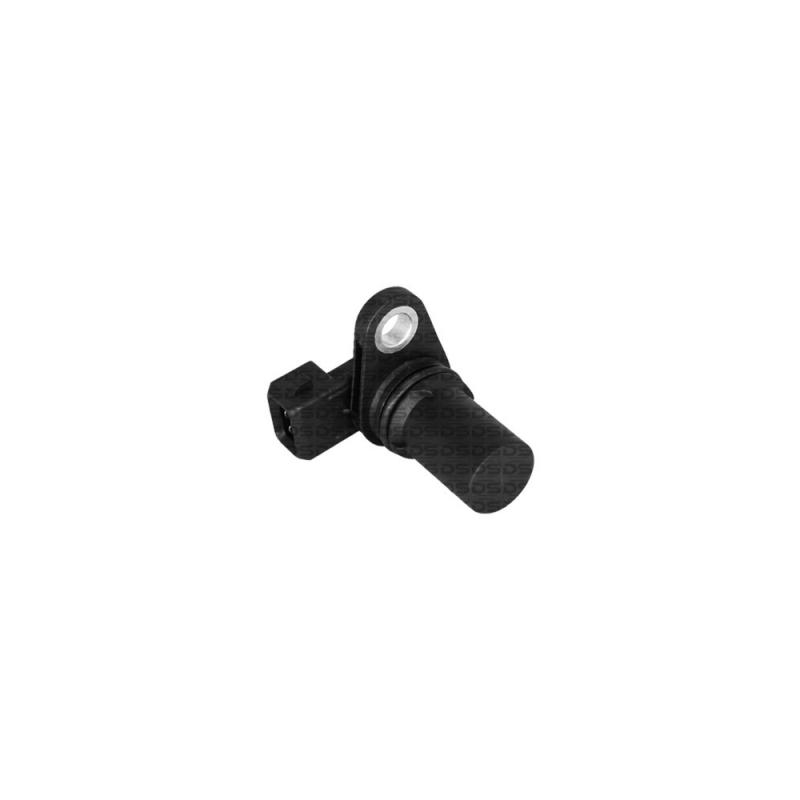

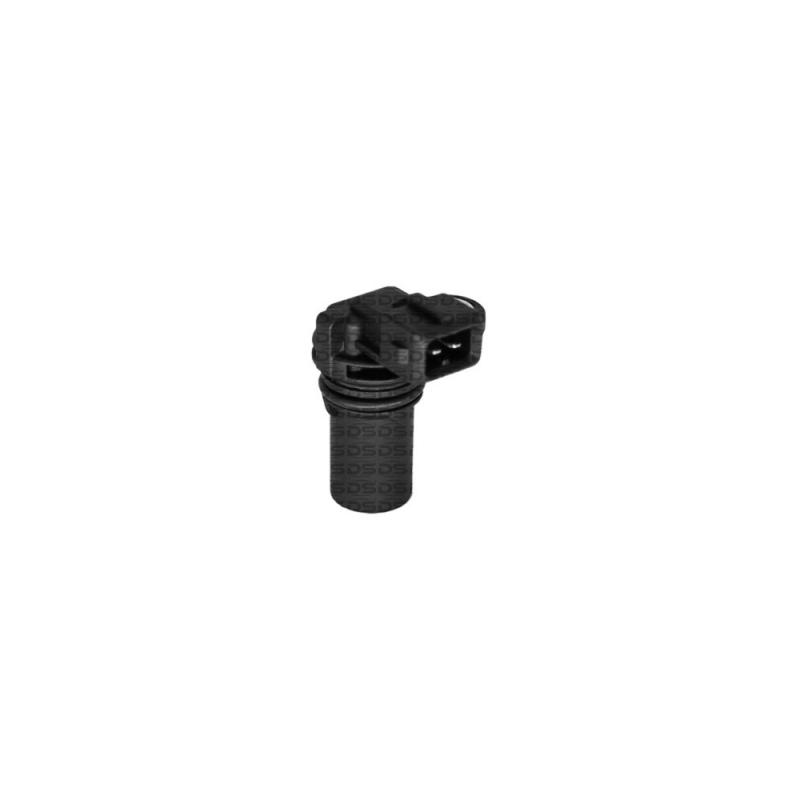

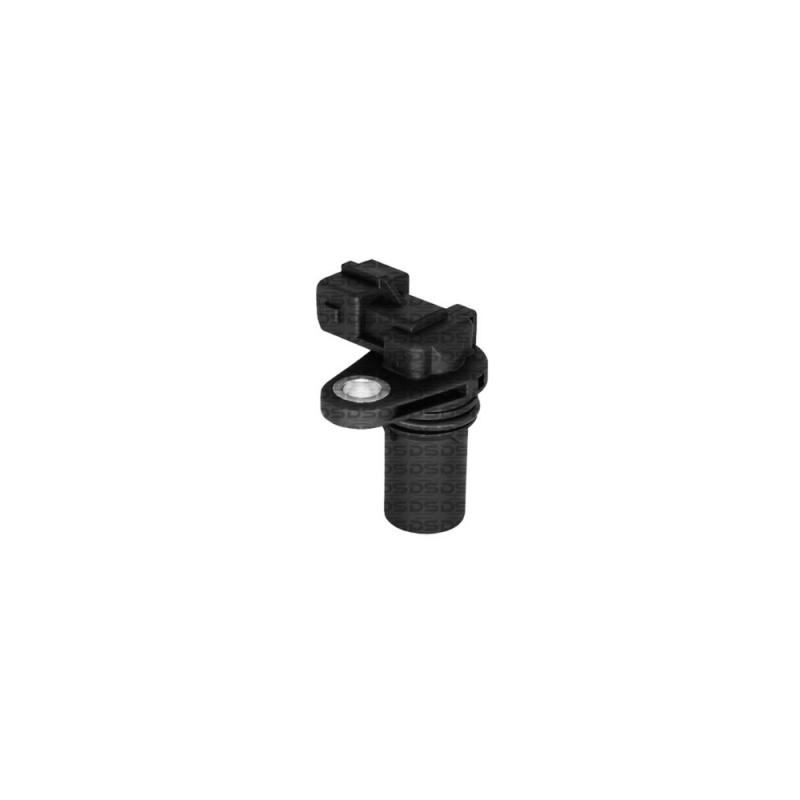

Camshaft Position Sensor (CMP)

DS Code:1876
Ways: 02 | Technology: Inductive


FORD:95BF12K073AB
GAUSS:GS9023
MTE:7050
TSA:T081008

Manufacturer	Model	Engine	Fuel	Year
Ford	Courier	1.3 4Cil 8v	Gasoline	97 >
Ford	Courier	1.4 4Cil 16v	Gasoline	97 >
Ford	Courier	1.6 4Cil 8v	Flex	07 > 13
Ford	Courier	1.6 4Cil 8v	Gasoline	99 >
Ford	Ecosport	1.0 4Cil 8v	Gasoline	03 > 04
Ford	Ecosport	1.6 4Cil 8v	Gasoline	03 > 04
Ford	Ecosport	2.0 4Cil 16v	Gasoline	03 > 04
Ford	Escort	1.6 4Cil 8v	Gasoline	00 > 03
Ford	Escort	1.8 4Cil 16v	Gasoline	97 > 03
Ford	Fiesta	1.0 4Cil 8v	Gasoline	00 > 04
Ford	Fiesta	1.0 4Cil 8v	Gasoline	96 >
Ford	Fiesta	1.3 4Cil 8v	Gasoline	96 >
Ford	Fiesta	1.4 4Cil 16v	Gasoline	96 >
Ford	Focus	1.6 4Cil 16v	Gasoline	00 > 04
Ford	Focus	1.6 4Cil 8v	Flex	07 > 09
Ford	Focus	1.6 4Cil 8v	Gasoline	04 >
Ford	Focus	2.0 4Cil 16v	Gasoline	00 >
Ford	Ka	1.0 4Cil 8v	Flex	00 > 07
Ford	Ka	1.0 4Cil 8v	Gasoline	97 >
Ford	Ka	1.3 4Cil 8v	Gasoline	97 > 98
Ford	Ka	1.8 4Cil 8v	Flex	01 > 07
Ford	Mondeo	1.8 4Cil 16v	Gasoline	94 > 01
Ford	Mondeo	2.0 4Cil 16v	Gasoline	94 > 01

Details Camshaft Position Sensor (CMP)

The Camshaft Position Sensor (CMP), together with the RPM sensor, informs the ECU the phase of the engine cylinders. This allows for more precise control of the injection and ignition system. Its operation is essential for the vehicle's good performance and fuel consumption.

The equipment is located on top of the engine, close to the camshaft.
