Electronic Injection Kits
DS Code:1246

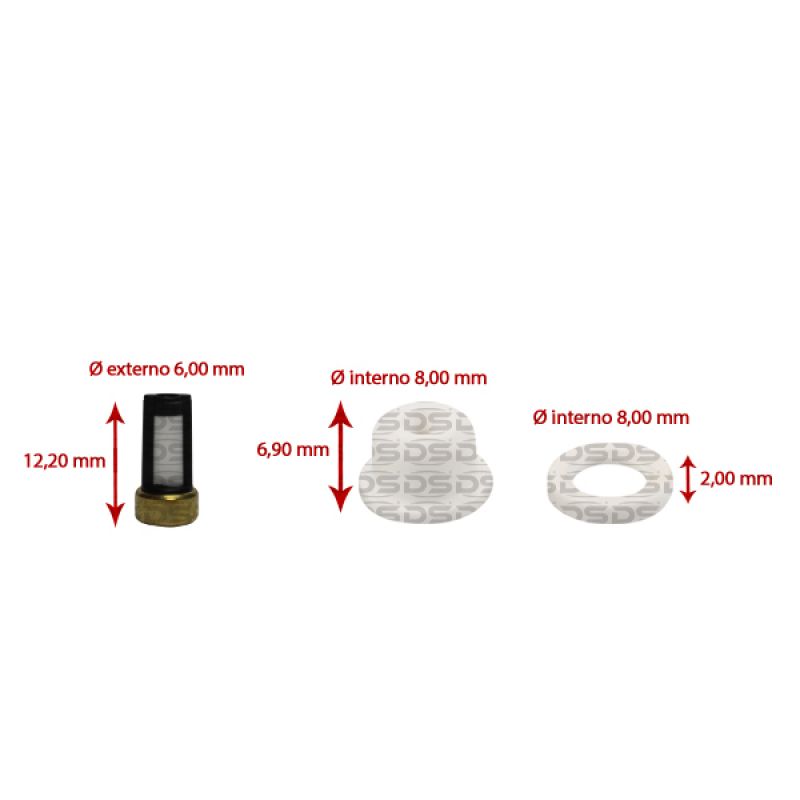

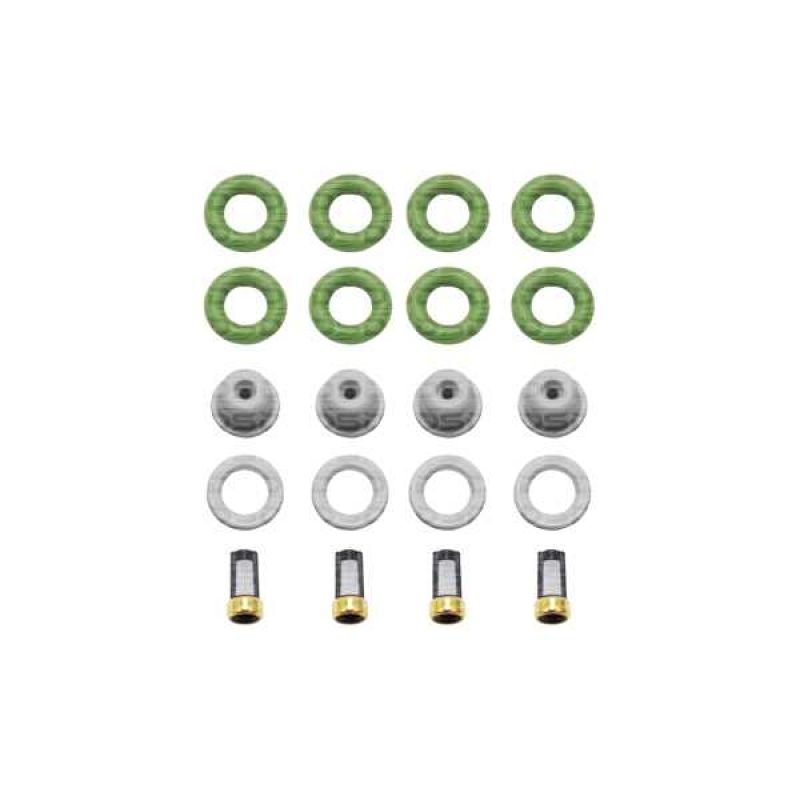

Filters: 04 | Ø External (mm): 6,00 | Height (mm): 12,20 | O'rings: 08 | Ø Internal (mm): 7,52 | Ø Section (mm): 3,53 | Rings: 04 | Ø Internal (mm): 8,00 | Height (mm): 2,00 | Tips: 04 | Ø Internal (mm): 8,00 | Height (mm): 6,90
| Manufacturer | Model | Engine | Fuel | Year | Note |
|---|---|---|---|---|---|
| Daewoo | Espero | 2.0 4Cil 16v | Gasoline | > 95 | |
| Fiat | Marea | 2.0 5Cil 20v | Gasoline | > 98 | |
| Fiat | Uno | 1.6 4Cil 8v | Gasoline | 93 > 94 | |
| Ford | Escort | 2.0 4Cil 8v | Gasoline | > 96 | |
| Ford | Royale | 2.0 4Cil 8v | Gasoline | > 93 | |
| Ford | Versailles | 2.0 4Cil 8v | Gasoline | > 93 | |
| GM | Ipanema | 2.0 4Cil 8v | Gasoline | > 97 | MPFI |
| GM | Kadett | 2.0 4Cil 8v | Gasoline | 92 > 98 | |
| GM | Monza | 2.0 4Cil 8v | Gasoline | 92 > 96 | |
| GM | Omega | 2.0 4Cil 8v | Gasoline | 92 > | |
| GM | Omega | 3.0 6Cil 12v | Gasoline | 92 > | |
| GM | Suprema | 2.0 4Cil 8v | Gasoline | 93 > 96 | |
| GM | Suprema | 3.0 6Cil 12v | Gasoline | 93 > 96 | |
| GM | Vectra | 2.0 4Cil 8v | Gasoline | > 97 | MPFI |
| Volkswagen | Santana | 2.0 4Cil 8v | Gasoline | 93 > 96 |
Details Electronic Injection Kits
The Electronic Injection Kit is intended to prevent clogging of the injection nozzle due to impurities and contaminations of the fuel.
Another function is to seal the fake air inlet of the intake manifold, preventing leaks.
When cleaning the injection nozzle, we should replace the filter(s) and rings, as they retain the impurities that decrease the volume of fuel injected, thus causing some irregularities as power loss, difficult start and irregular operation of the engine.

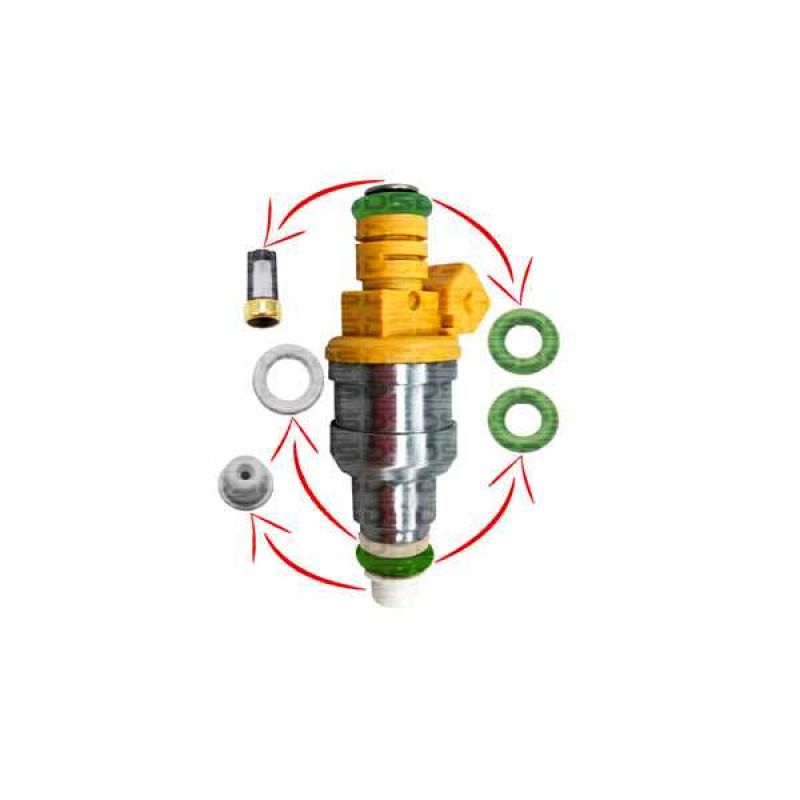

The repair parts, formed by an O-ring, a spacer, pintle cap, and filter, are assembled as an integral part of the injection nozzle.
