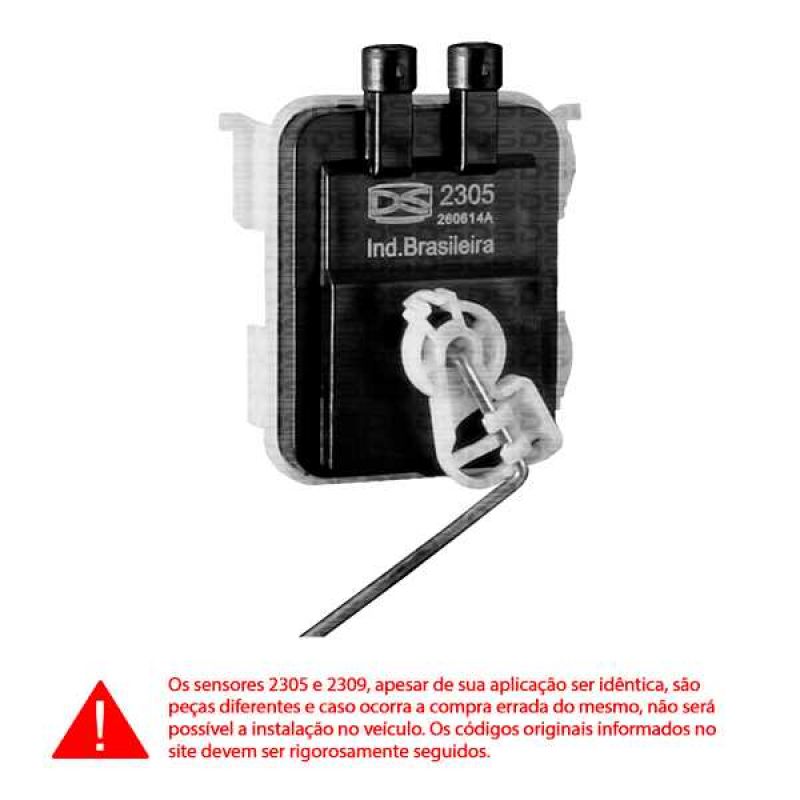

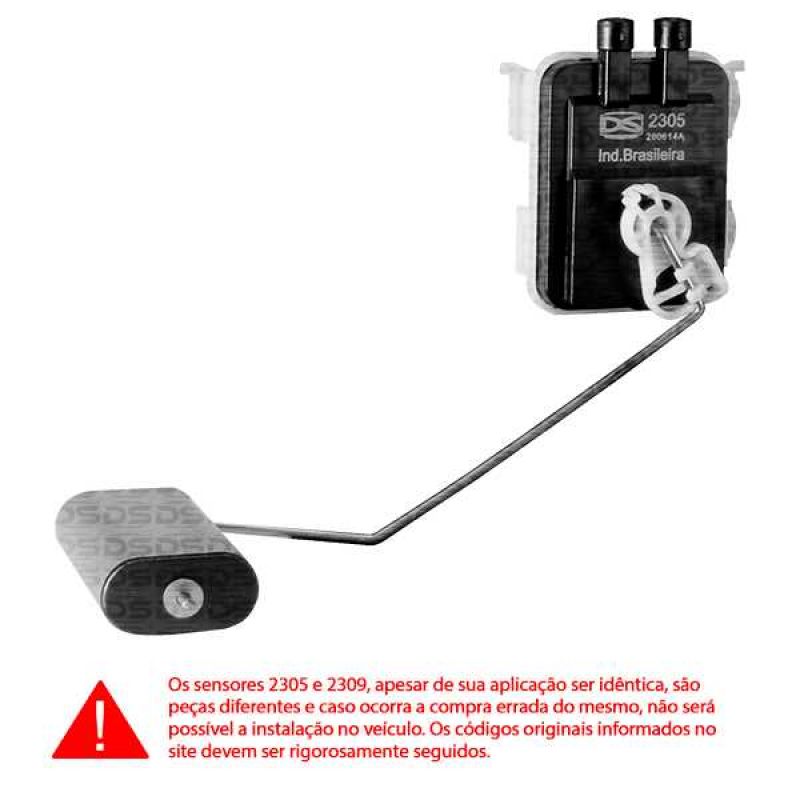

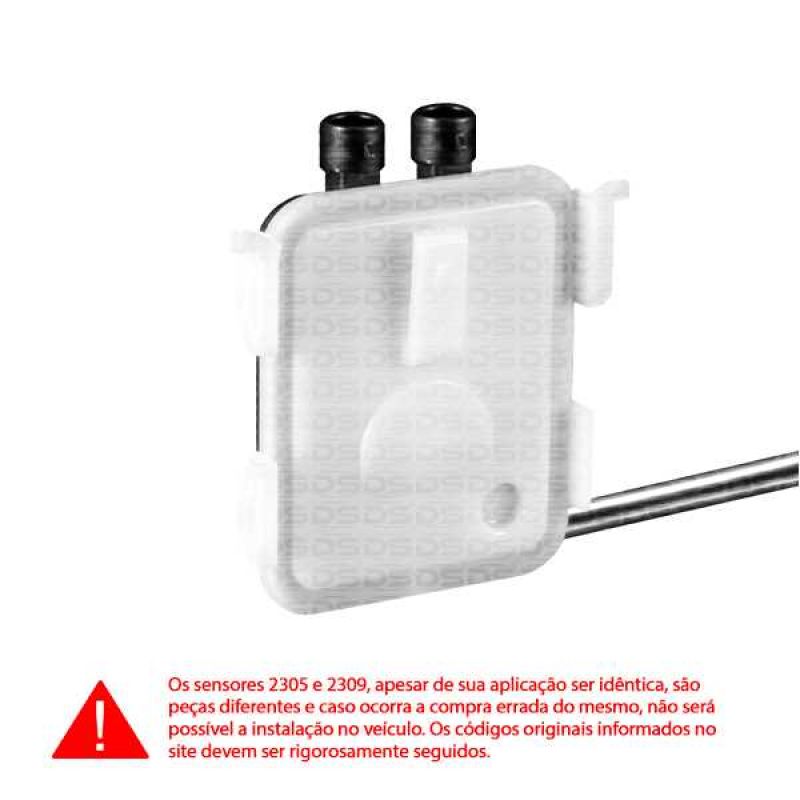

Fuel Level Sensor

DS Code:2305
Full: 63 ± 4 ohms | Empty: 363 ± 4 ohms | Note: Sensors 2305 and 2309, although their application is identical, are different parts and if the wrong purchase occurs, vehicle installation will not be possible. The original codes informed on the site must be strictly followed.

Bosch:51803238
Bosch:1587410778
Bosch:0580314421
Bosch:0580314420
Bosch:F000TE0088
Bosch:F000TE0087
Bosch:F000TE108H
FIAT:51851864
FIAT:7086498
FIAT:51851867
FIAT:51880111
FIAT:51803238
FIAT:7087195
INDEBRÁS:0114540PR
Marelli:MAM00788
TSA:T010130
VDO:221040061R
VP:8778
Manufacturer Model Engine Fuel Year Note
Fiat Palio Weekend 1.3 4Cil 8v Flex 05 > MPI
Fiat Palio Weekend 1.4 4Cil 8v Flex 06 > 08 MPI
Fiat Palio Weekend 1.8 4Cil 16v Flex 13 > 14 E.TorQ
Fiat Palio Weekend 1.8 4Cil 8v Flex 05 > 10 MPI
Fiat Strada 1.8 4Cil 16v Flex 11 > 13 E.TorQ

Details Fuel Level Sensor

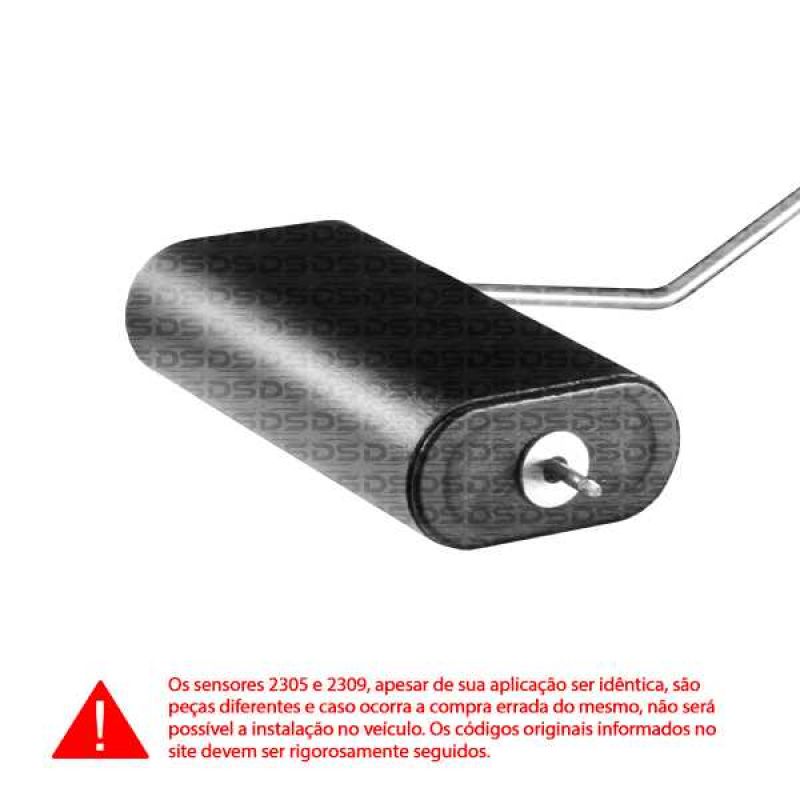

Located next to the fuel module, the sensor is basically composed of a float fixed to an articulate rod that moves its sliding contact. It measures the amount of fuel existing in the tank and informs the Electronic Control Unit (ECU), which, on its turn, controls the position of the fuel gauge indicator on the vehicle’s dashboard. In Flex-fuel vehicles, the fuel level sensor has a very important additional function, as it helps identify the type of fuel existing in the tank.
