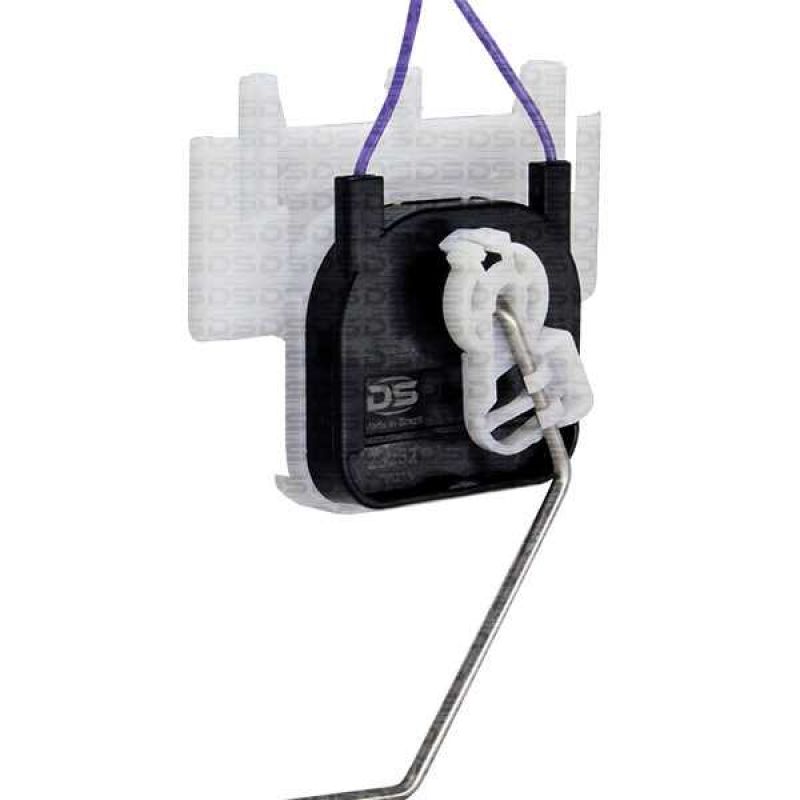

Fuel Level Sensor

DS Code:23232
Full: 35 ± 4 ohms | Empty: 305 ± 4 ohms

INDEBRÁS:0116460PR
JAC:2828353801
JAC:1106010U8160
TECHFORCE:0116460TF
TSA:T010280
VP:8161
Manufacturer Model Engine Fuel Year Note
JAC J3 1.4 4Cil 16v Gasoline 11 > 15
JAC J3 1.4 4Cil 16v Flex 13 > 15
JAC J3 1.5 4Cil 16v Flex 13 > 15

Details Fuel Level Sensor

Located next to the fuel module, the sensor is basically composed of a float fixed to an articulate rod that moves its sliding contact. It measures the amount of fuel existing in the tank and informs the Electronic Control Unit (ECU), which, on its turn, controls the position of the fuel gauge indicator on the vehicle’s dashboard. In Flex-fuel vehicles, the fuel level sensor has a very important additional function, as it helps identify the type of fuel existing in the tank.
