Fuel Level Sensor
DS Code:23241

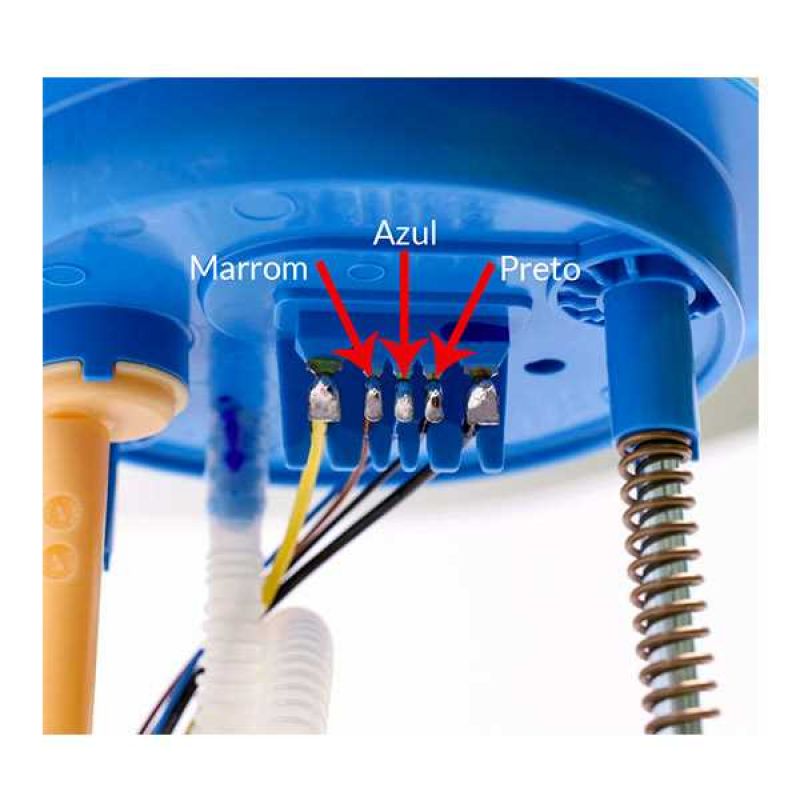

Note: Cheio: Preto + Marrom: 294 ± 4 ohms | Vazio: Preto + Marrom: 54 ± 4 ohms | Cheio: Preto + Azul: 49 ± 4 ohms | Vazio: Preto + Azul: 291 ± 4 ohms
| Manufacturer | Model | Engine | Fuel | Year | Note |
|---|---|---|---|---|---|
| Volkswagen | Jetta | 1.4 4Cil 16v | Flex | 15 > | TSI |
| Volkswagen | Jetta | 2.0 4Cil 16v | Gasoline | 11 > | TSI |
| Volkswagen | Passat | 2.0 4Cil 16v | Gasoline | 09 > | TSI |
Details Fuel Level Sensor

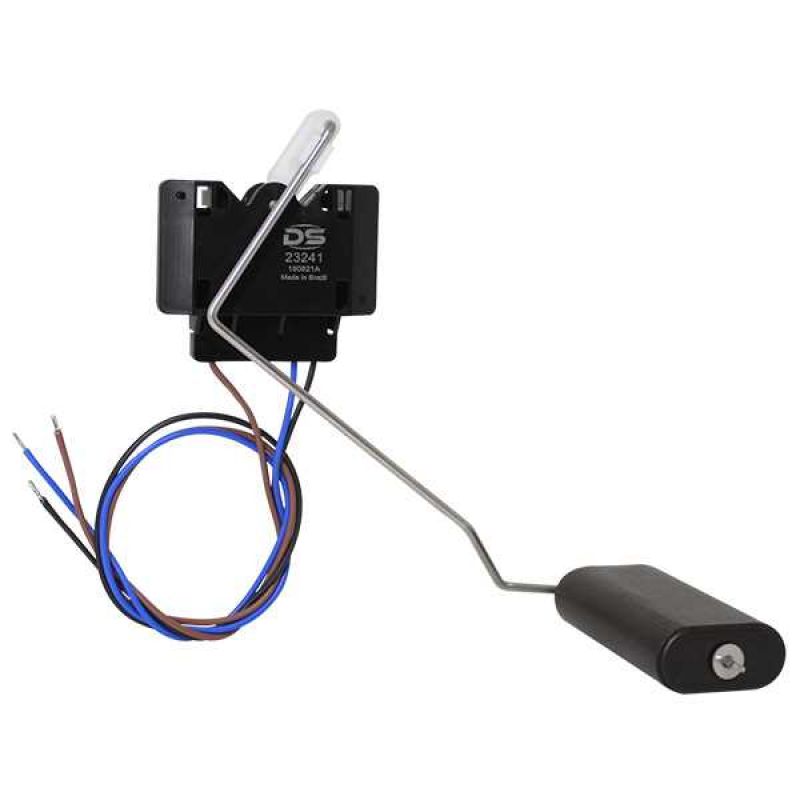

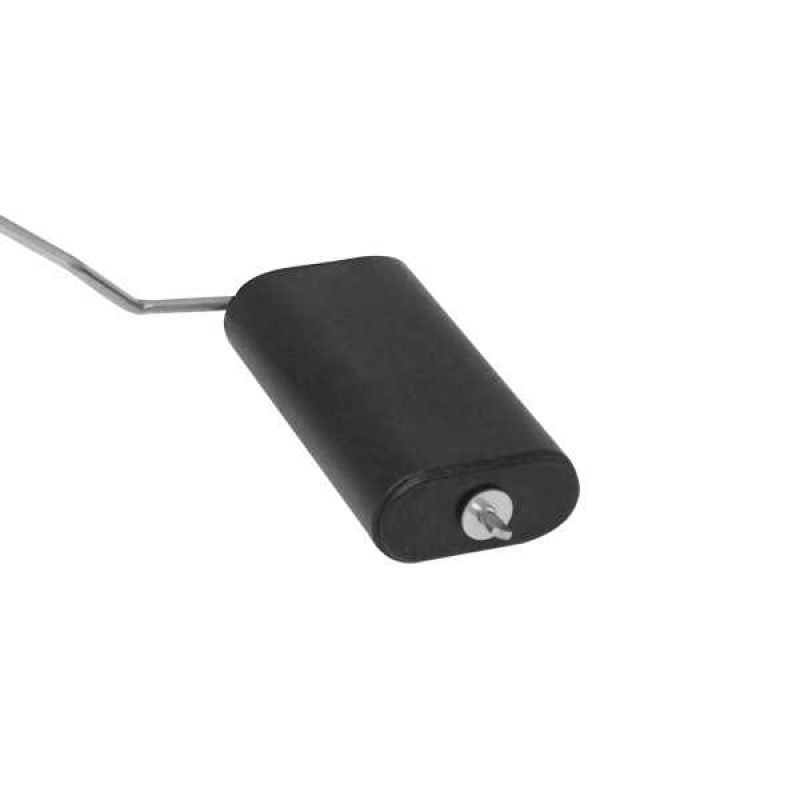

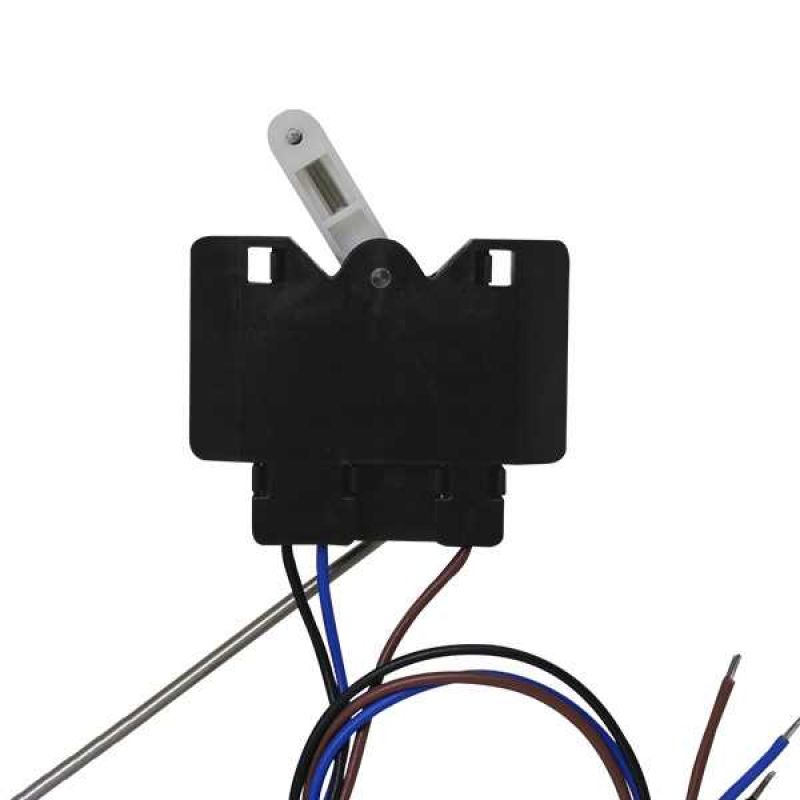

Located next to the fuel module, the sensor is basically composed of a float fixed to an articulate rod that moves its sliding contact. It measures the amount of fuel existing in the tank and informs the Electronic Control Unit (ECU), which, on its turn, controls the position of the fuel gauge indicator on the vehicle’s dashboard. In Flex-fuel vehicles, the fuel level sensor has a very important additional function, as it helps identify the type of fuel existing in the tank.
