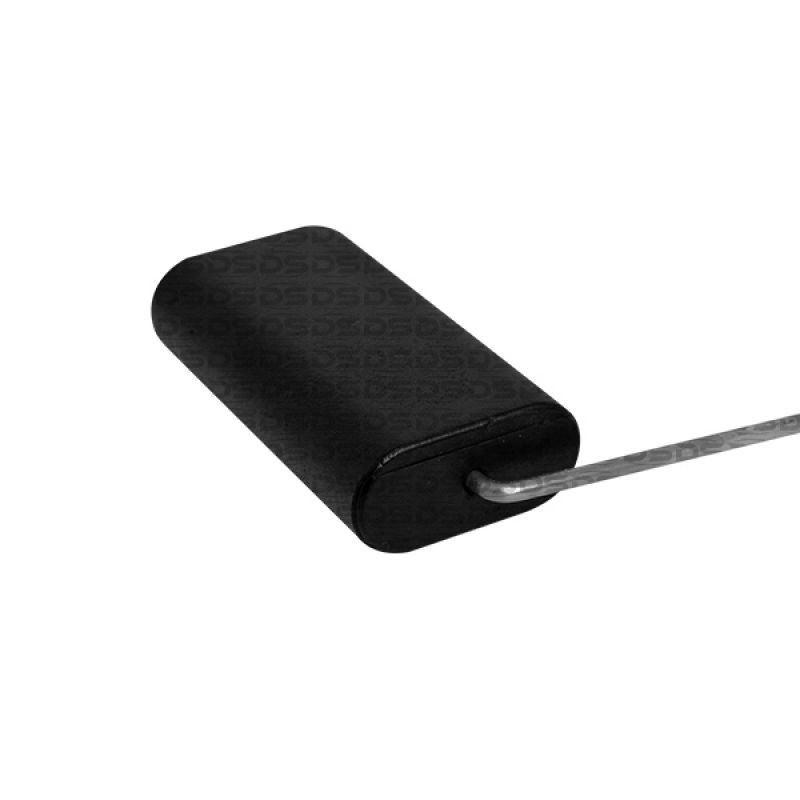

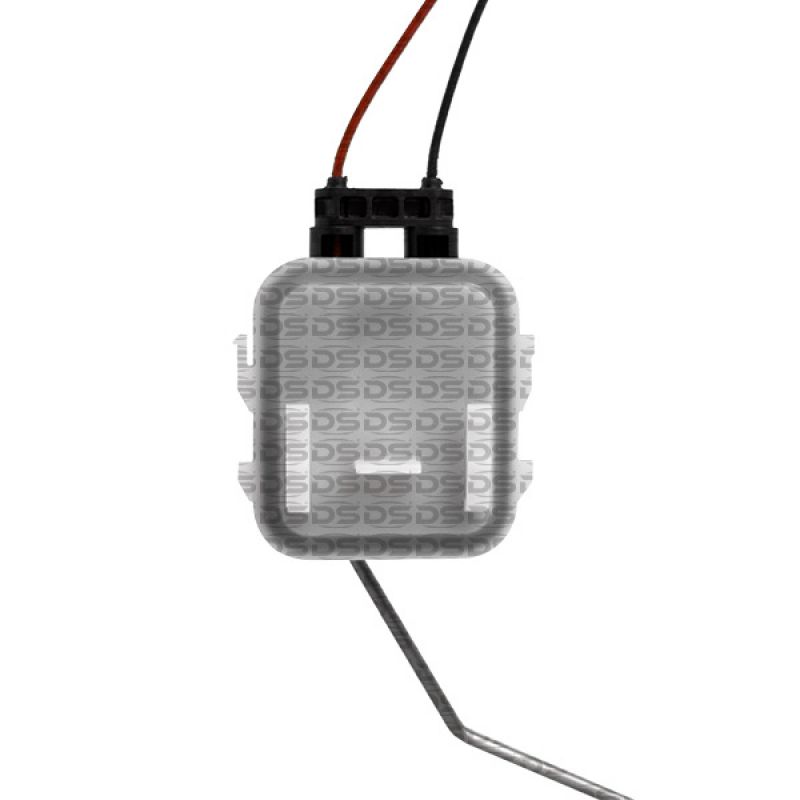

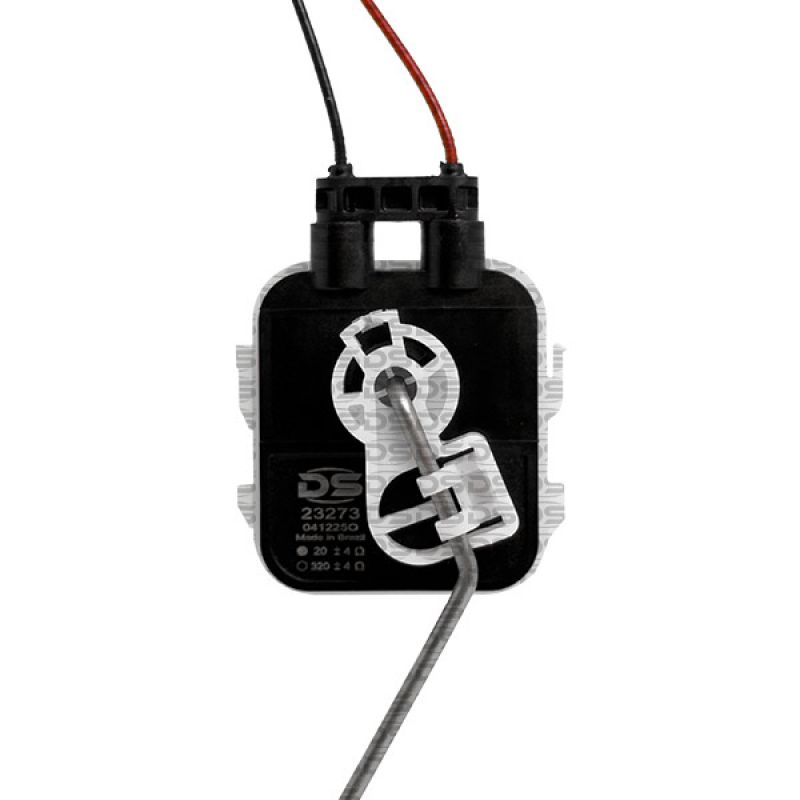

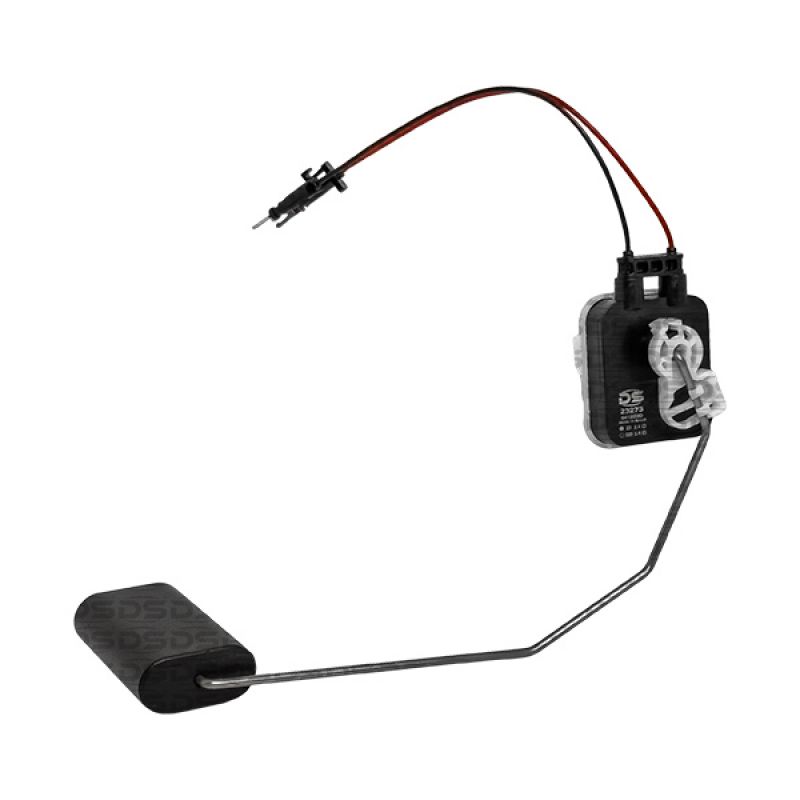

Fuel Level Sensor

DS Code:23273
Full: 20 ± 4 ohms | Empty: 320 ± 4 ohms | Note: Application valid only for the 2nd generation of Sandero, Logan, and Duster vehicles, equipped with SCe engines and Bosch modules. Models DS-23181 and DS-23289 also fit the 2nd generation SCe, however, they are different products. Always use the original code to ensure correct application.


Bosch:1582894589
Bosch:058031402R
RENAULT:172028277R
TSA:T010325

Manufacturer	Model	Engine	Fuel	Year	Note
Renault	Duster	1.6 4Cil 16v	Flex	16 >	SCe H4M
Renault	Logan	1.0 3Cil 12v	Flex	16 >	SCe B4D
Renault	Sandero	1.0 3Cil 12v	Flex	16 >	SCe B4D

Details Fuel Level Sensor

Located next to the fuel module, the sensor is basically composed of a float fixed to an articulate rod that moves its sliding contact. It measures the amount of fuel existing in the tank and informs the Electronic Control Unit (ECU), which, on its turn, controls the position of the fuel gauge indicator on the vehicle’s dashboard. In Flex-fuel vehicles, the fuel level sensor has a very important additional function, as it helps identify the type of fuel existing in the tank.
