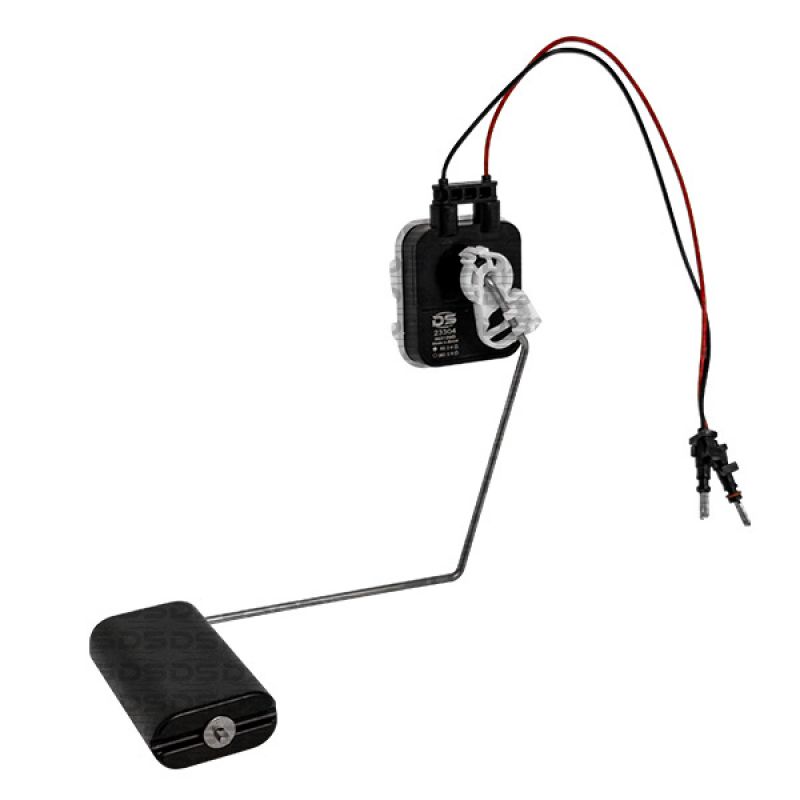

Fuel Level Sensor

DS Code:23304
Full: 63 ± 4 ohms | Empty: 363 ± 4 | Note: The DS-23304 part replaces the original Bosch component with a long wiring harness. It is applied to vehicles already equipped with the Proconve L7 emissions system, meaning vehicles manufactured from 2022 onwards. For this application, it is essential to purchase according to the fuel module code (located above the flange), as there are other similar models that also fit this application.


Bosch:1582896690
Bosch:058031405P
FIAT:52217361

Manufacturer	Model	Engine	Fuel	Year
Fiat	Argo	1.0 3Cil 6v	Flex	22 >
Fiat	Argo	1.3 4Cil 8v	Flex	22 >
Fiat	Cronos	1.0 3Cil 6v	Flex	22 >
Fiat	Cronos	1.3 4Cil 8v	Flex	22 >
Fiat	Pulse	1.3 4Cil 8v	Flex	22 >

Details Fuel Level Sensor

Located next to the fuel module, the sensor is basically composed of a float fixed to an articulate rod that moves its sliding contact. It measures the amount of fuel existing in the tank and informs the Electronic Control Unit (ECU), which, on its turn, controls the position of the fuel gauge indicator on the vehicle’s dashboard. In Flex-fuel vehicles, the fuel level sensor has a very important additional function, as it helps identify the type of fuel existing in the tank.
