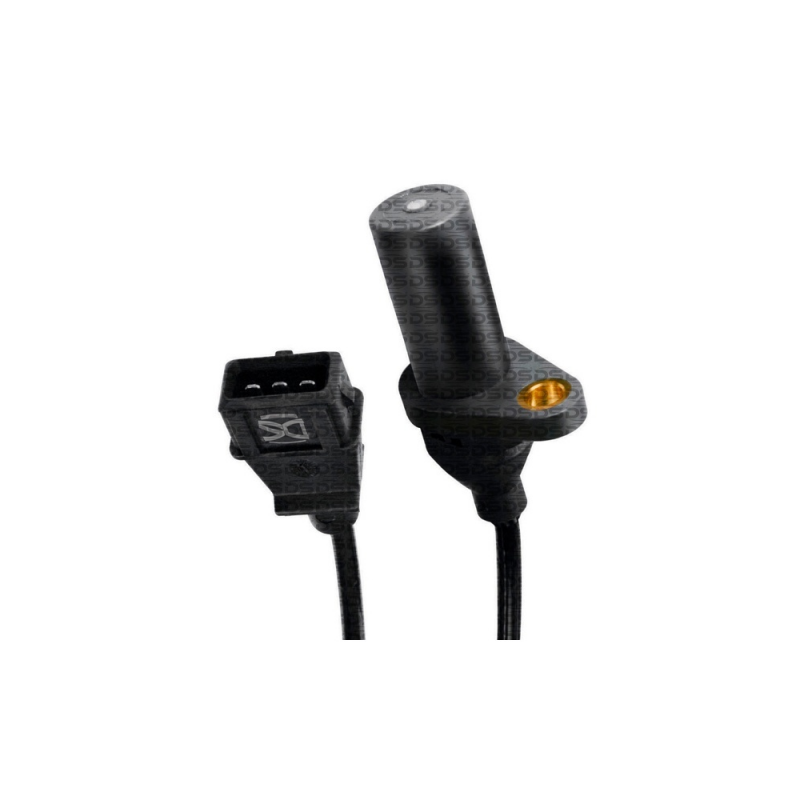

Crankshaft Position Sensor (PMS-CKP)

DS Code:1802
Cable length (cm): 72 | Ways: 03 | Technology: Indutivo

DPL:508515
E-Klass:ESR4515
FIAT:46479975
FIAT:55189515
LP:810975813
MAXAUTO:5807
MAXAUTO:5819
MTE:7056
Marelli:C146
Marelli:1040211101
SENSORAUTO:SRF0016
TSA:T080023
Manufacturer Model Engine Fuel Year Note
Fiat Brava 1.6 4Cil 16v Gasoline 00 > 03
Fiat Doblô 1.6 4Cil 16v Gasoline 02 > 03
Fiat Linea 1.9 4Cil 16v Flex 09 > 10
Fiat Marea 1.6 4Cil 16v Gasoline 06 > 07
Fiat Palio Weekend 1.6 4Cil 16v Gasoline 97 > 03
Fiat Palio 1.6 4Cil 16v Gasoline 96 > 03
Fiat Siena 1.6 4Cil 16v Gasoline 98 > 03
Fiat Strada 1.6 4Cil 16v Gasoline 99 > 03

Details Crankshaft Position Sensor (PMS-CKP)

The crankshaft position sensor sends an electrical signal to the injection module that allows the synchronization of the system: injection timing, ignition advance, high out of gear, etc.

The crankshaft position sensor set is basically comprised of a spur gear or phonic wheel, permanent magnet, ferromagnetic core, coil, coil wires, braided shield, and sensor connector.

The sensor cable is entirely covered by a metal mesh referred to as braided shield. This mesh is linked to a grounding line and prevents electromagnetic interferences from disturbing the pulse pattern sent by the sensor.

Some crankshaft position sensors are found in the front part of the engine, in the pulley, and others are already assembled on the engine flywheel.
