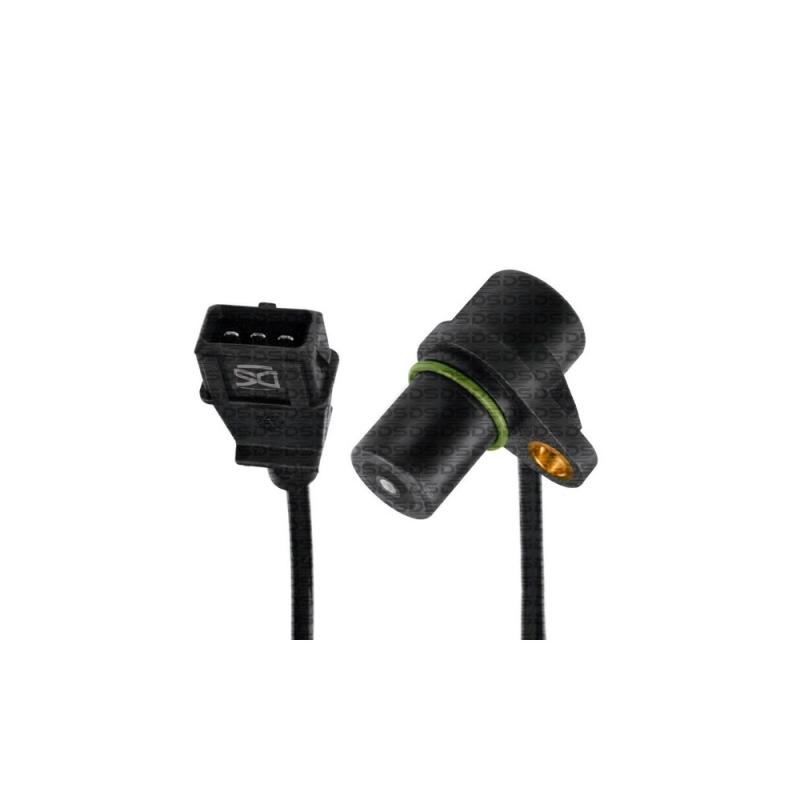

Crankshaft Position Sensor (PMS-CKP)

DS Code:1805
Cable length (cm): 101 | Ways: 03 | Note: Crankshaft Position Sensor (PMS-CKP)

Bosch:0261210128
DPL:508015
DPL:508128
E-Klass:ESR4128
E-Klass:ESR4015
GM:93232413
LP:810128804
MAXAUTO:5808
MAXAUTO:080001
MTE:70323
SENSORAUTO:SRG8024
TSA:T080004
VDO:324003007R
Manufacturer Model Engine Fuel Year Note
GM Astra 1.8 4Cil 8v Ethanol 99 > 05
GM Astra 1.8 4Cil 8v Gasoline 99 > 01
GM Astra 2.0 4Cil 8v Gasoline 99 > 05
GM Astra 2.0 4Cil 8v Flex 05 > 11
GM Blazer 2.2 4Cil 8v Gasoline 98 > 03
GM Blazer 2.4 4Cil 8v Flex 07 > 11
GM Blazer 2.4 4Cil 8v Gasoline 00 > 07
GM Ipanema 1.8 4Cil 8v Ethanol 95 > 98
GM Ipanema 1.8 4Cil 8v Gasoline 90 > 97
GM Ipanema 2.0 4Cil 8v Gasoline 94 > 98
GM Ipanema 2.0 4Cil 8v Ethanol 95 > 97
GM Kadett 1.8 4Cil 8v Ethanol 97 > 97
GM Kadett 1.8 4Cil 8v Gasoline 97 > 98
GM Kadett 2.0 4Cil 8v Gasoline 97 > 98
GM Kadett 2.0 4Cil 8v Ethanol 97 > 98
GM Monza 2.0 4Cil 8v Gasoline 85 > 94
GM Omega 2.0 4Cil 8v Gasoline 92 > 95
GM Omega 2.0 4Cil 8v Ethanol 95 > 95
GM S10 2.2 4Cil 8v Gasoline 98 > 03
GM S10 2.4 4Cil 8v Gasoline 00 > 07
GM S10 2.4 4Cil 8v Flex 07 > 11
GM Suprema 2.0 4Cil 8v Ethanol 95 > 95
GM Suprema 2.0 4Cil 8v Gasoline 92 > 95
GM Vectra 2.0 4Cil 8v Flex 05 > 11
GM Vectra 2.0 4Cil 8v Gasoline 96 > 04
GM Vectra 2.2 4Cil 16v Gasoline 98 > 02
GM Zafira 2.0 4Cil 8v Flex 05 > 12
GM Zafira 2.0 4Cil 8v Gasoline 01 > 04

Details Crankshaft Position Sensor (PMS-CKP)

The crankshaft position sensor sends an electrical signal to the injection module that allows the synchronization of the system: injection timing, ignition advance, high out of gear, etc.

The crankshaft position sensor set is basically comprised of a spur gear or phonic wheel, permanent magnet, ferromagnetic core, coil, coil wires, braided shield, and sensor connector.

The sensor cable is entirely covered by a metal mesh referred to as braided shield. This mesh is linked to a grounding line and prevents electromagnetic interferences from disturbing the pulse pattern sent by the sensor.

Some crankshaft position sensors are found in the front part of the engine, in the pulley, and others are already assembled on the engine flywheel.
