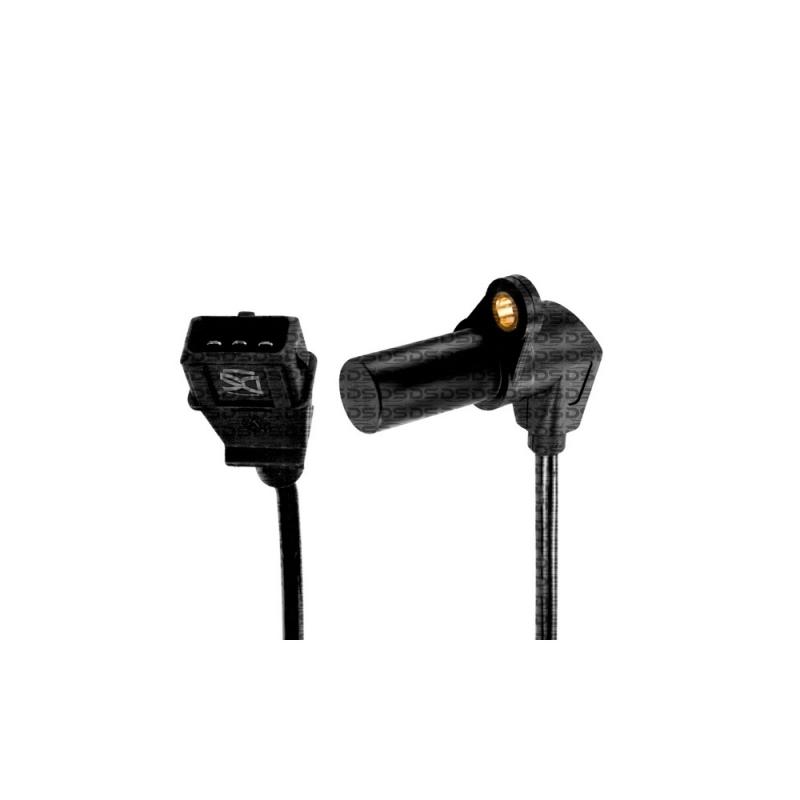

Crankshaft Position Sensor (PMS-CKP)

DS Code:1807
Cable length (cm): 89 | Ways: 03 | Note: Crankshaft Position Sensor (PMS-CKP)

DPL:508739
E-Klass:ESR4739
GM:90337650
GM:90483739
LP:810650812
MAXAUTO:5820
MAXAUTO:080004
MTE:70404
SENSORAUTO:SRG1016
TSA:T080011
Manufacturer Model Engine Fuel Year Note
GM Corsa 1.0 4Cil 16v Gasoline 99 > 05
GM Corsa 1.6 4Cil 16v Gasoline 95 > 01
GM Corsa 1.6 4Cil 8v Gasoline 95 > 01
GM Tigra 1.6 4Cil 16v Gasoline 98 > 99

Details Crankshaft Position Sensor (PMS-CKP)

The crankshaft position sensor sends an electrical signal to the injection module that allows the synchronization of the system: injection timing, ignition advance, high out of gear, etc.

The crankshaft position sensor set is basically comprised of a spur gear or phonic wheel, permanent magnet, ferromagnetic core, coil, coil wires, braided shield, and sensor connector.

The sensor cable is entirely covered by a metal mesh referred to as braided shield. This mesh is linked to a grounding line and prevents electromagnetic interferences from disturbing the pulse pattern sent by the sensor.

Some crankshaft position sensors are found in the front part of the engine, in the pulley, and others are already assembled on the engine flywheel.
