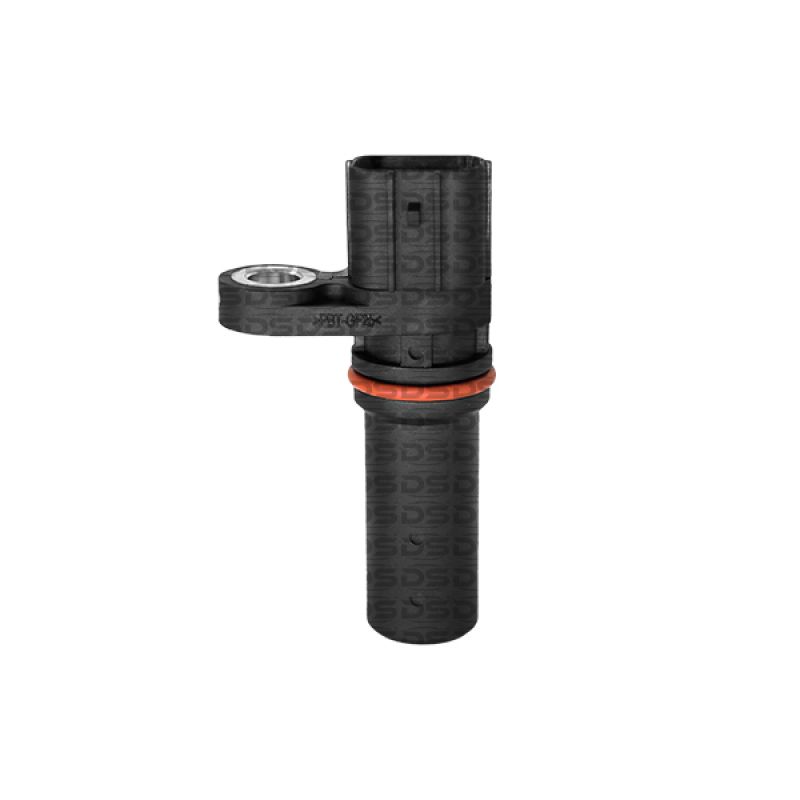

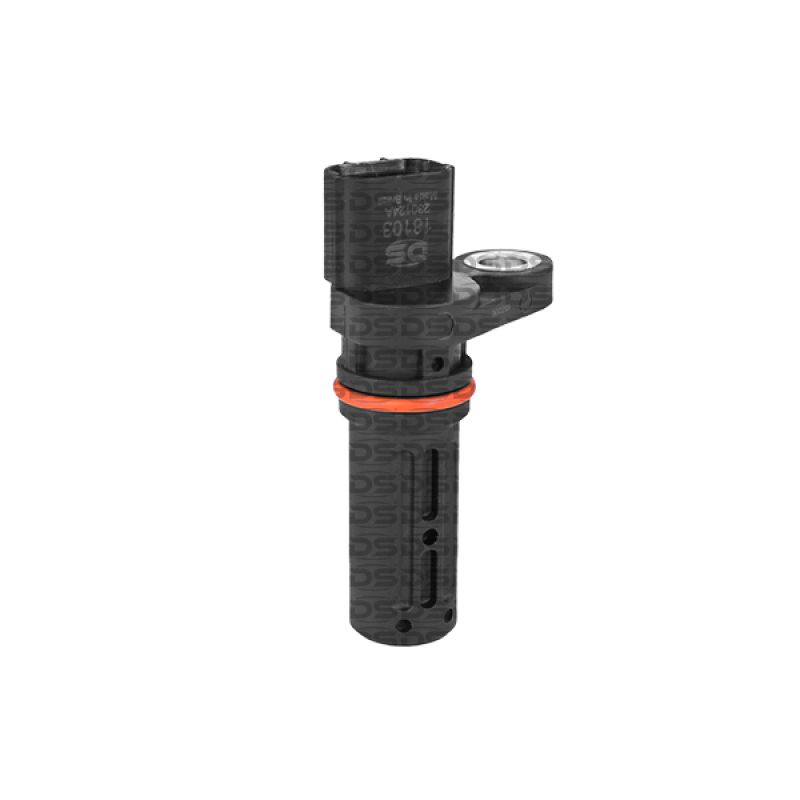

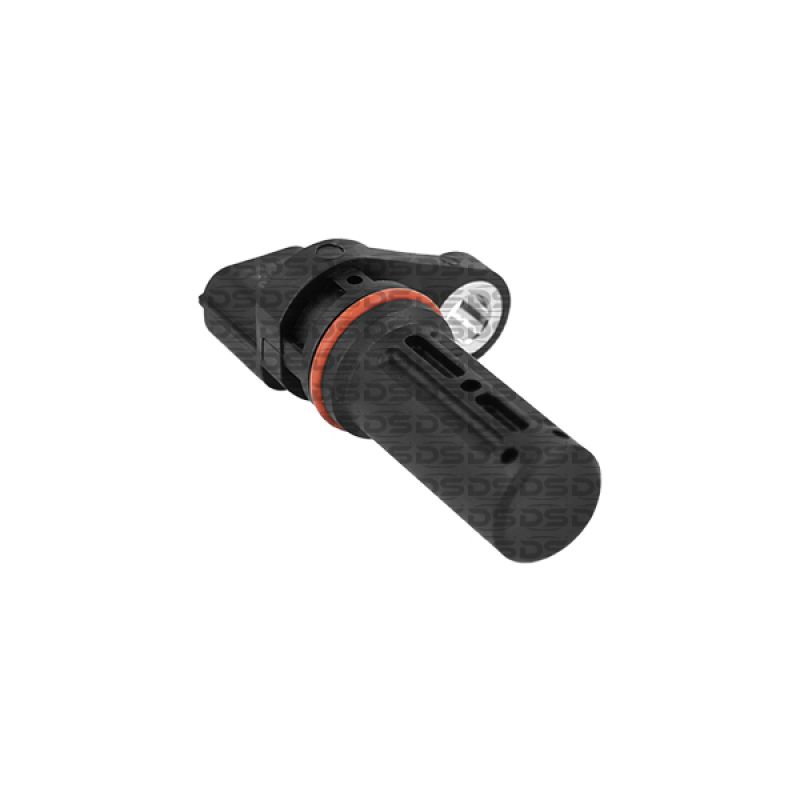

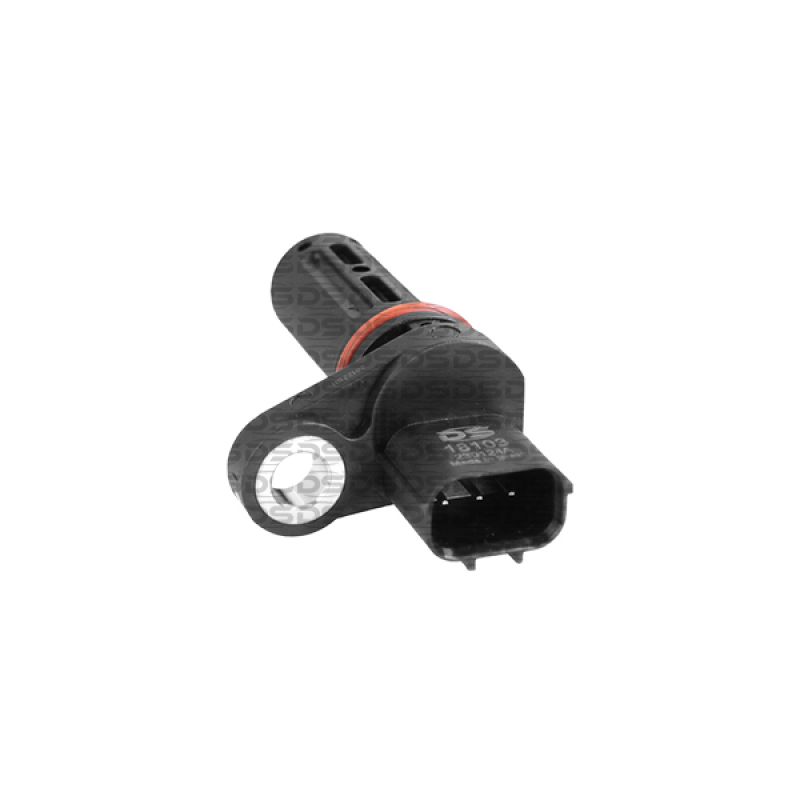

Crankshaft Position Sensor (PMS-CKP)

DS Code:18103
Ways: 03


DPL:508001
E-Klass:ESR4172
EURO:790172
HONDA:37500PNC006
HONDA:37500RAAA01
MAXAUTO:0801328823
MTE:70578

Manufacturer	Model	Engine	Fuel	Year
Honda	Accord	2.0 4Cil 16v	Gasoline	06 > 09
Honda	Accord	2.3 4Cil 16v	Gasoline	03 >
Honda	CR-V	2.0 4Cil 16v	Gasoline	07 > 11
Honda	Civic	1.8 4Cil 16v	Gasoline	07 > 11
Honda	Fit	1.4 4Cil 8v	Gasoline	04 > 08
Honda	Fit	1.5 4Cil 16v	Gasoline	05 > 08

Details Crankshaft Position Sensor (PMS-CKP)

The crankshaft position sensor sends an electrical signal to the injection module that allows the synchronization of the system: injection timing, ignition advance, high out of gear, etc.

The crankshaft position sensor set is basically comprised of a spur gear or phonic wheel, permanent magnet, ferromagnetic core, coil, coil wires, braided shield, and sensor connector.

The sensor cable is entirely covered by a metal mesh referred to as braided shield. This mesh is linked to a grounding line and prevents electromagnetic interferences from disturbing the pulse pattern sent by the sensor.

Some crankshaft position sensors are found in the front part of the engine, in the pulley, and others are already assembled on the engine flywheel.
