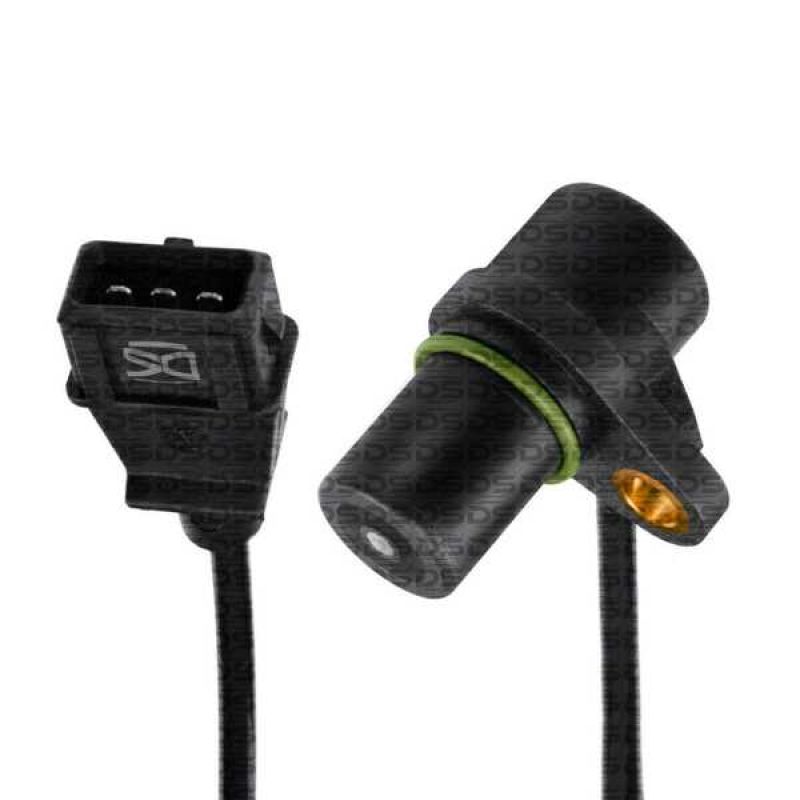

Crankshaft Position Sensor (PMS-CKP)

DS Code:1840
Cable length (cm): 101 | Ways: 03 | Technology: Inductive

Bosch:0261210030
DPL:508015
E-Klass:ESR4015
Facet:90073
MEAT & DORIA:87044
MTE:7041
OPEL:1238358
OPEL:6238313
OPEL:90213515
OPEL:90451441
SAAB:4227203
SENSORAUTO:SRF022
TSA:T080057
Manufacturer Model Engine Fuel Year Note
Opel Ascona C 2.0 4Cil 8v Gasoline 86 > 88
Opel Astra F 1.8 4Cil 8v Gasoline 89 > 98
Opel Astra F 2.0 4Cil 16v Gasoline 91 > 98
Opel Astra F 2.0 4Cil 8v Gasoline 89 > 98
Opel Calibra A 2.0 4Cil 16v Gasoline 90 > 94
Opel Calibra A 2.0 4Cil 16v Gasoline 92 > 97 Turbo
Opel Calibra A 2.0 4Cil 8v Gasoline 90 > 97
Opel Frontera A 2.0 4Cil 8v Gasoline 92 > 98
Opel Frontera A 2.2 4Cil 16v Gasoline 95 > 98
Opel Kadett E 1.8 4Cil 8v Gasoline 87 > 91
Opel Kadett E 1.8 4Cil 8v Gasoline 87 > 90
Opel Kadett E 1.8 4Cil 8v Gasoline 85 > 91
Opel Kadett E 2.0 4Cil 16v Gasoline 86 > 93
Opel Kadett E 2.0 4Cil 8v Gasoline 86 > 91
Opel Omega A 1.8 4Cil 8v Gasoline 86 > 94
Opel Omega A 2.0 4Cil 16v Gasoline 90 > 94
Opel Omega B 2.0 4Cil 16v Gasoline 94 > 00
Opel Omega B 2.0 4Cil 8v Gasoline 94 > 99
Opel Vectra A 1.8 4Cil 8v Gasoline 88 > 95
Opel Vectra A 2.0 4Cil 16v Gasoline 89 > 95
Opel Vectra A 2.0 4Cil 16v Gasoline 94 > 95 Turbo
Opel Vectra A 2.0 4Cil 16v Gasoline 89 > 95
Opel Vectra A 2.0 4Cil 8v Gasoline 88 > 95
Opel Vectra B 1.6 4Cil 16v Gasoline 95 > 03
Saab 9-3 2.0 4Cil 16v Gasoline 98 > 03 Turbo
Saab 9000 2.0 4Cil 16v Gasoline 93 > 98
Saab 9000 2.0 4Cil 16v Gasoline 92 > 98 Turbo
Saab 9000 2.3 4Cil 16v Gasoline 93 > 98
Saab 9000 2.3 4Cil 16v Gasoline 93 > 98 Eco-Power
Saab 9000 2.3 4Cil 16v Gasoline 90 > 98 Turbo
Saab 900 2.0 4Cil 16v Gasoline 93 > 98 Turbo
Saab 900 2.3 4Cil 16v Gasoline 93 > 98

Details Crankshaft Position Sensor (PMS-CKP)

The crankshaft position sensor sends an electrical signal to the injection module that allows the synchronization of the system: injection timing, ignition advance, high out of gear, etc.

The crankshaft position sensor set is basically comprised of a spur gear or phonic wheel, permanent magnet, ferromagnetic core, coil, coil wires, braided shield, and sensor connector.

The sensor cable is entirely covered by a metal mesh referred to as braided shield. This mesh is linked to a grounding line and prevents electromagnetic interferences from disturbing the pulse pattern sent by the sensor.

Some crankshaft position sensors are found in the front part of the engine, in the pulley, and others are already assembled on the engine flywheel.
