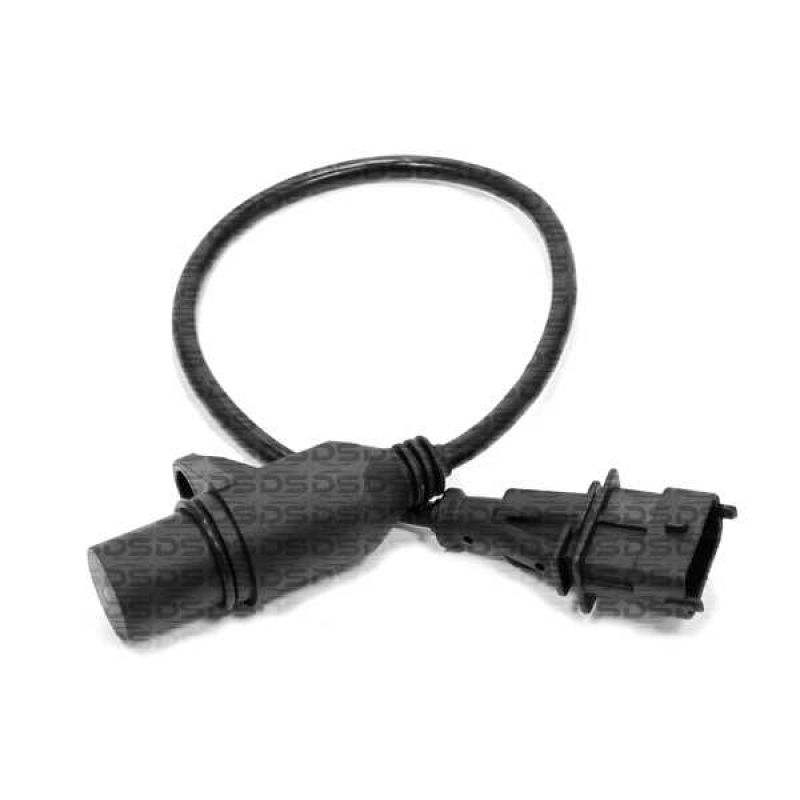

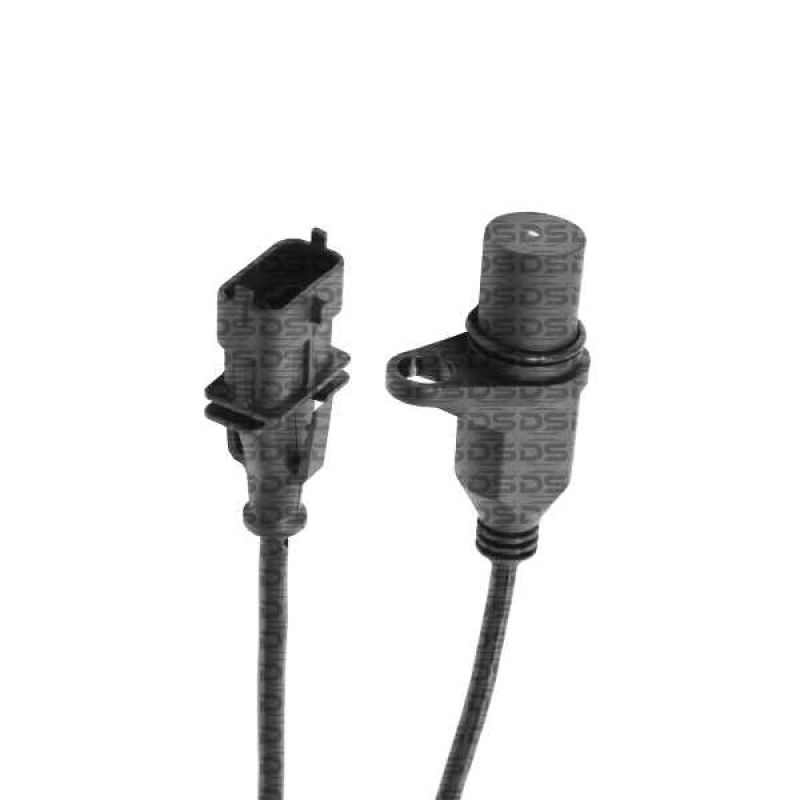

Crankshaft Position Sensor (PMS-CKP)
DS Code:1843
Cable length (cm): 35 | Ways: 03 | Technology: Inductive
| Manufacturer | Model | Engine | Fuel | Year | Note |
|---|---|---|---|---|---|
| Agrale | 8500 E-tronic | 4.8 4Cil 8v | Diesel | 05 > | MWM Acteon 4.12 TCAE |
| Agrale | 9200 E-tronic | 4.8 4Cil 8v | Diesel | 05 > | MWM Acteon 4.12 TCAE |
| Agrale | MA 12.0 E-tronic | 5.9 6Cil 24v | Diesel | 05 > | Cummins Interact 6 |
| Agrale | MA 7.5 E-tronic | 4.8 4Cil 8v | Diesel | 05 > | MWM Acteon 4.12 TCAE |
| Agrale | MA 8.5 E-tronic | 4.8 4Cil 8v | Diesel | 05 > | MWM Acteon 4.12 TCAE |
| Agrale | MA 9.2 E-tronic | 4.8 4Cil 8v | Diesel | 05 > | MWM Acteon 4.12 TCAE |
| Agrale | MT 12.0 LE E-tronic | 5.9 6Cil 24v | Diesel | 05 > | Cummins Interact 6 |
| Agrale | MT 12.0 SB E-tronic | 5.9 6Cil 24v | Diesel | 05 > | Cummins Interact 6 |
| Ford | Cargo C 1317 E | 3.9 4Cil 16v | Diesel | 05 > | Cummins Interact 4 |
| Ford | Cargo C 1517 E | 3.9 4Cil 16v | Diesel | 05 > | Cummins Interact 4 |
| Ford | Cargo C 1717 E | 3.9 4Cil 16v | Diesel | 05 > | Cummins Interact 4 |
| Ford | Cargo C 1722 E | 5.9 6Cil 24v | Diesel | 06 > | Cummins Interact 6 |
| Ford | Cargo C 2422 E | 5.9 6Cil 24v | Diesel | 06 > | Cummins Interact 6 |
| Ford | Cargo C 2428 E | 5.9 6Cil 24v | Diesel | 06 > | Cummins Interact 6 |
| Ford | Cargo C 2622 E | 5.9 6Cil 24v | Diesel | 06 > | Cummins Interact 6 |
| Ford | Cargo C 2626 E | 8.3 6Cil 12v | Diesel | 06 > | Cummins C8.3 |
| Ford | Cargo C 815 E | 3.9 4Cil 16v | Diesel | 05 > | Cummins Interact 4 |
| Ford | F-250 | 3.9 4Cil 16v | Diesel | 06 > | |
| Iveco | EuroCargo 170 E 22 | 5.9 6Cil 24v | Diesel | 05 > | |
| Iveco | EuroCargo 230 E 22 | 5.9 6Cil 24v | Diesel | 05 > | |
| Iveco | EuroCargo 230 E 24 | 5.9 6Cil 24v | Diesel | 06 > | |
| Iveco | Tector 170 E 25 T | 5.9 6Cil 24v | Diesel | 08 > | |
| Iveco | Tector 240 E 25 S | 5.9 6Cil 24v | Diesel | 08 > | |
| Iveco | Tector 260 E 25 | 5.9 6Cil 24v | Diesel | 08 > | |
| Marcopolo | Volare W8 | 4.8 4Cil 8v | Diesel | 05 > | |
| Marcopolo | Volare W9 | 4.8 4Cil 8v | Diesel | 05 > | |
| Volkswagen | 13.170 E | 3.9 4Cil 16v | Diesel | 04 > | Cummins Interact 4 |
| Volkswagen | 13.180 Constellation | 4.8 4Cil 8v | Diesel | 06 > | MWM Acteon 4.12 TCAE |
| Volkswagen | 13.180 E Constellation | 4.8 4Cil 8v | Diesel | 05 > | MWM Acteon 4.12 TCAE |
| Volkswagen | 15.170 E | 3.9 4Cil 16v | Diesel | 04 > | Cummins Interact 4 |
| Volkswagen | 15.180 Constellation | 4.8 4Cil 8v | Diesel | 06 > | MWM Acteon 4.12 TCAE |
| Volkswagen | 15.180 E Constellation | 4.8 4Cil 8v | Diesel | 05 > | MWM Acteon 4.12 TCAE |
| Volkswagen | 15.180 EOD | 4.8 4Cil 8v | Diesel | 05 > | MWM Acteon 4.12 TCAE |
| Volkswagen | 15.190 E | 4.8 4Cil 8v | Diesel | 04 > | MWM Acteon 4.12 TCAE |
| Volkswagen | 15.190 EOD | 4.8 4Cil 8v | Diesel | 06 > | MWM Acteon 4.12 TCAE |
| Volkswagen | 17.210 EOD | 7.2 6Cil 12v | Diesel | 04 > | MWM Acteon 6.12 TCAE |
| Volkswagen | 17.230 EOD | 7.2 6Cil 12v | Diesel | 06 > | MWM Acteon 6.12 TCAE |
| Volkswagen | 17.250 Constellation | 5.9 6Cil 24v | Diesel | 05 > | Cummins Interact 6 |
| Volkswagen | 17.250 E Constellation | 5.9 6Cil 24v | Diesel | 03 > 04 | Cummins Interact 6 |
| Volkswagen | 17.260 EOT | 7.2 6Cil 12v | Diesel | 04 > | MWM Acteon 6.12 TCAE |
| Volkswagen | 23.250 E | 5.9 6Cil 24v | Diesel | 04 > | Cummins Interact 6 |
| Volkswagen | 24.250 Constellation | 5.9 6Cil 24v | Diesel | 05 > | Cummins Interact 6 |
| Volkswagen | 24.250 E | 5.9 6Cil 24v | Diesel | 03 > 04 | Cummins Interact 6 |
| Volkswagen | 26.260 E | 7.2 6Cil 12v | Diesel | 06 > | MWM Acteon 6.12 TCAE |
| Volkswagen | 31.260 E | 7.2 6Cil 12v | Diesel | 06 > | MWM Acteon 6.12 TCAE |
| Volkswagen | 8.150 E | 3.9 4Cil 16v | Diesel | 03 > 04 | Cummins Interact 4 |
| Volkswagen | 8.150 EOD | 3.9 4Cil 16v | Diesel | 04 > | Cummins Interact 4 |
| Volkswagen | 9.150 E | 3.9 4Cil 16v | Diesel | 03 > 04 | Cummins Interact 4 |
| Volkswagen | 9.150 EOD | 3.9 4Cil 16v | Diesel | 04 > | Cummins Interact 4 |
Details Crankshaft Position Sensor (PMS-CKP)
The crankshaft position sensor sends an electrical signal to the injection module that allows the synchronization of the system: injection timing, ignition advance, high out of gear, etc.
The crankshaft position sensor set is basically comprised of a spur gear or phonic wheel, permanent magnet, ferromagnetic core, coil, coil wires, braided shield, and sensor connector.
The sensor cable is entirely covered by a metal mesh referred to as braided shield. This mesh is linked to a grounding line and prevents electromagnetic interferences from disturbing the pulse pattern sent by the sensor.
Some crankshaft position sensors are found in the front part of the engine, in the pulley, and others are already assembled on the engine flywheel.
