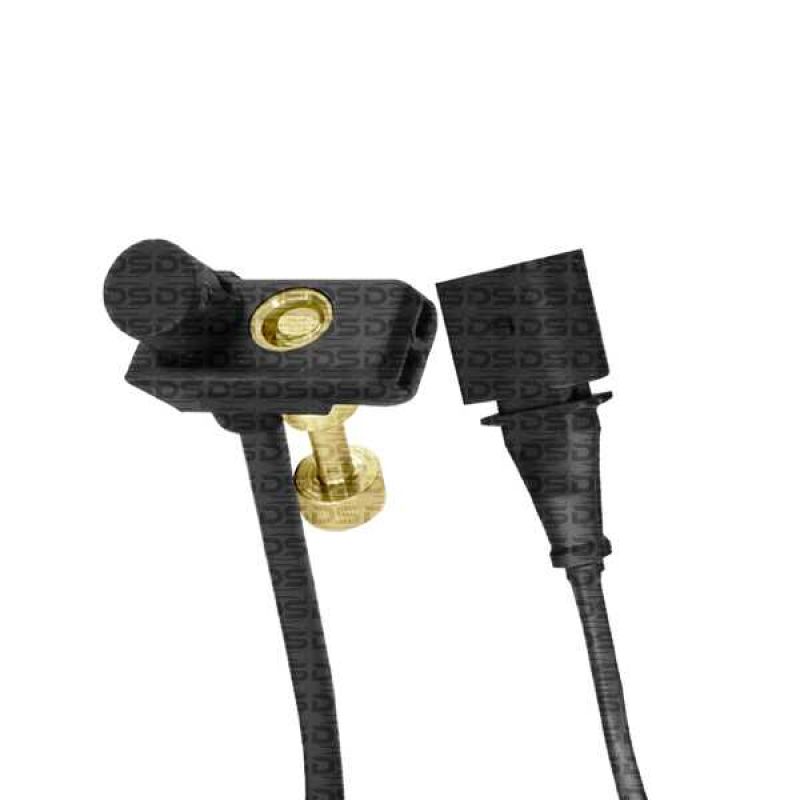

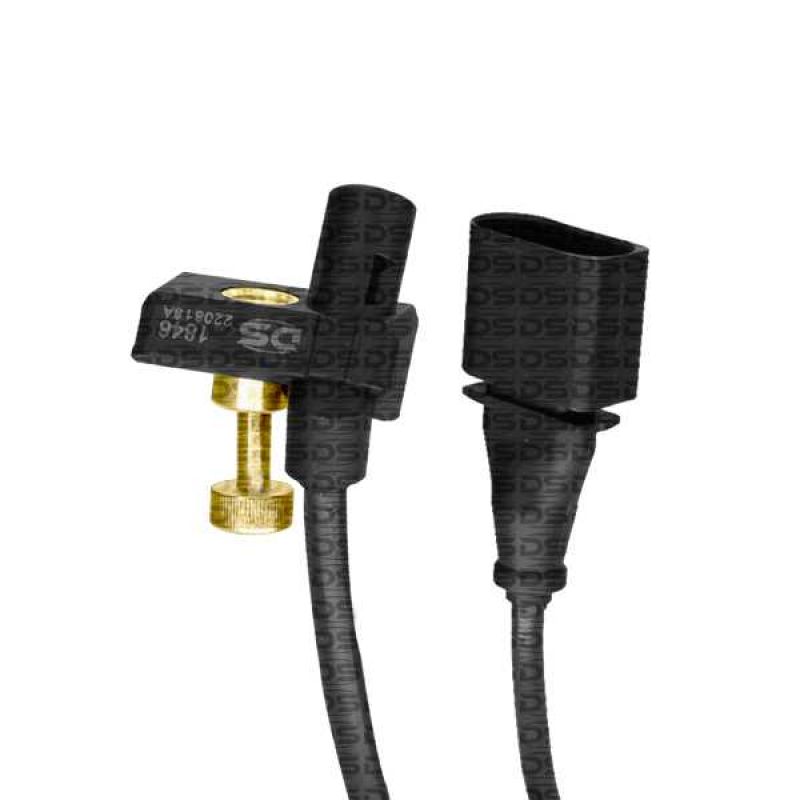

Crankshaft Position Sensor (PMS-CKP)

DS Code:1846
Cable length (cm): 23 | Ways: 03 | Technology: Hall

Bosch:0261210208
DPL:508208
E-Klass:ESR4433K
LP:810208816
MAXAUTO:5823
MAXAUTO:080042
MTE:70412
SENSORAUTO:SRW6433KP
TSA:T080025
VW:030906433K
Manufacturer Model Engine Fuel Year Note
Volkswagen Gol G2 1.0 4Cil 16v Gasoline 94 >
Volkswagen Gol G3 1.0 4Cil 16v Flex 02 >
Volkswagen Gol G3 1.0 4Cil 16v Gasoline 97 > 04 Turbo
Volkswagen Gol G3 1.0 4Cil 8v Flex 00 > 05
Volkswagen Gol G4 1.0 4Cil 8v Flex 05 > 08
Volkswagen Gol G4 1.6 4Cil 8v Flex 03 > 08
Volkswagen Gol G4 1.8 4Cil 16v Flex 05 > 08
Volkswagen Gol G5 1.0 4Cil 8v Flex 08 > 15
Volkswagen Gol G5 1.6 4Cil 8v Flex 08 > 15
Volkswagen Parati 1.6 4Cil 8v Flex 03 > 12
Volkswagen Saveiro G3 1.6 4Cil 8v Flex 03 > 05
Volkswagen Saveiro G4 1.6 4Cil 8v Flex 08 > 09

Details Crankshaft Position Sensor (PMS-CKP)

The crankshaft position sensor sends an electrical signal to the injection module that allows the synchronization of the system: injection timing, ignition advance, high out of gear, etc.

The crankshaft position sensor set is basically comprised of a spur gear or phonic wheel, permanent magnet, ferromagnetic core, coil, coil wires, braided shield, and sensor connector.

The sensor cable is entirely covered by a metal mesh referred to as braided shield. This mesh is linked to a grounding line and prevents electromagnetic interferences from disturbing the pulse pattern sent by the sensor.

Some crankshaft position sensors are found in the front part of the engine, in the pulley, and others are already assembled on the engine flywheel.
