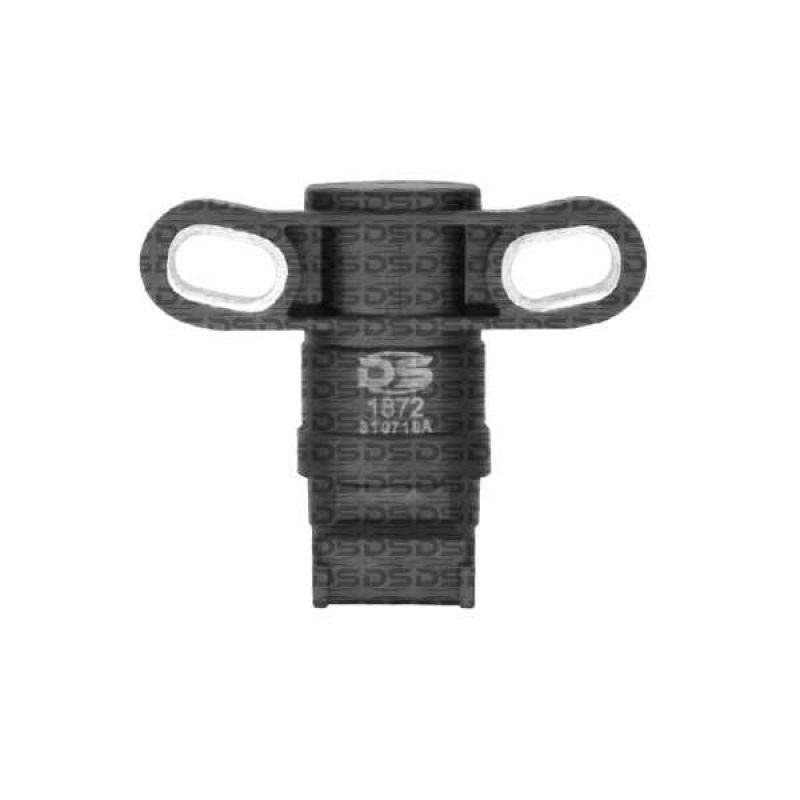

Crankshaft Position Sensor (PMS-CKP)

DS Code:1872
Ways: 02 | Note: Crankshaft Position Sensor (PMS-CKP)

E-Klass:ESR4315AD
FORD:1S7FGC315AD
FORD:4S6A6C315AB
MAXAUTO:080056
TSA:T080038
Manufacturer Model Engine Fuel Year Note
Ford Ecosport 2.0 4Cil 16v Gasoline 02 > 12 Duratec
Ford Ecosport 2.0 4Cil 16v Flex 10 > 12 Duratec
Ford Focus 2.0 4Cil 16v Gasoline 05 > 10
Ford Focus 2.0 4Cil 16v Flex 10 > 12 Duratec
Ford Mondeo 2.0 4Cil 16v Gasoline 02 > 06 Duratec
Ford Ranger 2.3 4Cil 16v Gasoline 01 > 12 Duratec

Details Crankshaft Position Sensor (PMS-CKP)

The crankshaft position sensor sends an electrical signal to the injection module that allows the synchronization of the system: injection timing, ignition advance, high out of gear, etc.

The crankshaft position sensor set is basically comprised of a spur gear or phonic wheel, permanent magnet, ferromagnetic core, coil, coil wires, braided shield, and sensor connector.

The sensor cable is entirely covered by a metal mesh referred to as braided shield. This mesh is linked to a grounding line and prevents electromagnetic interferences from disturbing the pulse pattern sent by the sensor.

Some crankshaft position sensors are found in the front part of the engine, in the pulley, and others are already assembled on the engine flywheel.
