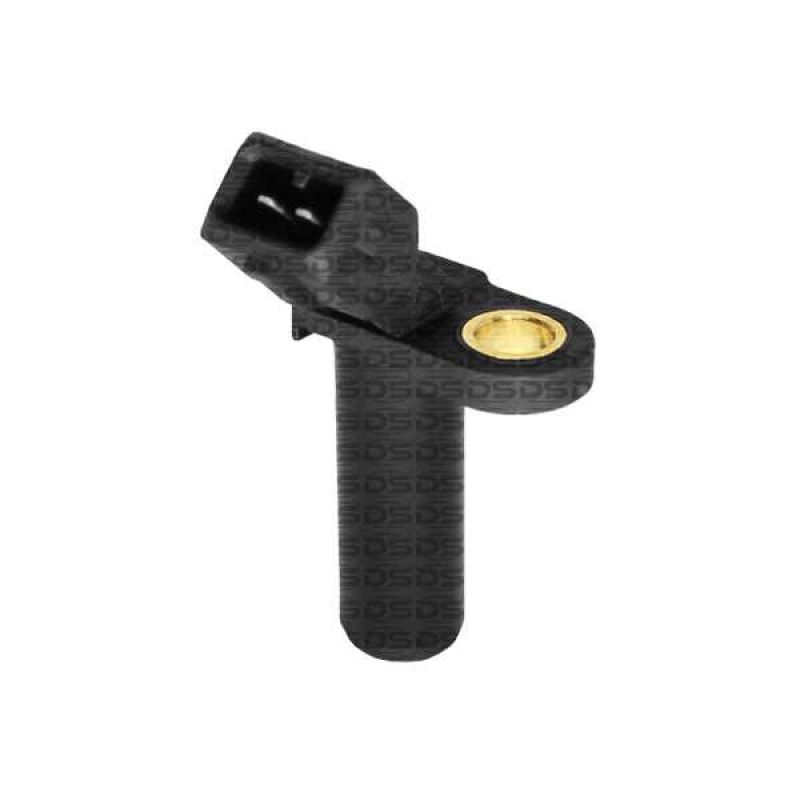

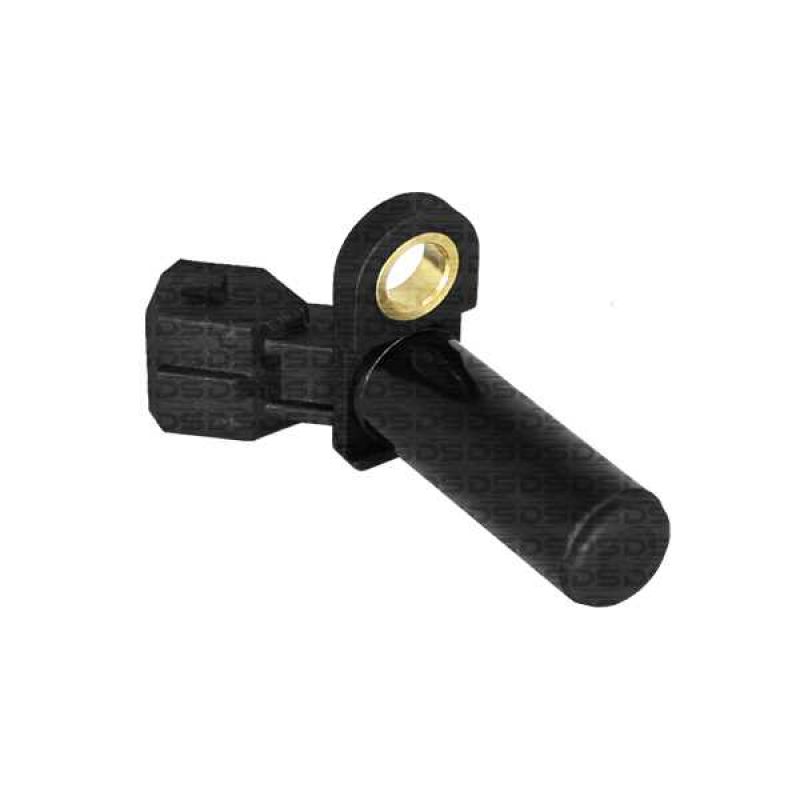

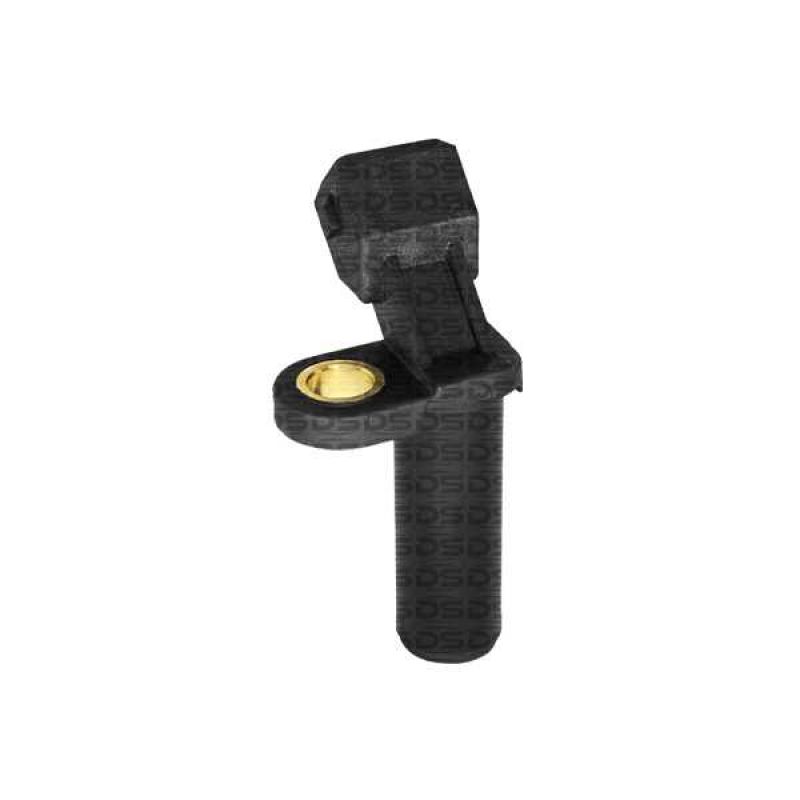

Crankshaft Position Sensor (PMS-CKP)

DS Code:1875
Ways: 02

E-Klass:ESR4305
FORD:948F6C315AA
FORD:YS6A6C315BA
GAUSS:GS8305
MTE:70512
TSA:T080007
Manufacturer Model Engine Fuel Year Note
Ford Courier 1.3 4Cil 8v Gasoline 97 >
Ford Courier 1.4 4Cil 16v Gasoline 97 >
Ford Courier 1.6 4Cil 8v Flex 07 > 13
Ford Courier 1.6 4Cil 8v Gasoline 99 >
Ford Ecosport 1.0 4Cil 8v Gasoline 03 > 04
Ford Ecosport 1.6 4Cil 8v Gasoline 03 > 04
Ford Ecosport 2.0 4Cil 16v Gasoline 03 > 04
Ford Escort 1.6 4Cil 8v Gasoline 00 > 03
Ford Escort 1.8 4Cil 16v Gasoline 97 > 03
Ford Fiesta 1.0 4Cil 8v Gasoline 96 > 04
Ford Fiesta 1.3 4Cil 8v Gasoline 96 >
Ford Fiesta 1.4 4Cil 16v Gasoline 96 >
Ford Focus 1.6 4Cil 8v Flex 07 > 09
Ford Focus 1.6 4Cil 8v Gasoline 04 >
Ford Focus 1.8 4Cil 16v Gasoline 00 > 04
Ford Focus 2.0 4Cil 16v Gasoline 00 >
Ford Ka 1.0 4Cil 8v Flex 00 > 07
Ford Ka 1.0 4Cil 8v Gasoline 97 >
Ford Ka 1.3 4Cil 8v Gasoline 97 > 98
Ford Ka 1.8 4Cil 8v Flex 01 > 07
Ford Mondeo 1.8 4Cil 16v Gasoline 94 > 01
Ford Mondeo 2.0 4Cil 16v Gasoline 94 > 01

Details Crankshaft Position Sensor (PMS-CKP)

The crankshaft position sensor sends an electrical signal to the injection module that allows the synchronization of the system: injection timing, ignition advance, high out of gear, etc.

The crankshaft position sensor set is basically comprised of a spur gear or phonic wheel, permanent magnet, ferromagnetic core, coil, coil wires, braided shield, and sensor connector.

The sensor cable is entirely covered by a metal mesh referred to as braided shield. This mesh is linked to a grounding line and prevents electromagnetic interferences from disturbing the pulse pattern sent by the sensor.

Some crankshaft position sensors are found in the front part of the engine, in the pulley, and others are already assembled on the engine flywheel.
