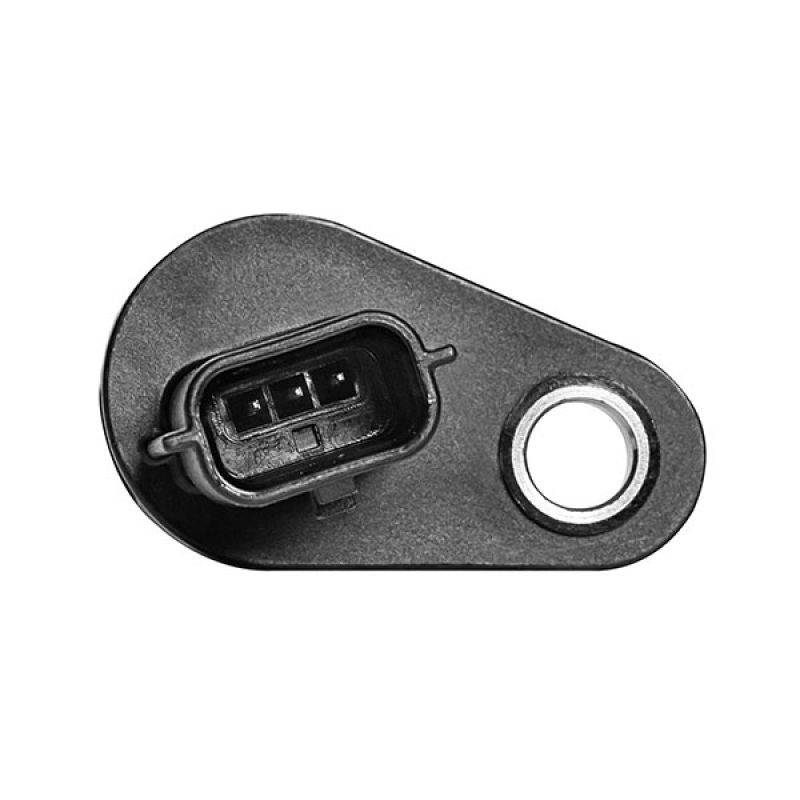

Crankshaft Position Sensor (PMS-CKP)

DS Code:1877
Technology: Hall | Ways: 03


E-KLASS:ESR4209
GAUSS:GS9020
MAXAUTO:0802308824
MTE:70436
NISSAN:237311VA0A
NISSAN:23731EN20A
RENAULT:237311VA0A
RENAULT:23731EN20A

Manufacturer	Model	Engine	Fuel	Year
Nissan	Livina	1.6 4Cil 16v	Flex	09 >
Nissan	Livina	1.8 4Cil 16v	Flex	09 >
Nissan	March	1.0 4Cil 8v	Flex	11 >
Nissan	March	1.6 4Cil 16v	Flex	11 >
Nissan	Sentra	2.0 4Cil 16v	Gasoline	07 > 09
Nissan	Sentra	2.0 4Cil 16v	Flex	09 > 12
Nissan	Tiida	1.8 4Cil 16v	Gasoline	07 >
Nissan	Tiida	1.8 4Cil 16v	Flex	09 > 13
Nissan	Versa	1.6 4Cil 16v	Flex	11 >
Renault	Fluence	2.0 4Cil 16v	Flex	11 >

Details Crankshaft Position Sensor (PMS-CKP)

The crankshaft position sensor sends an electrical signal to the injection module that allows the synchronization of the system: injection timing, ignition advance, high out of gear, etc.

The crankshaft position sensor set is basically comprised of a spur gear or phonic wheel, permanent magnet, ferromagnetic core, coil, coil wires, braided shield, and sensor connector.

The sensor cable is entirely covered by a metal mesh referred to as braided shield. This mesh is linked to a grounding line and prevents electromagnetic interferences from disturbing the pulse pattern sent by the sensor.

Some crankshaft position sensors are found in the front part of the engine, in the pulley, and others are already assembled on the engine flywheel.
