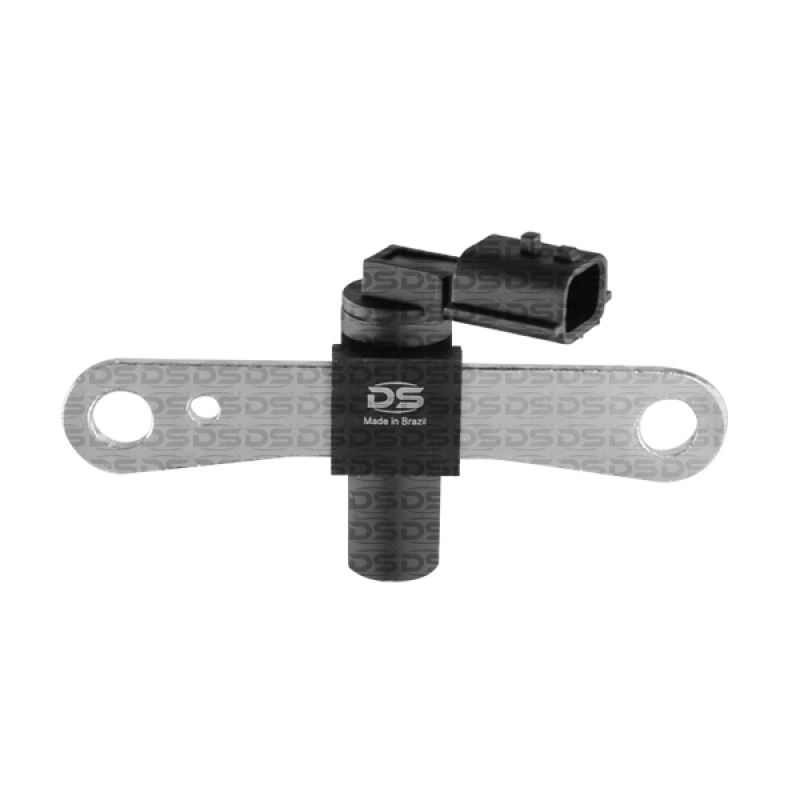

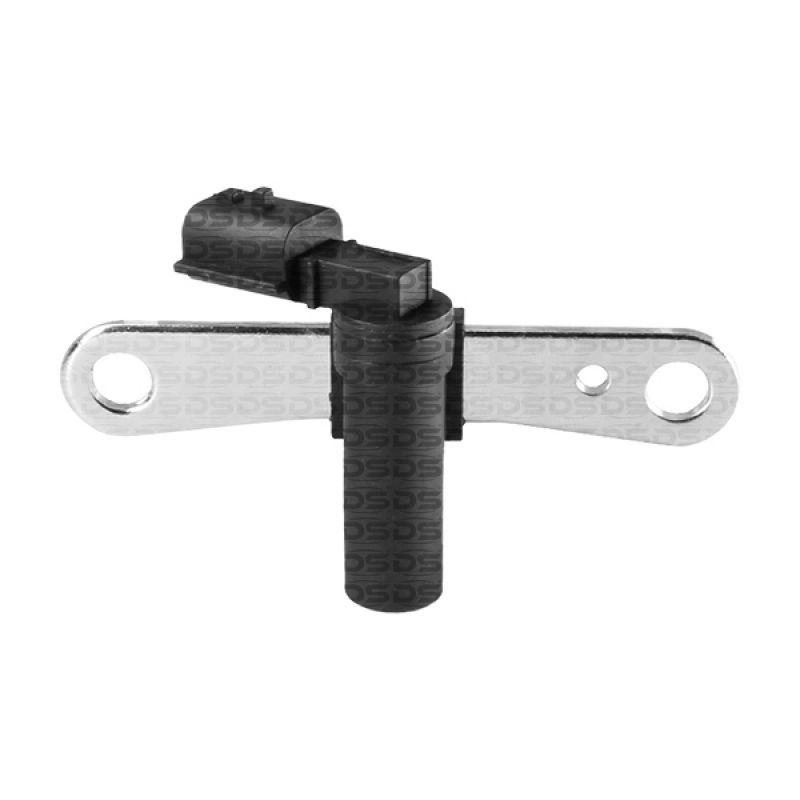

Crankshaft Position Sensor (PMS-CKP)

DS Code:1878
Technology: Inductive | Ways: 02 | Note: The sensors 1878 and 1883 have a similar appearance, but they are not interchangeable. The original applications and codes provided on the site must be strictly followed.


EURO:796497
FACET:90658
MAXAUTO:0800788863
MTE:70306
RENAULT:8200746497

Manufacturer	Model	Engine	Fuel	Year
Renault	Duster	1.6 4Cil 16v	Flex	08 >
Renault	Logan	1.6 4Cil 16v	Flex	08 >
Renault	Sandero	1.6 4Cil 16v	Flex	08 >

Details Crankshaft Position Sensor (PMS-CKP)

The crankshaft position sensor sends an electrical signal to the injection module that allows the synchronization of the system: injection timing, ignition advance, high out of gear, etc.

The crankshaft position sensor set is basically comprised of a spur gear or phonic wheel, permanent magnet, ferromagnetic core, coil, coil wires, braided shield, and sensor connector.

The sensor cable is entirely covered by a metal mesh referred to as braided shield. This mesh is linked to a grounding line and prevents electromagnetic interferences from disturbing the pulse pattern sent by the sensor.

Some crankshaft position sensors are found in the front part of the engine, in the pulley, and others are already assembled on the engine flywheel.
