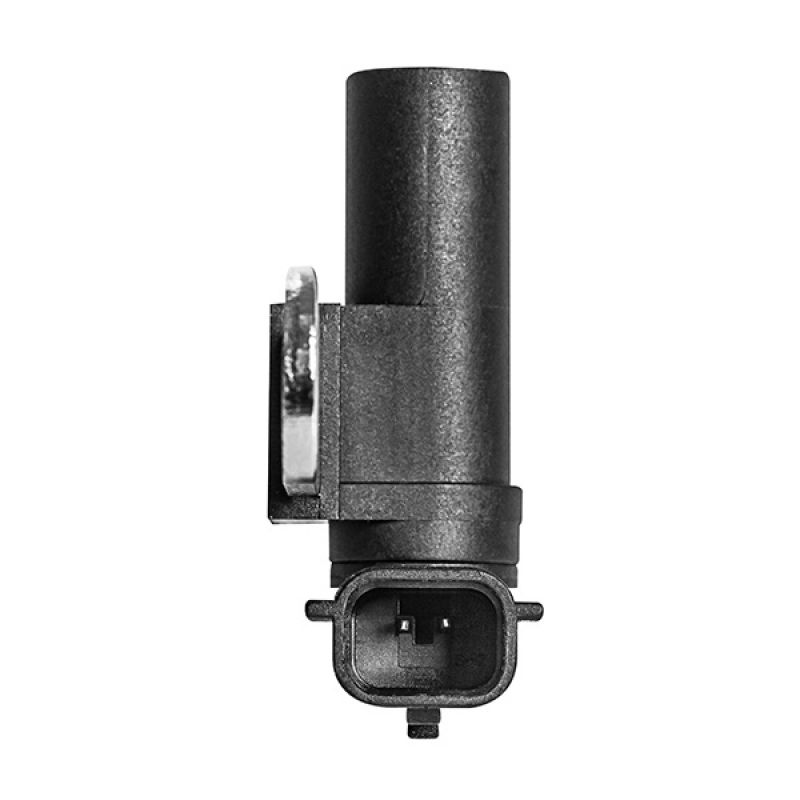

Crankshaft Position Sensor (PMS-CKP)

DS Code:1883
Technology: Inductive | Ways: 02 | Note: The sensors 1883 and 1878 have a similar appearance, but they are not interchangeable. The original applications and codes provided on the site must be strictly followed.


DPL:508182
E-Klass:ESR4020
FACET:90659
MAXAUTO:0800778862
MTE:70315
RENAULT:8200772182
TSA:T080042

Manufacturer	Model	Engine	Fuel	Year
Renault	Logan	1.0 4Cil 16v	Flex	09 >
Renault	Logan	1.0 4Cil 8v	Flex	09 >
Renault	Logan	1.6 4Cil 16v	Flex	09 >
Renault	Sandero	1.0 4Cil 16v	Flex	09 >
Renault	Sandero	1.0 4Cil 8v	Flex	09 >
Renault	Sandero	1.6 4Cil 16v	Flex	09 >

Details Crankshaft Position Sensor (PMS-CKP)

The crankshaft position sensor sends an electrical signal to the injection module that allows the synchronization of the system: injection timing, ignition advance, high out of gear, etc.

The crankshaft position sensor set is basically comprised of a spur gear or phonic wheel, permanent magnet, ferromagnetic core, coil, coil wires, braided shield, and sensor connector.

The sensor cable is entirely covered by a metal mesh referred to as braided shield. This mesh is linked to a grounding line and prevents electromagnetic interferences from disturbing the pulse pattern sent by the sensor.

Some crankshaft position sensors are found in the front part of the engine, in the pulley, and others are already assembled on the engine flywheel.
