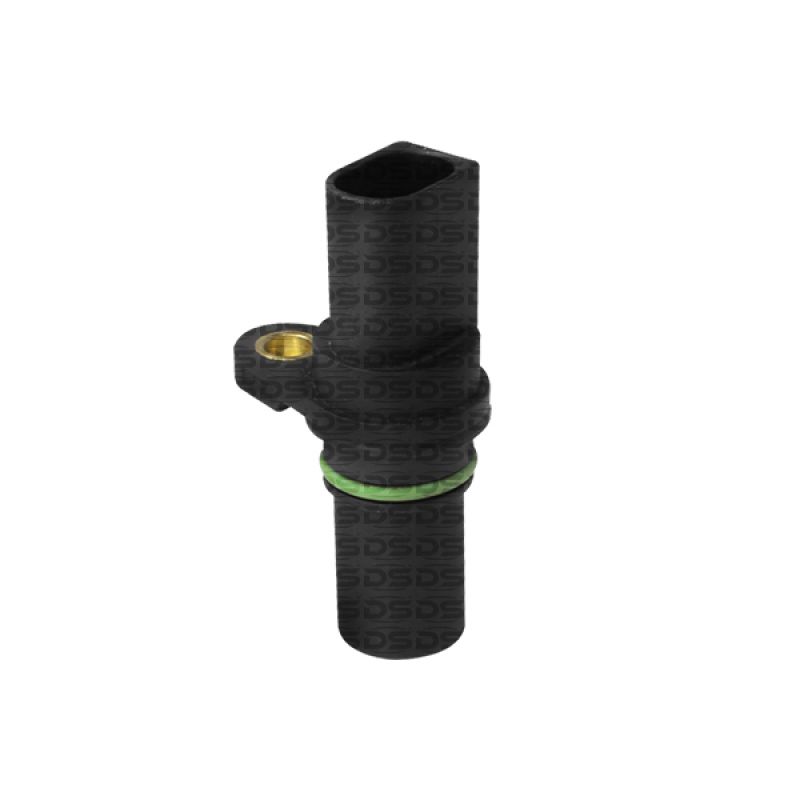

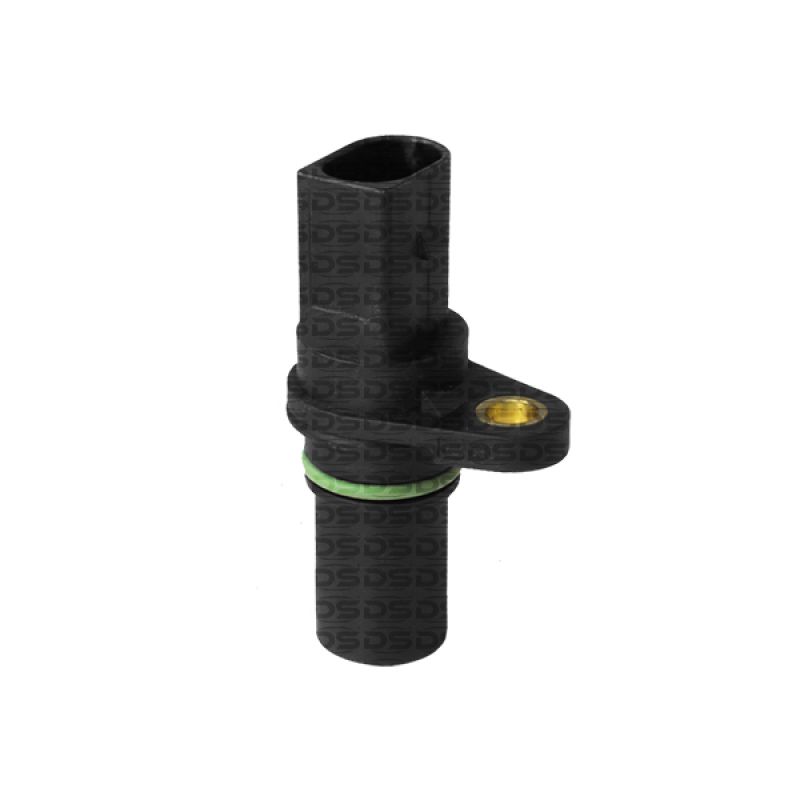

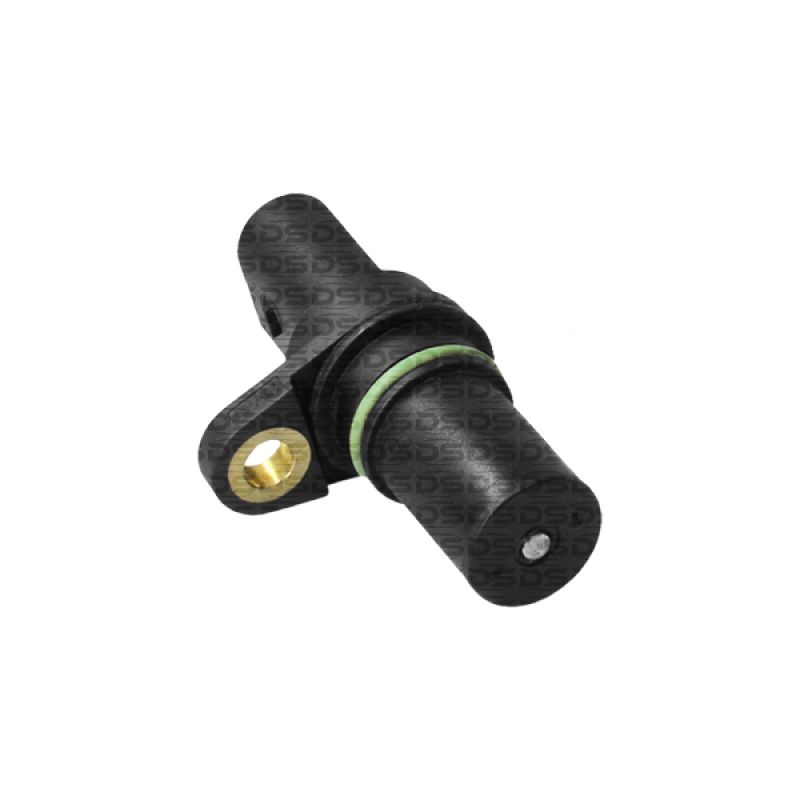

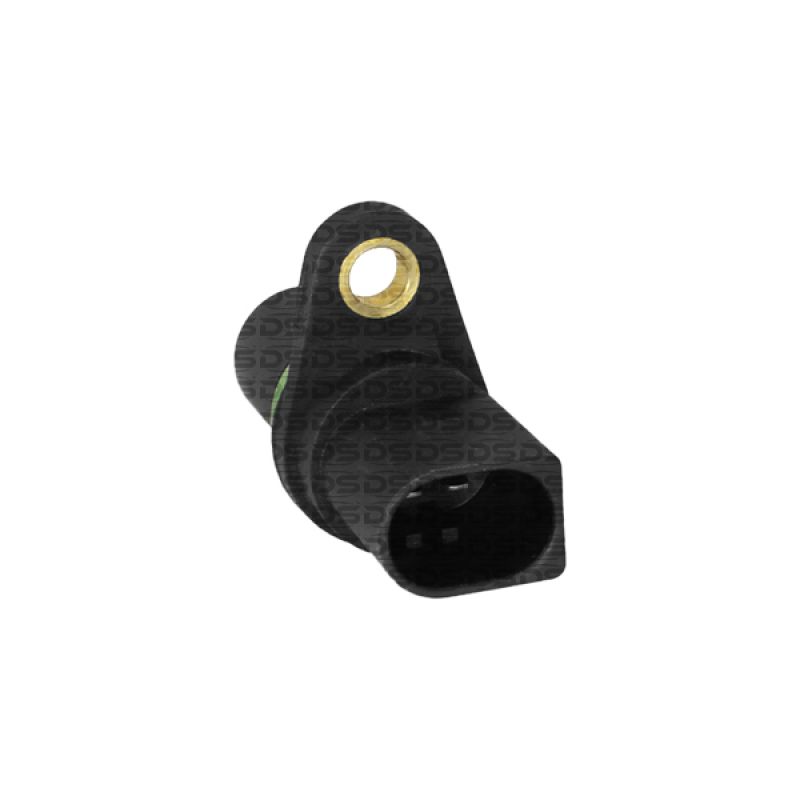

Crankshaft Position Sensor (PMS-CKP)

DS Code:1890
Ways: 02 | Technology: Inductive


AUDI:06H906433
EURO:799064
FACET:90640
MAXAUTO:080041
MTE:70672
VW:06H906433

Manufacturer	Model	Engine	Fuel	Year
Audi	A4	2.0 4Cil 16v	Gasoline	09 > 12
Audi	A5	2.0 4Cil 16v	Gasoline	08 > 12
Volkswagen	Jetta	2.0 4Cil 16v	Gasoline	11 > 18
Volkswagen	New Beetle	2.0 4Cil 16v	Gasoline	13 > 15
Volkswagen	Passat	2.0 4Cil 16v	Gasoline	09 > 15
Volkswagen	Tiguan	2.0 4Cil 16v	Gasoline	09 > 17
Volkswagen	Touareg	3.6 V6 24v	Gasoline	11 > 12

Details Crankshaft Position Sensor (PMS-CKP)

The crankshaft position sensor sends an electrical signal to the injection module that allows the synchronization of the system: injection timing, ignition advance, high out of gear, etc.

The crankshaft position sensor set is basically comprised of a spur gear or phonic wheel, permanent magnet, ferromagnetic core, coil, coil wires, braided shield, and sensor connector.

The sensor cable is entirely covered by a metal mesh referred to as braided shield. This mesh is linked to a grounding line and prevents electromagnetic interferences from disturbing the pulse pattern sent by the sensor.

Some crankshaft position sensors are found in the front part of the engine, in the pulley, and others are already assembled on the engine flywheel.
