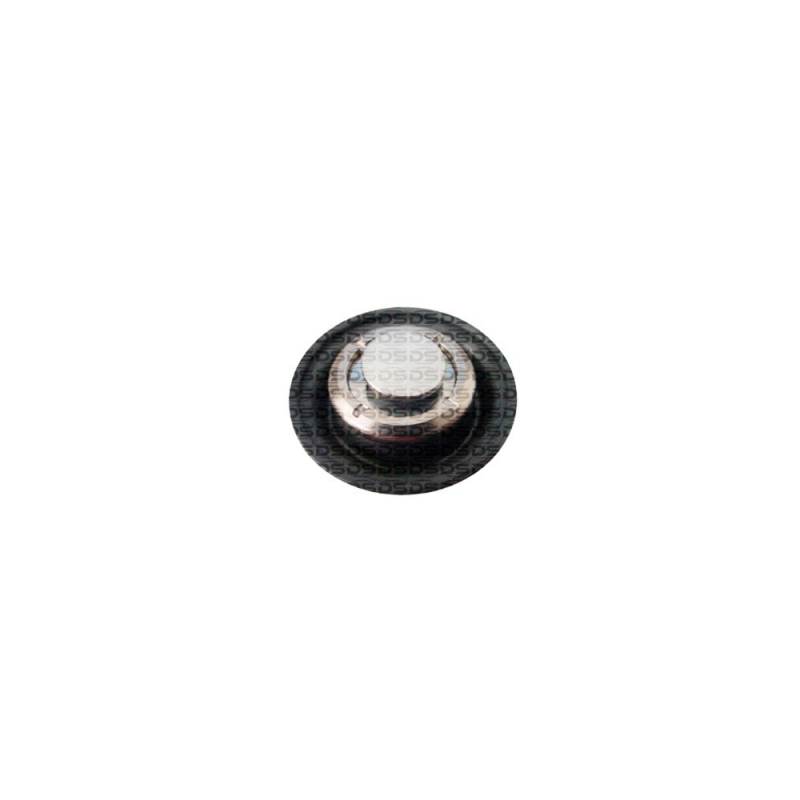

Diaphragm
DS Code:1402
System: TBI / EFI (Rochester)
Manufacturer | Model | Engine | Fuel | Year | Note |
---|---|---|---|---|---|
GM | Blazer | - | - | - | |
GM | Corsa | 1.0 4Cil 8v | - | - | |
GM | Corsa | 1.4 4Cil 8v | - | - | |
GM | Corsa | 1.6 4Cil 8v | - | - | |
GM | Ipanema | 1.8 4Cil 8v | - | - | |
GM | Ipanema | 2.0 4Cil 8v | - | - | |
GM | Kadett | - | - | - | |
GM | Monza | - | - | - | |
GM | S10 | - | - | - |
Details Diaphragm
The fuel injection system is intended to provide the engine with better and more economic performance under all operating conditions, providing a more accurate fuel dosage with faster response.
It adjusts the pressure in the entire fuel line, from the outlet of the pump to the injection nozzles.
The Diaphragm is a pressure regulator used in single-point injection systems (it has only 1 injection nozzle) located at the throttle body.
