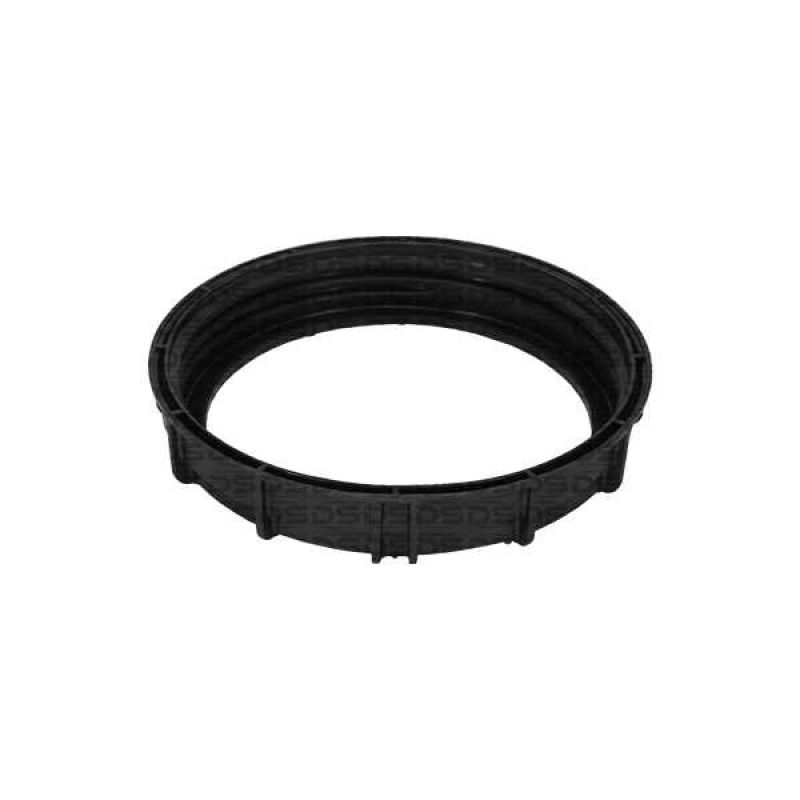

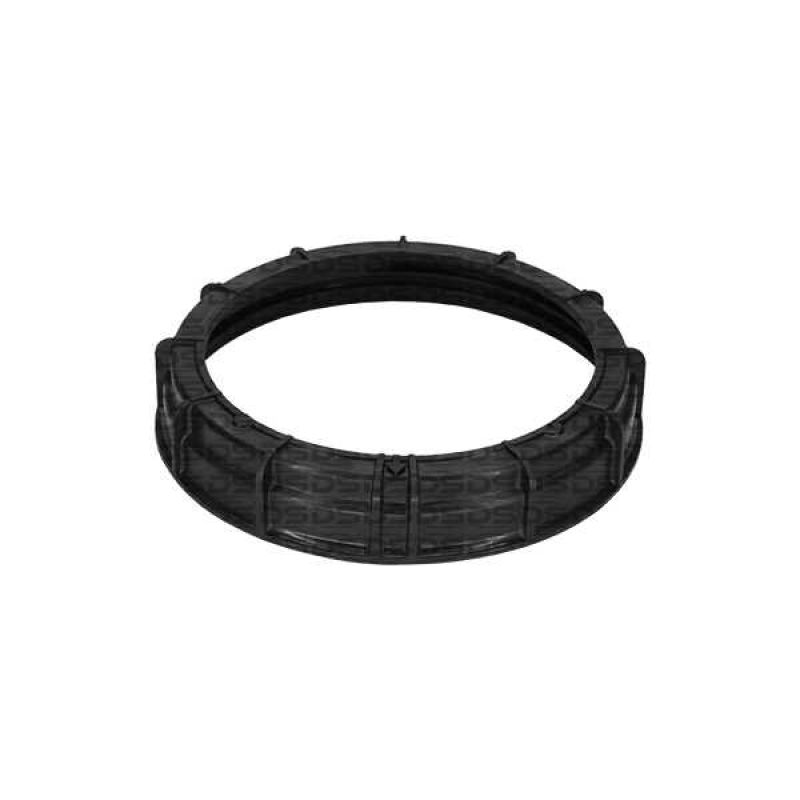

Fuel Module Retaining Nut

DS Code:27027
Ø Internal (mm): 121 | Ø External (mm): 155 | Height (mm): 26,70


ASSVE:AVG0059
DSC:4029
RENAULT:173413441R
RENAULT:173411245R
RENAULT:7320703AA
RENAULT:8200183136
RENAULT:7701207449

Manufacturer	Model	Engine	Fuel	Year
Renault	Alliance	2.0 4Cil 16v	Gasoline	97 >
Renault	Captur	1.6 4Cil 16v	Flex	17 >
Renault	Captur	2.0 4Cil 16v	Flex	17 >
Renault	Clio	1.0 4Cil 16v	Flex	00 > 16
Renault	Clio	1.0 4Cil 8v	Flex	00 > 05
Renault	Clio	1.2 4Cil 16v	Gasoline	00 >
Renault	Clio	1.4 4Cil 16v	Gasoline	99 >
Renault	Clio	1.6 4Cil 16v	Gasoline	98 >
Renault	Duster	1.6 4Cil 16v	Flex	11 >
Renault	Duster	1.6 4Cil 16v	Flex	11 >
Renault	Duster	2.0 4Cil 16v	Flex	11 >
Renault	Duster	2.0 4Cil 16v	Flex	11 >
Renault	Fluence	1.6 4Cil 16v	Flex	11 >
Renault	Fluence	2.0 4Cil 16v	Flex	11 >
Renault	Grand Scenic	2.0 4Cil 16v	Flex	08 > 12
Renault	Kangoo	1.2 4Cil 8v	Gasoline	01 > 10
Renault	Kangoo	1.4 4Cil 8v	Gasoline	97 > 08
Renault	Kangoo	1.9 4Cil 8v	Diesel	97 >
Renault	Laguna	2.0 4Cil 16v	Gasoline	02 > 04
Renault	Laguna	3.0 4Cil 24v	Gasoline	02 > 04
Renault	Logan	1.0 4Cil 16v	Flex	07 > 14
Renault	Logan	1.2 4Cil 16v	Gasoline	04 >
Renault	Logan	1.4 4Cil 8v	Gasoline	04 >
Renault	Logan	1.6 4Cil 16v	Gasoline	04 >
Renault	Logan	1.6 4Cil 16v	Flex	10 > 14
Renault	Logan	1.6 4Cil 8v	Flex	07 > 13
Renault	Master	2.3 4Cil 16v	Diesel	13 >
Renault	Master	2.5 4Cil 16v	Diesel	03 > 13
Renault	Master	2.8 4Cil 16v	Diesel	02 > 04
Renault	Megane	1.4 4Cil 16v	Gasoline	02 > 11
Renault	Megane	1.6 4Cil 16v	Gasoline	96 >
Renault	Megane	1.6 4Cil 16v	Flex	06 > 13
Renault	Megane	2.0 4Cil 16v	Flex	06 > 13
Renault	Megane	2.0 4Cil 16v	Gasoline	02 >
Renault	Sandero	1.0 3Cil 12v	Flex	16 >
Renault	Sandero	1.0 4Cil 16v	Flex	08 >
Renault	Sandero	1.2 4Cil 16v	Gasoline	08 >
Renault	Sandero	1.4 4Cil 8v	Gasoline	08 >
Renault	Sandero	1.6 4Cil 16v	Flex	08 >
Renault	Sandero	1.6 4Cil 8v	Flex	09 >
Renault	Sandero	1.6 4Cil 8v	Gasoline	08 >
Renault	Sandero	2.0 4Cil 16v	Flex	16 >
Renault	Scenic	1.6 4Cil 16v	Gasoline	97 >
Renault	Symbol	1.0 4Cil 16v	Gasoline	99 > 05
Renault	Symbol	1.6 4Cil 16v	Flex	08 > 11
Renault	Symbol	1.6 4Cil 8v	Flex	08 > 11

Details Fuel Module Retaining Nut

The fixing nut, also known as the thread nut, is a plastic element that has the function of fixing the fuel module in the tank. It is worth mentioning that this fixation is performed only in plastic tanks, which means that it is not applicable in vehicles with a metal tank.

In addition to the fixation, the nut works together with the gasket, being responsible for sealing the entire system and, thus, preventing odors and possible fuel leaks.
