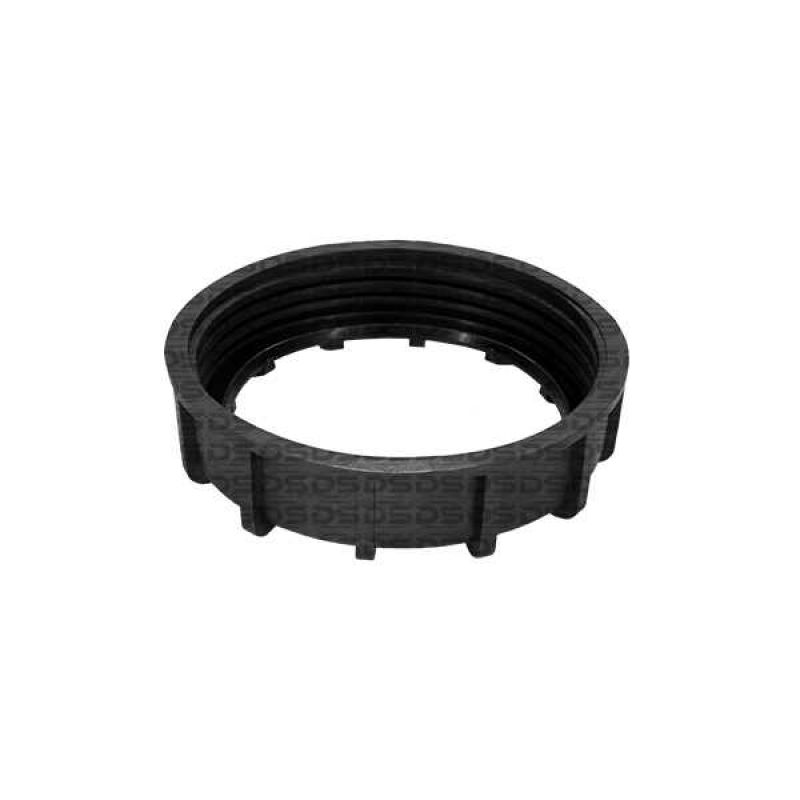

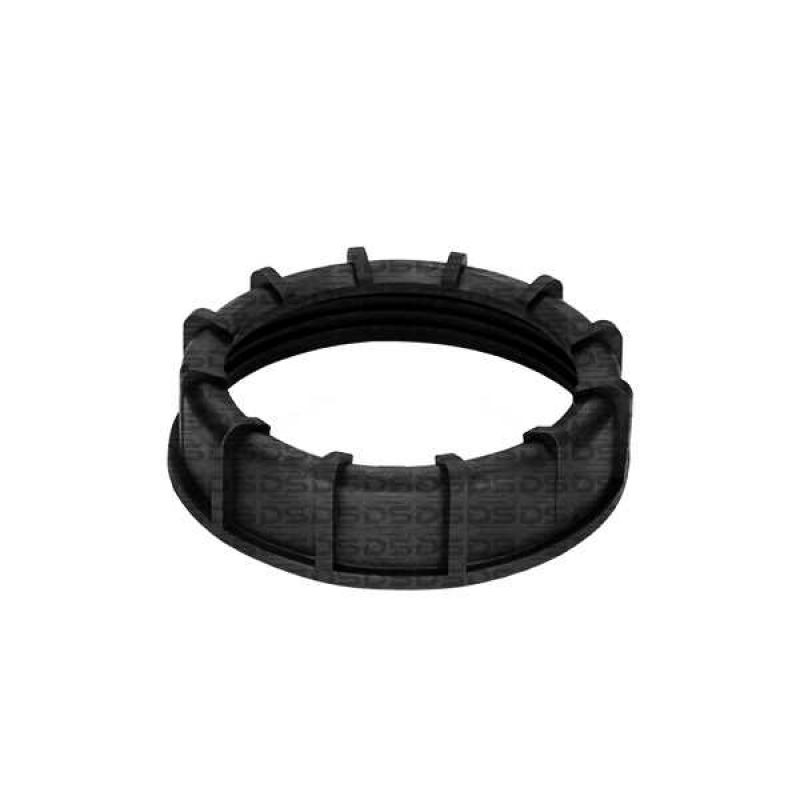

Fuel Module Retaining Nut
DS Code:27032
Ø External (mm): 144,2 | Ø Internal (mm): 108,5 | Height (mm): 36,8
| Manufacturer | Model | Engine | Fuel | Year | Note |
|---|---|---|---|---|---|
| GM | Agile | 1.4 4Cil 8v | Flex | 10 > 14 | |
| GM | Celta | 1.0 4Cil 8v | Flex | 09 > 16 | |
| GM | Corsa | 1.0 4Cil 8v | Flex | 11 > 17 | |
| GM | Prisma | 1.0 4Cil 8v | Flex | 09 > 12 | |
| GM | Prisma | 1.4 4Cil 8v | Flex | 09 > 12 |
Details Fuel Module Retaining Nut
The fixing
nut, also known as the thread nut, is a plastic element that has the function
of fixing the fuel module in the tank. It is worth mentioning that this
fixation is performed only in plastic tanks, which means that it is not
applicable in vehicles with a metal tank.
In addition
to the fixation, the nut works together with the gasket, being responsible for
sealing the entire system and, thus, preventing odors and possible fuel leaks.
