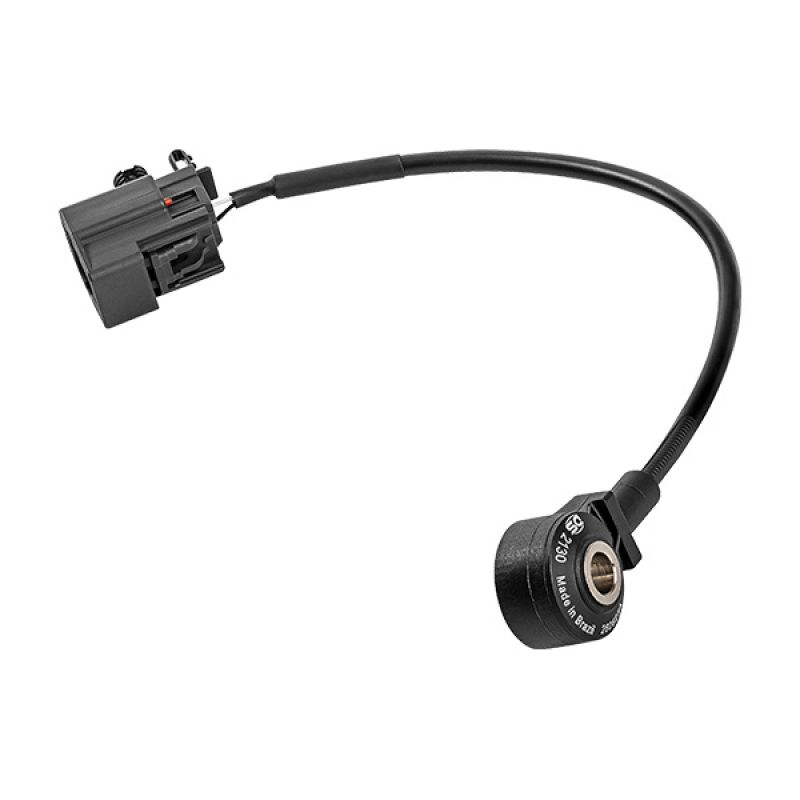

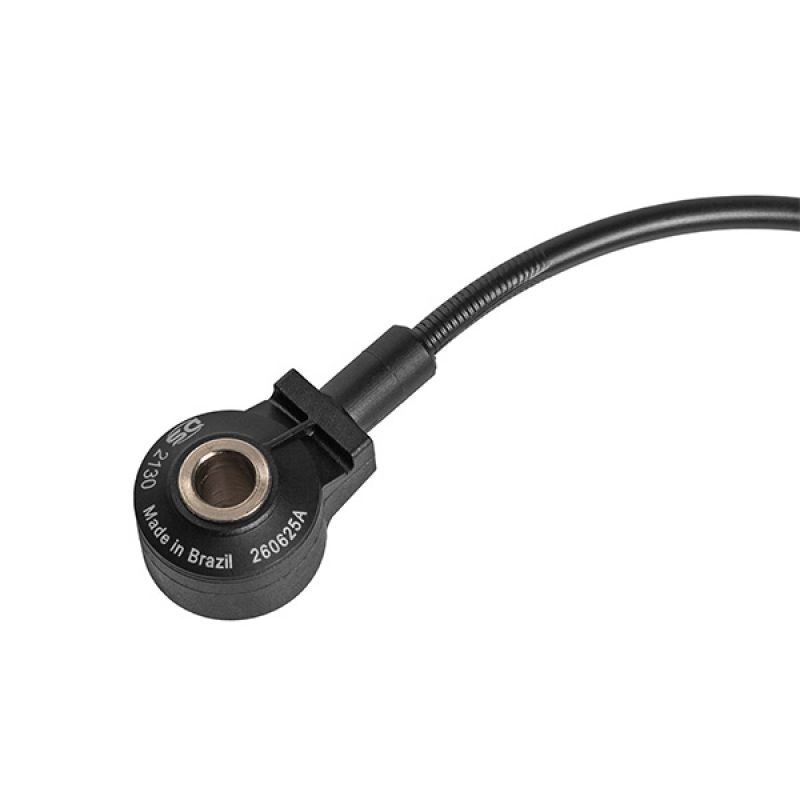

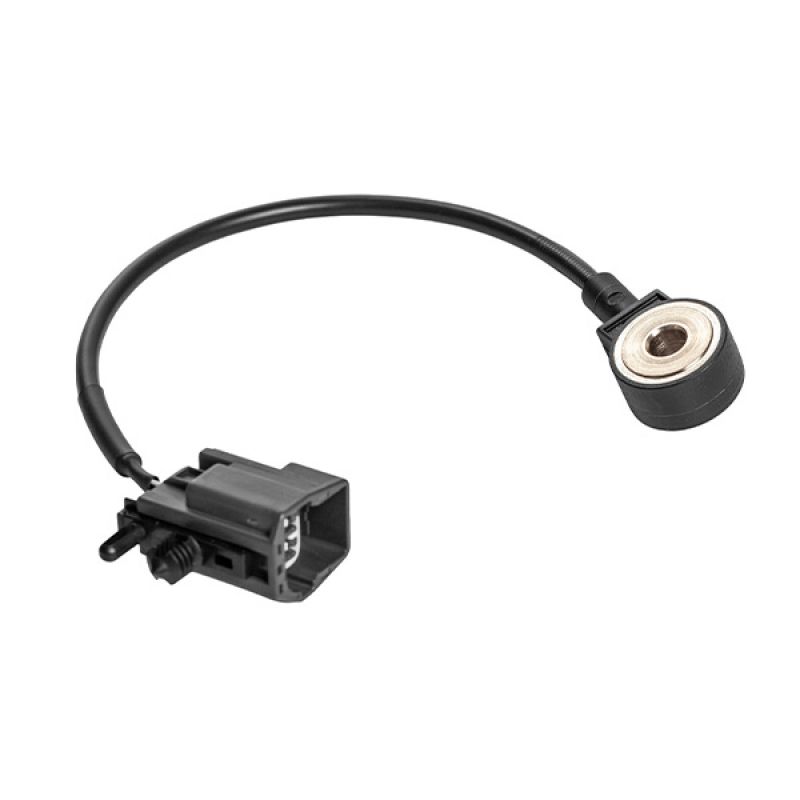

Knock Sensor (KS)

DS Code:2130

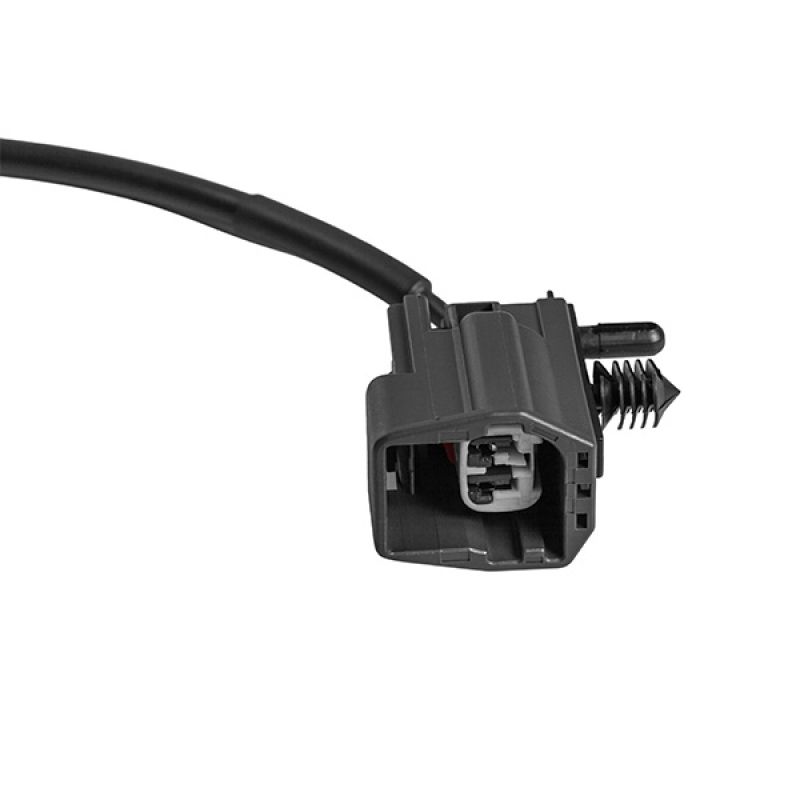

Cable length (cm): 28 | Ways: 02 | Note: Original part with the gray connector


E-Klass:ESD3012
FORD:1S7Z12A699BB
MTE:70023

Manufacturer	Model	Engine	Fuel	Year	Note
Ford	Ecosport	2.0 4Cil 16v	Flex	08 > 12
Ford	Ecosport	2.0 4Cil 16v	Gasoline	03 > 08
Ford	Focus	2.0 4Cil 16v	Flex	09 > 13
Ford	Focus	2.0 4Cil 16v	Gasoline	05 > 09
Ford	Fusion	2.0 4Cil 16v	Gasoline	13 > 18	Ecoboost
Ford	Fusion	2.3 4Cil 16v	Gasoline	06 > 09
Ford	Fusion	2.5 4Cil 16v	Flex	12 > 18
Ford	Mondeo	2.0 4Cil 16v	Gasoline	01 > 05
Ford	Ranger	2.3 4Cil 16v	Gasoline	01 > 12
Ford	Ranger	2.5 4Cil 16v	Flex	12 > 19

Details Knock Sensor (KS)

The knock sensor captures (identifies) the knock process and informs the Electronic Control Unit (ECU), which will gradually correct the ignition point, if necessary, avoiding an irregular ignition, providing better and more economic performance for the engines.

In order to avoid interference of external signals, the cable that links the sensor to the ECU is shielded and formed by a grounded covering mesh.

The knock sensor is screwed in the engine block next to the ignition cylinder.
