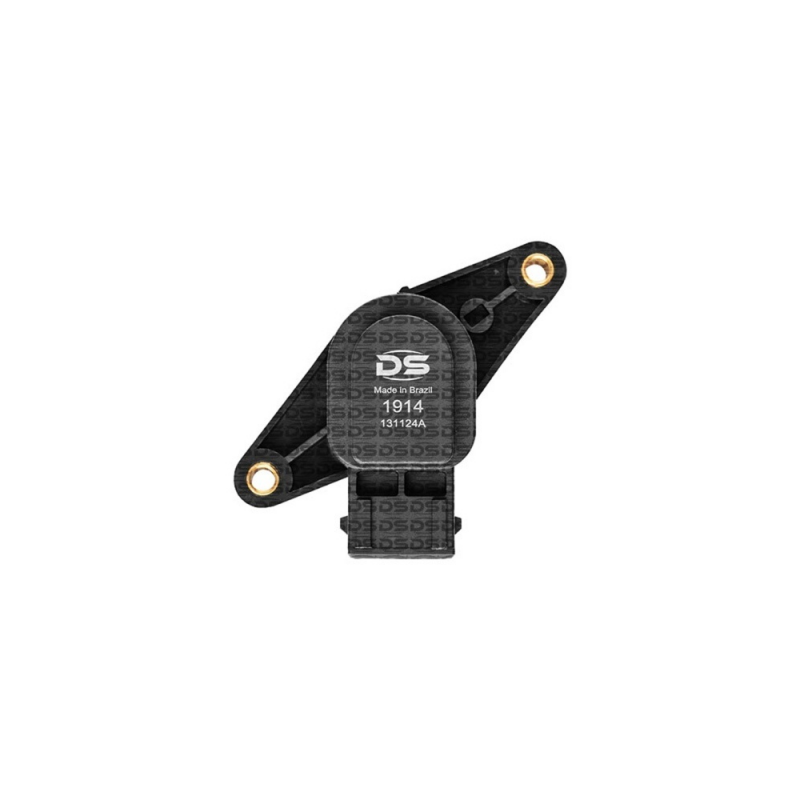

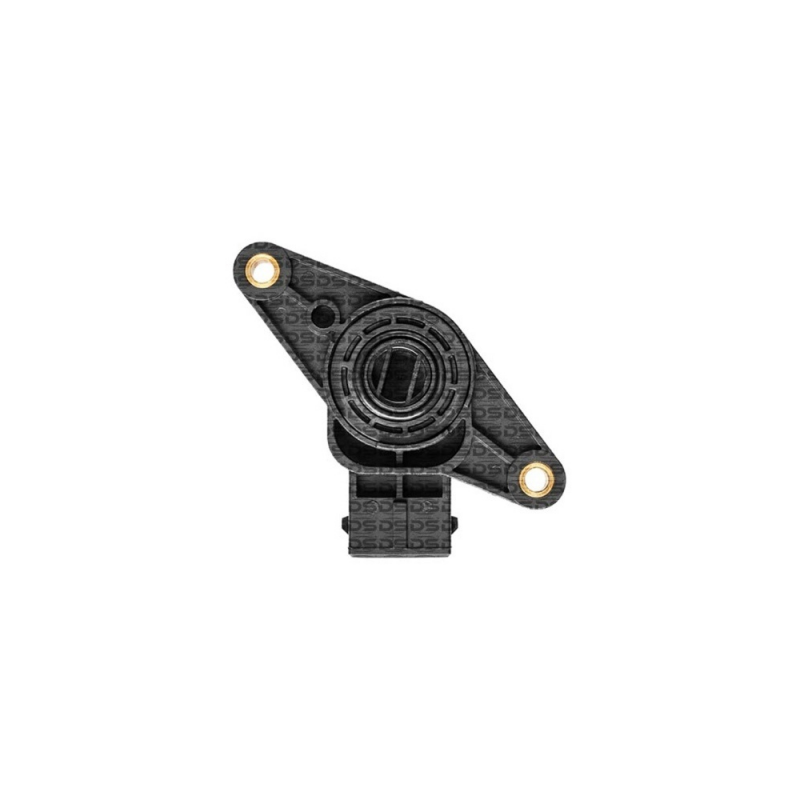

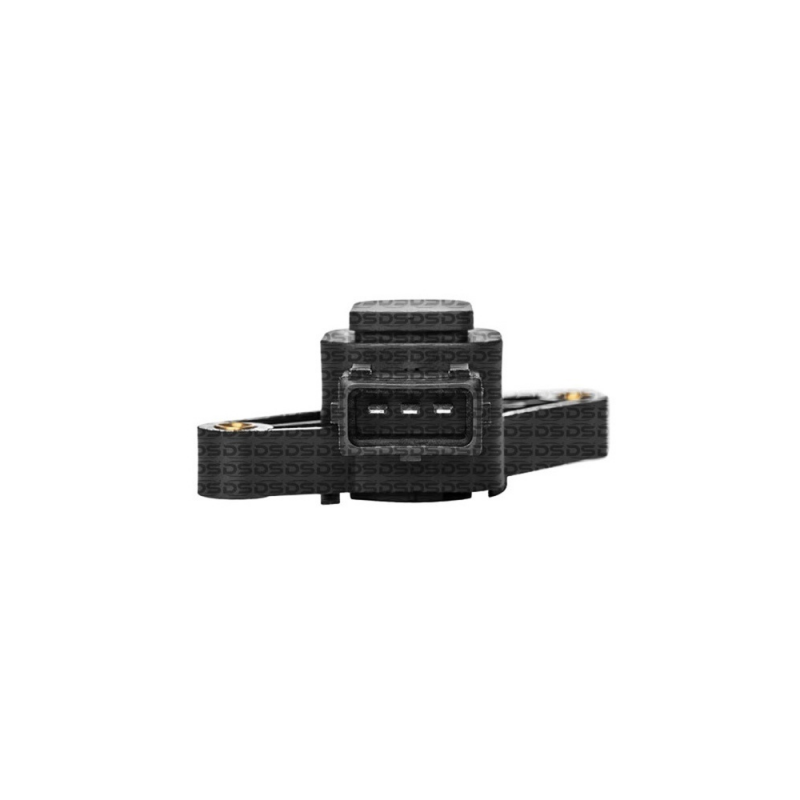

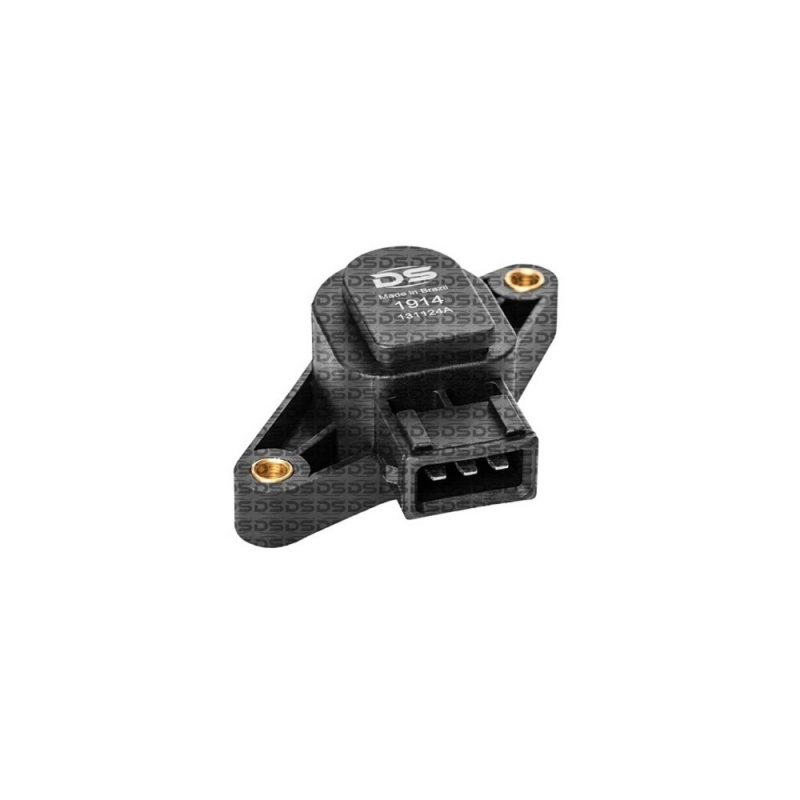

Throttle Position Sensor (TPS)

DS Code:1914

CITROËN:95658554
CITROËN:9565855480
E-Klass:ESB554
FIAT:9565855480
MAXAUTO:060012
MAXAUTO:5713
MTE:7269
Marelli:230016080057
Marelli:PF90018
PEUGEOT:95658554
PEUGEOT:9565855480
SIEMENS:19200F
Vogel:11090
Manufacturer Model Engine Fuel Year Note
Citroën BX 1.6 4Cil 8v Gasoline 89 > 94
Citroën Evasion 2.0 4Cil 16v Gasoline 00 >
Citroën Jumper 2.0 4Cil 8v Gasoline 94 > 02
Citroën Synergie 2.0 4Cil 8v Diesel 94 > 02 Hdi
Citroën Xantia 1.6 4Cil 8v Gasoline 93 > 98
Citroën Xantia 1.8 4Cil 8v Gasoline 93 > 98
Citroën Xantia 2.0 4Cil 8v Gasoline 93 > 98
Citroën ZX 1.6 4Cil 8v Gasoline 91 > 97
Citroën ZX 2.0 4Cil 8v Gasoline 92 > 97
Fiat Ducato 2.0 4Cil 8v Gasoline 94 > 02
Fiat Ulysse 2.0 4Cil 8v Gasoline 94 > 02
Peugeot 205 1.6 4Cil 16v Gasoline 94 > 02
Peugeot 306 1.8 4Cil 16v Gasoline 93 > 02
Peugeot 306 2.0 4Cil 8v Gasoline 93 > 02
Peugeot 309 1.6 4Cil 16v Gasoline 87 > 96
Peugeot 405 1.6 4Cil 8v Gasoline 92 > 95
Peugeot 405 1.8 4Cil 8v Gasoline 92 > 96
Peugeot 405 2.0 4Cil 8v Gasoline 92 > 96
Peugeot 806 2.0 4Cil 8v Diesel 94 > 02 Hdi
Peugeot Boxer 2.0 4Cil 8v Gasoline 94 > 02

Details Throttle Position Sensor (TPS)

With a new technology, the DS throttle position sensor has an electronic sensor that exempts the product from corrosion, wear, and misuse problems, ensuring greater accuracy, repeatability, and durability.

The Throttle Position Sensor (TPS) is used to monitor the accelerator position in an internal combustion engine.

This sensor is usually connected to the throttle axis to directly control the position of the accelerator throttle valve.

Through the TPS, the Electronic Control Unit (ECU) obtains instantaneous information about the throttle position, which allows the central to identify the power required by the driver.

This information will be used to help the calculation of the injection timing and ignition advance, among other operating strategies.
