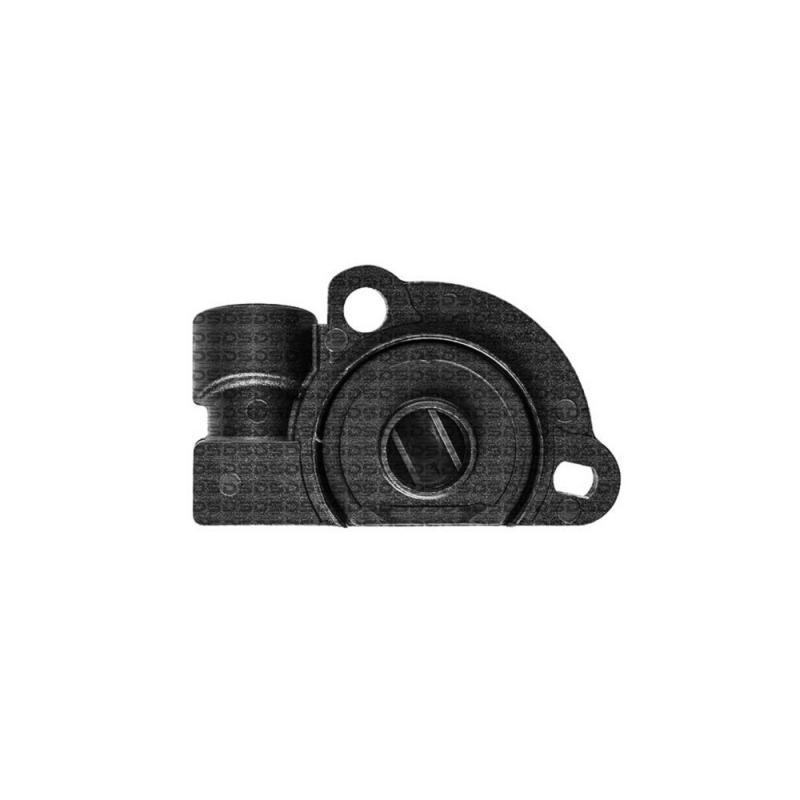

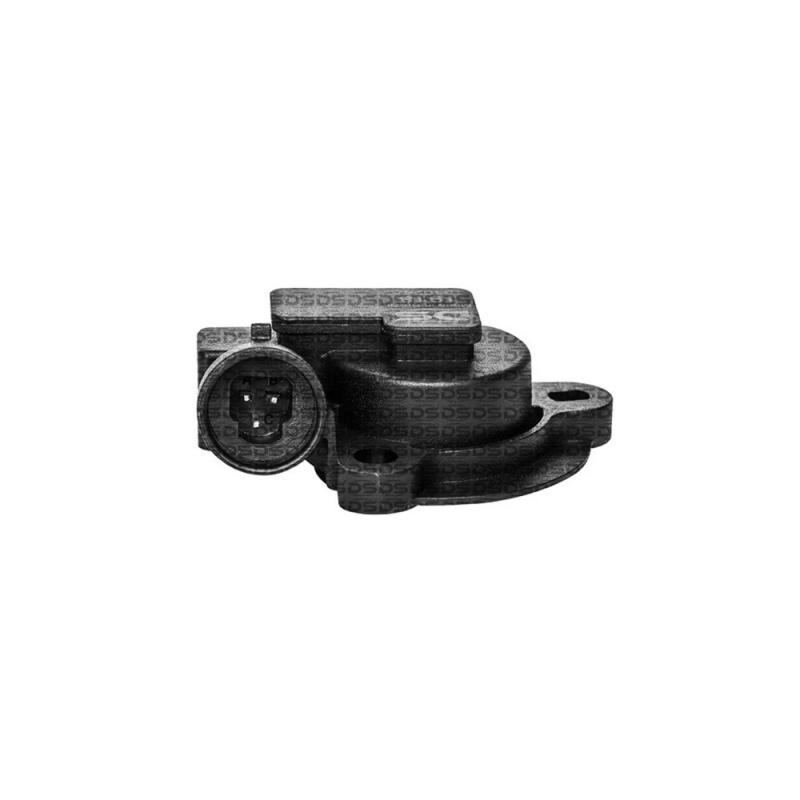

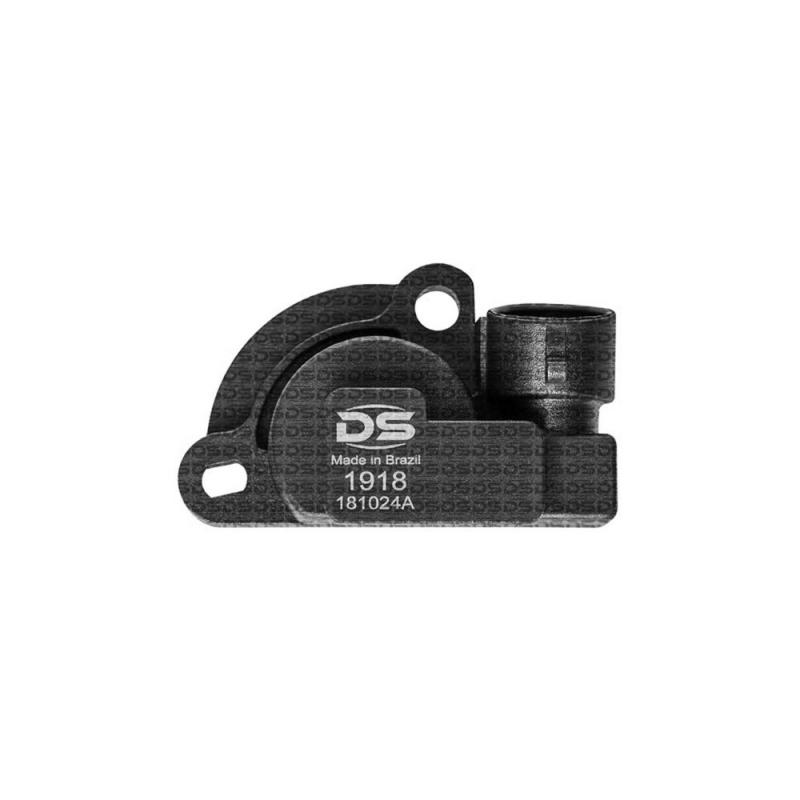

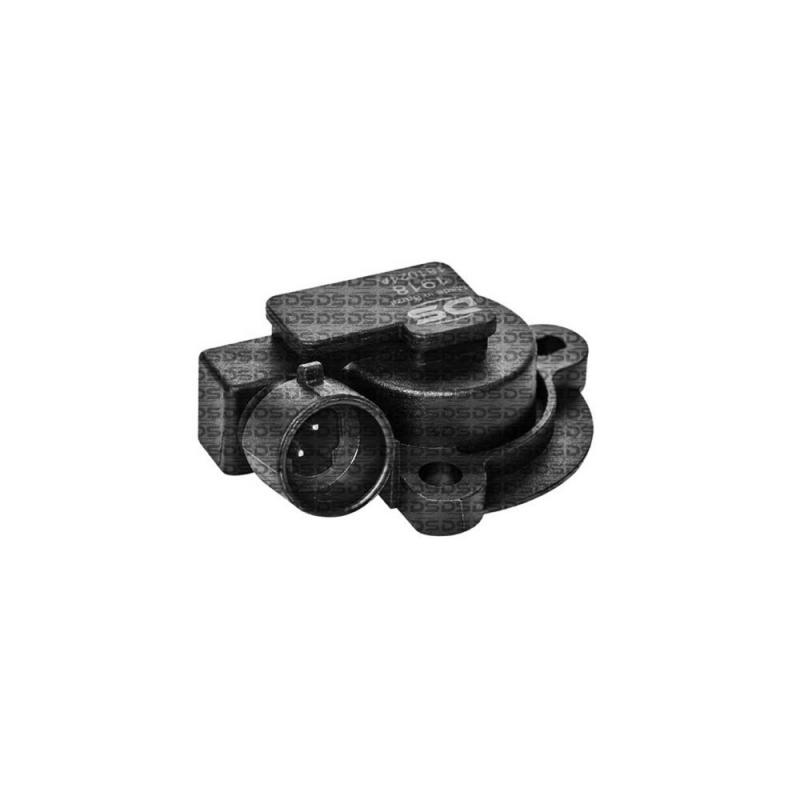

Throttle Position Sensor (TPS)

DS Code:1918


ACDelco:213895
BECK ARNLEY:1580516
Delphi:SS10425
GM:17087653
GM:17106681
GM:17103174
HELLA:6PX008476131
STANDARD MOTOR:TH42
Wells:5S5036

Manufacturer	Model	Engine	Fuel	Year
GM	Camaro	5.0 V8 16v	Gasoline	91 > 95
GM	Corsa	1.4 4Cil 8v	Gasoline	02 > 08
GM	Kadett	1.8 4Cil 16v	Gasoline	82 > 91
GM	Omega	3.8 V6 12v	Gasoline	99 > 04
GM	Spark	1.0 4Cil 16v	Gasoline	06 > 07
GM	Tigra	1.6 4Cil 16v	Gasoline	98 > 00
Oldsmobile	Cutlass Cruiser	3.3 V6 12v	Gasoline	92 > 92
Oldsmobile	Cutlass Cruiser	5.0 V8 16v	Gasoline	91 > 92
Oldsmobile	Firenza	2.0 4Cil 8v	Gasoline	87 > 88
Pontiac	Firebird	5.0 V8 16v	Gasoline	91 > 95
Pontiac	Sunfire	2.2 4Cil 8v	Gasoline	95 > 97

Details Throttle Position Sensor (TPS)

With a new technology, the DS throttle position sensor has an electronic sensor that exempts the product from corrosion, wear, and misuse problems, ensuring greater accuracy, repeatability, and durability.

The Throttle Position Sensor (TPS) is used to monitor the accelerator position in an internal combustion engine.

This sensor is usually connected to the throttle axis to directly control the position of the accelerator throttle valve.

Through the TPS, the Electronic Control Unit (ECU) obtains instantaneous information about the throttle position, which allows the central to identify the power required by the driver.

This information will be used to help the calculation of the injection timing and ignition advance, among other operating strategies.
