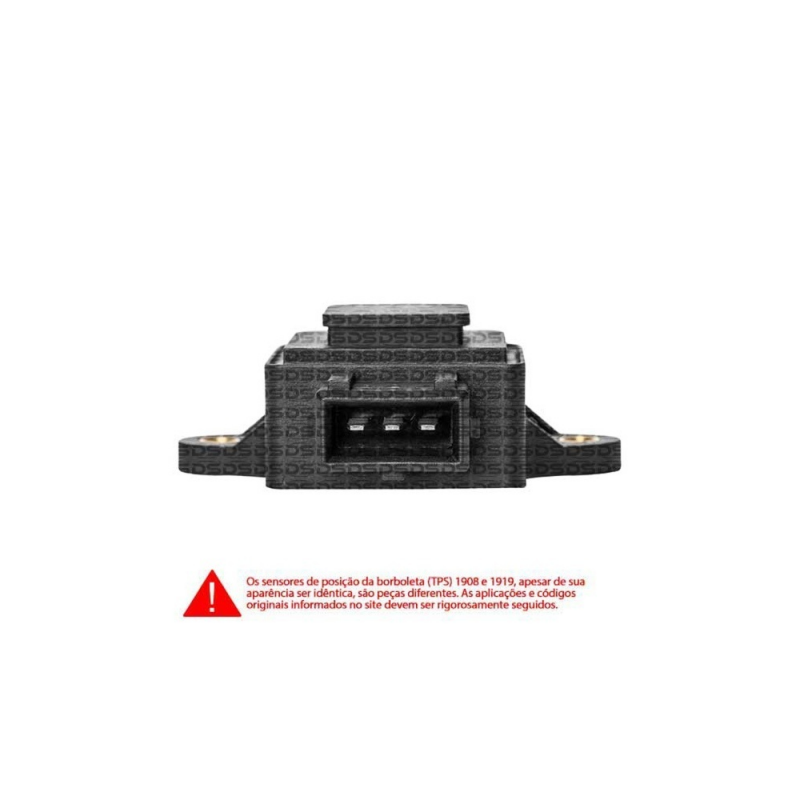

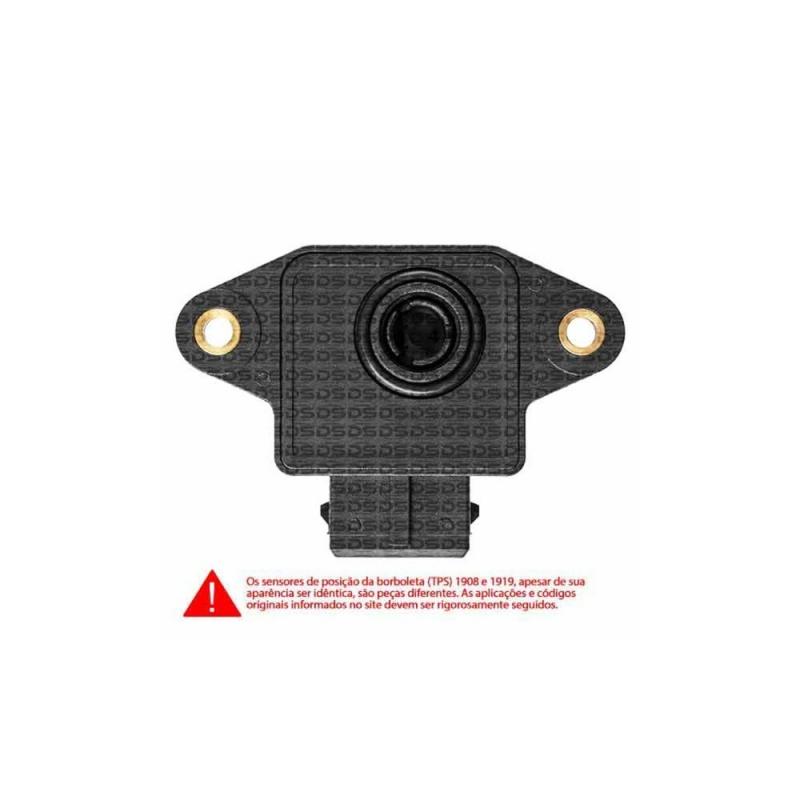

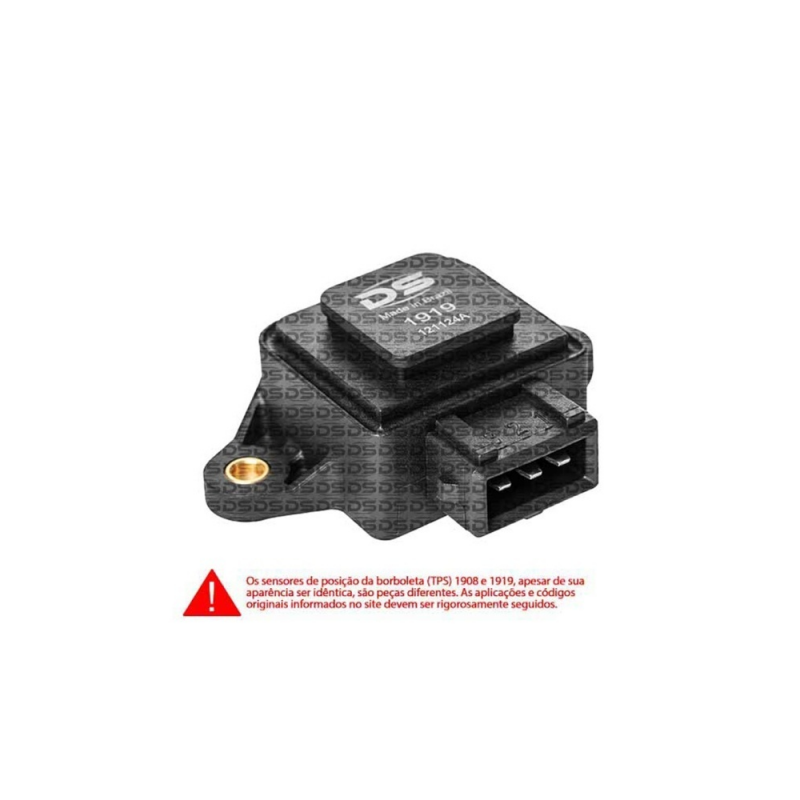

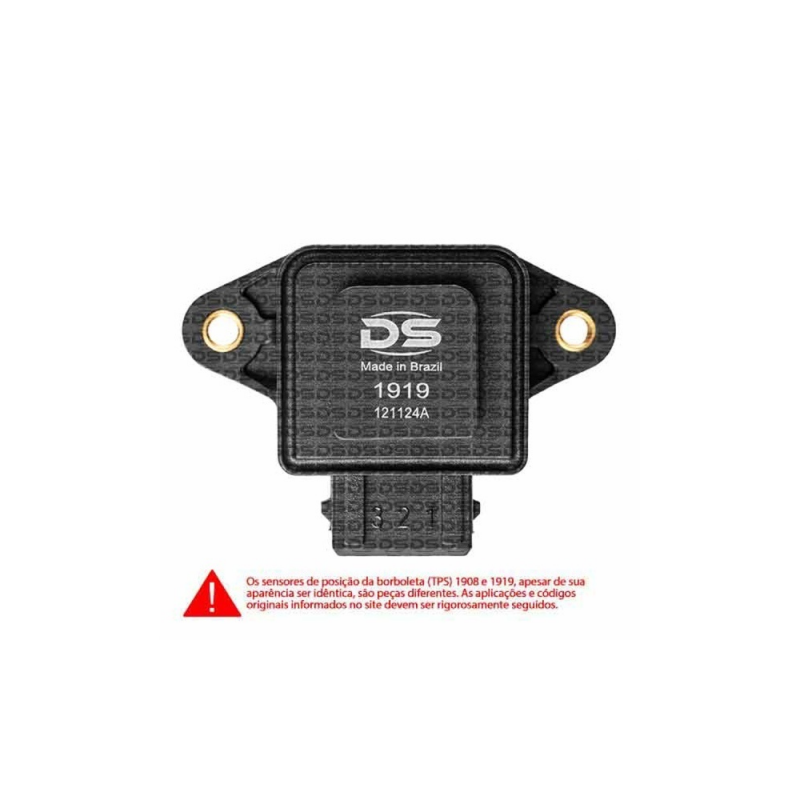

Throttle Position Sensor (TPS)

DS Code:1919
Note: Throttle Position Sensors (TPS) 1908 and 1919, despite looking the same, they are different parts. The application and original codes informed in the website must be thoroughly followed.


Bosch:0280122001
GM:87323839
GM:93211367
GM:9280082000

Manufacturer	Model	Engine	Fuel	Year
Asia	Towner	0.8 3Cil 6v	Gasoline	98 > 03
GM	C-20	4.1 6Cil 12v	Gasoline	96 > 96
GM	Omega	4.1 6Cil 12v	Gasoline	94 > 98
GM	Silverado	4.1 6Cil 12v	Gasoline	97 > 99
GM	Suprema	4.1 6Cil 12v	Gasoline	94 > 94

Details Throttle Position Sensor (TPS)

With a new technology, the DS throttle position sensor has an electronic sensor that exempts the product from corrosion, wear, and misuse problems, ensuring greater accuracy, repeatability, and durability.

The Throttle Position Sensor (TPS) is used to monitor the accelerator position in an internal combustion engine.

This sensor is usually connected to the throttle axis to directly control the position of the accelerator throttle valve.

Through the TPS, the Electronic Control Unit (ECU) obtains instantaneous information about the throttle position, which allows the central to identify the power required by the driver.

This information will be used to help the calculation of the injection timing and ignition advance, among other operating strategies.
