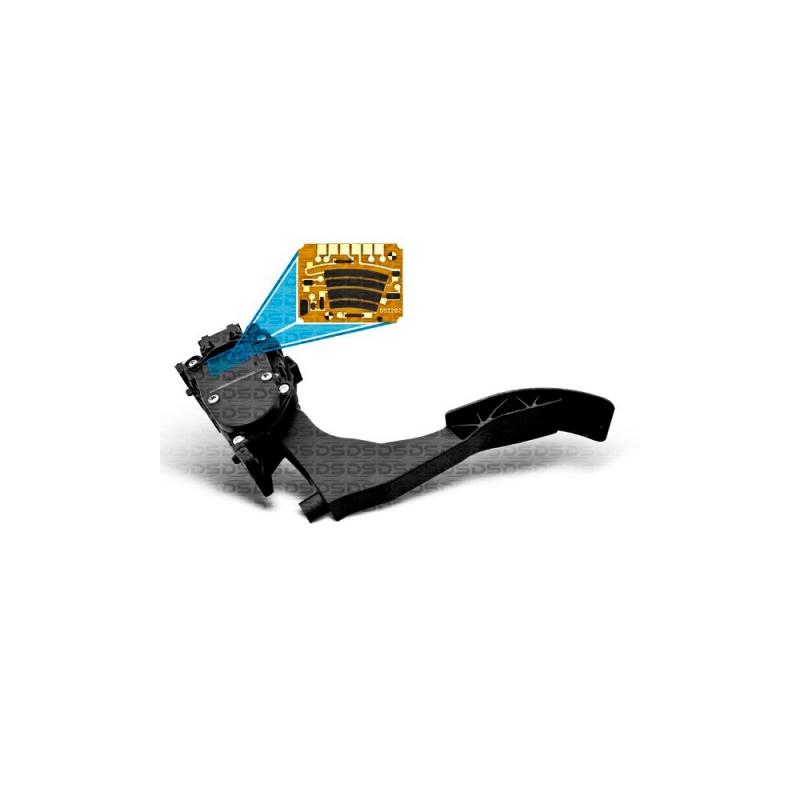

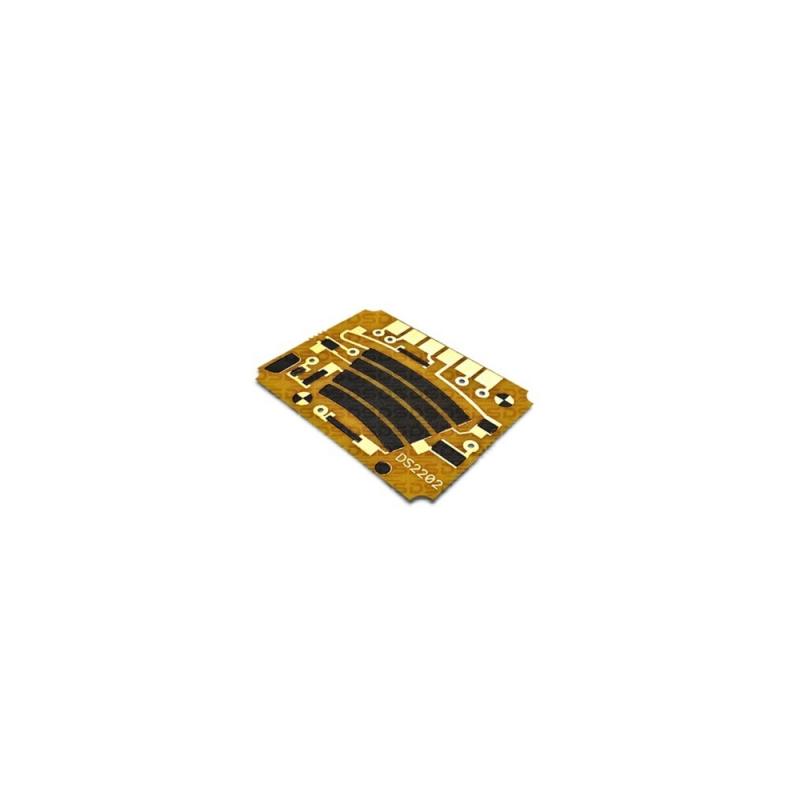

Accelerator Pedal Position Sensor (APP)

DS Code:2202
Note: Esta placa não serve para os modelos de pedais Bosch.


HELLA:6PV93404601
HELLA:6PV93404602
HELLA:6PV00849601
HELLA:6PV00849641
HELLA:6PV00802646
VW:6Q1721503C
VW:6Q1721503M
VW:6QE721503B
VW:6QE721503D
VW:2R2721507

Manufacturer	Model	Engine	Fuel	Year	Note
Audi	A1	Todos	All	10 > 14
Audi	A3	Todos	All	> 06
Audi	A4	Todos	All	> 08
Audi	A6	Todos	All	> 05
Audi	S3	Todos	All	> 04
Audi	S4	Todos	All	> 08
Audi	TT	Todos	All	03 > 06
Seat	Cordoba	Todos	All	03 > 09
Seat	Ibiza	Todos	All	06 > 14
Seat	Toledo	Todos	All	13 > 14
Skoda	Fabia	Todos	All	07 > 14
Skoda	Rapid	Todos	All	13 > 14
Skoda	Roomster	Todos	All	06 > 14
Volkswagen	13.180 E Constellation	4.8 4Cil 8v	Diesel	06 > 13	MWM 4.12 TCE
Volkswagen	15.180 E Constellation	4.8 4Cil 8v	Diesel	06 > 12	MWM 4.12 TCE
Volkswagen	17.250 E Constellation	5.9 6Cil 24v	Diesel	06 > 12	Cummins Interact 6
Volkswagen	17.320 E Constellation	8.2 6Cil 24v	Diesel	10 > 12	Cummins ISC
Volkswagen	19.320 E Constellation	8.2 6Cil 24v	Diesel	06 > 12	Cummins ISC
Volkswagen	19.370 Constellation	9.3 6Cil 24v	Diesel	07 > 12	MWM NGD 370
Volkswagen	24.250 E Constellation	5.9 6Cil 24v	Diesel	06 > 13	Cummins Interact 6
Volkswagen	24.320 E Constellation	5.9 6Cil 24v	Diesel	10 > 12	Cummins Interact 6
Volkswagen	25.320 Constellation	8.2 6Cil 24v	Diesel	08 > 12	Cummins ISC
Volkswagen	25.370 E Constellation	9.3 6Cil 24v	Diesel	08 > 12	MWM NGD 370
Volkswagen	26.260 Constellation	7.2 6Cil 24v	Diesel	08 > 13	MWM 6.12 TCE
Volkswagen	31.260 Constellation	7.2 6Cil 24v	Diesel	08 > 12	MWM 6.12 TCE
Volkswagen	31.320 E Constellation	8.2 6Cil 24v	Diesel	07 > 13	Cummins ISC
Volkswagen	31.370 E Constellation	9.3 6Cil 24v	Diesel	08 > 12	MWM NGD 370
Volkswagen	Amarok	Todos	All	10 > 14
Volkswagen	Beetle	Todos	All	02 > 10
Volkswagen	Bora	Todos	All	05 > 11
Volkswagen	CrossFox	Todos	All	06 > 11
Volkswagen	Fox	Todos	All	04 > 12
Volkswagen	Gol G3	Todos	All	03 > 05
Volkswagen	Gol G4	Todos	All	05 > 08
Volkswagen	Gol G5	Todos	All	08 >
Volkswagen	Golf	Todos	All	03 > 14
Volkswagen	Kombi	Todos	All	06 > 12
Volkswagen	New Beetle	Todos	All	06 > 10
Volkswagen	Parati G3	Todos	All	03 > 05
Volkswagen	Parati G4	Todos	All	05 > 08
Volkswagen	Parati G5	Todos	All	08 >
Volkswagen	Passat	Todos	All	> 05
Volkswagen	Polo	Todos	All	03 > 12
Volkswagen	Saveiro G5	Todos	All	10 >
Volkswagen	SpaceFox	1.6 4Cil 8v	Flex	06 > 14
Volkswagen	Voyage	1.0 4Cil 8v	Flex	08 >
Volkswagen	Voyage	1.6 4Cil 8v	Flex	08 >

Details Accelerator Pedal Position Sensor (APP)

When the pedal is pressed, the electrical signal of the sensor – which may be fixed both to a device that connects the throttle cable to the electric wiring harness or to the pedal itself as a chip – is used by the ECU, which, on its turn, identifies the position of the pedal. With data provided by other sensors (sensor of water temperature of the engine, MAP sensor, etc.), the ECU makes some corrections and manages the demand for torque through the throttle plate, so it has an exact opening.
