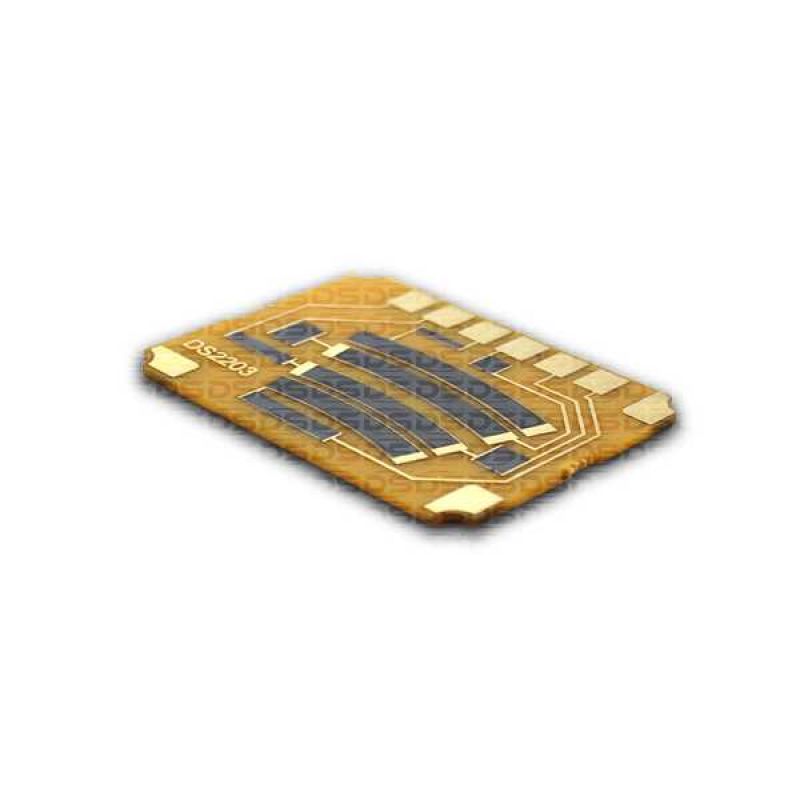

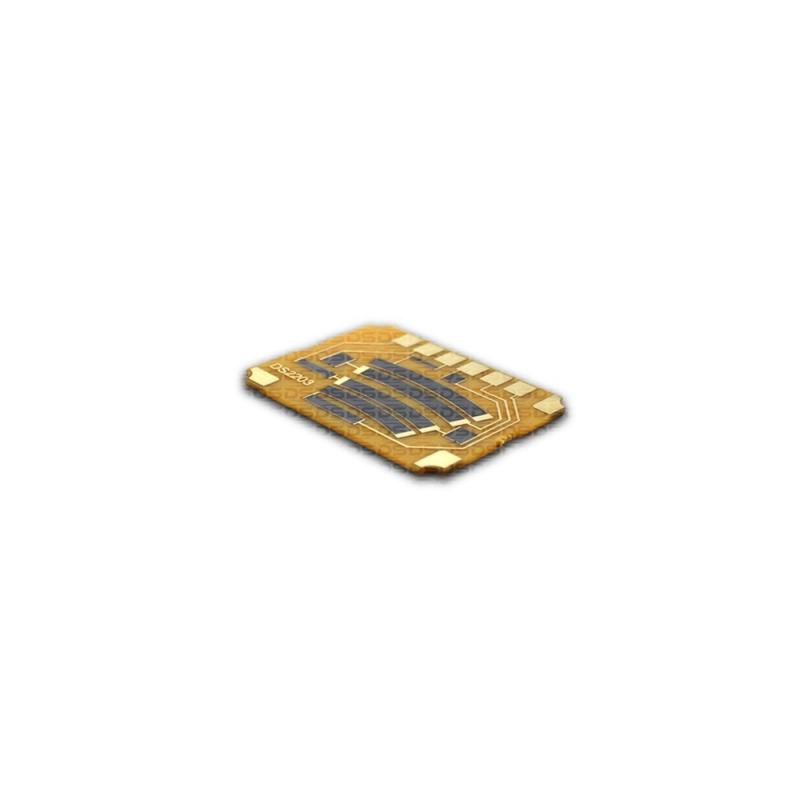

Accelerator Pedal Position Sensor (APP)

DS Code:2203
Note: Esta placa não serve para os modelos de pedais Bosch.

GM:9157998
GM:9157999
GM:9199356
GM:9202342
GM:93340873
GM:9202341
GM:9129423
GM:93383438
GM:93383440
HELLA:6PV00811201
HELLA:6PV00811000
HELLA:6PV00811005
HELLA:6PV00811200
HELLA:6PV00811401
HELLA:6PV00811404
HELLA:6PV00811403
Manufacturer Model Engine Fuel Year Note
GM Astra 1.8 4Cil 8v Ethanol 03 > 11
GM Astra 2.0 4Cil 16v Gasoline 03 > 05
GM Astra 2.0 4Cil 8v Flex 04 > 11
GM Corsa Todos All 02 > 12
GM Montana 1.4 4Cil 8v Flex 06 > 12
GM Vectra Todos All 03 > 11
GM Zafira Todos All 03 > 12

Details Accelerator Pedal Position Sensor (APP)

When the pedal is pressed, the electrical signal of the sensor – which may be fixed both to a device that connects the throttle cable to the electric wiring harness or to the pedal itself as a chip – is used by the ECU, which, on its turn, identifies the position of the pedal. With data provided by other sensors (sensor of water temperature of the engine, MAP sensor, etc.), the ECU makes some corrections and manages the demand for torque through the throttle plate, so it has an exact opening.
