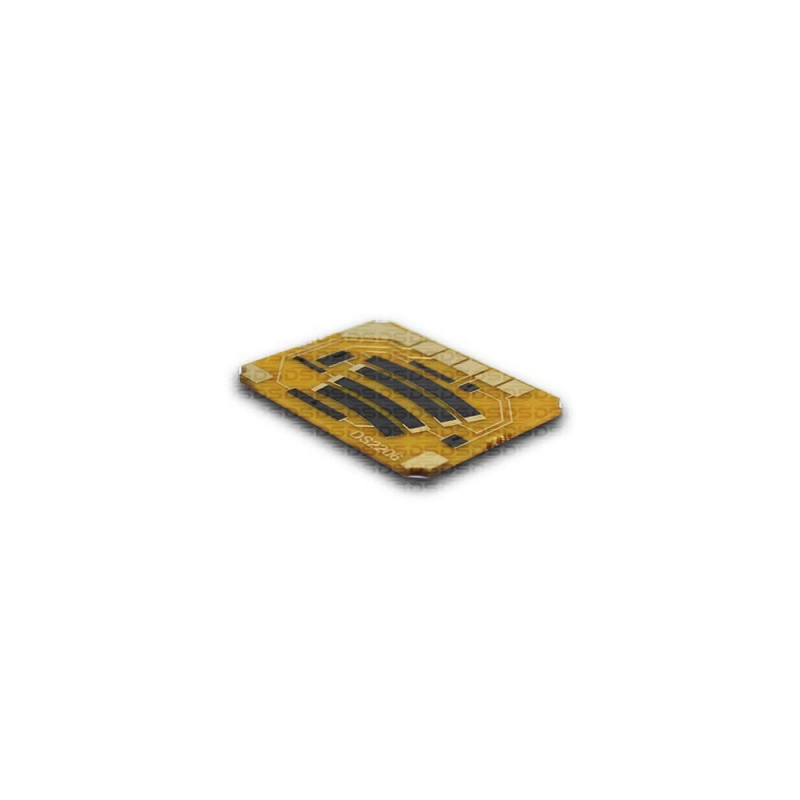

Accelerator Pedal Position Sensor (APP)

DS Code:2206
Note: Esta placa não serve para os modelos de pedais Bosch.


CITROËN:1601K3
DACIA:6001548477
DACIA:8200386506D
HELLA:6PV00858800
HELLA:6PV00908502
HELLA:6PV00908503
PEUGEOT:9639961580
RENAULT:6001548477
RENAULT:8200386506D
RENAULT:8200386506B
RENAULT:8200589366D

Manufacturer	Model	Engine	Fuel	Year
Citroën	C4	2.0 4Cil 16v	Gasoline	06 > 10
Citroën	C5	2.0 4Cil 16v	Gasoline	09 > 12
Peugeot	206	1.0 4Cil 16v	Gasoline	01 > 06
Peugeot	307	2.0 4Cil 16v	Gasoline	03 > 07
Renault	Duster	1.6 4Cil 16v	Flex	12 >
Renault	Duster	2.0 4Cil 16v	Flex	12 >
Renault	Logan	1.0 4Cil 16v	Flex	08 >
Renault	Logan	1.6 4Cil 16v	Flex	08 >
Renault	Logan	1.6 4Cil 8v	Flex	08 >
Renault	Sandero	1.0 4Cil 16v	Flex	08 >
Renault	Sandero	1.6 4Cil 16v	Flex	08 >
Renault	Sandero	1.6 4Cil 8v	Flex	08 >

Details Accelerator Pedal Position Sensor (APP)

When the pedal is pressed, the electrical signal of the sensor – which may be fixed both to a device that connects the throttle cable to the electric wiring harness or to the pedal itself as a chip – is used by the ECU, which, on its turn, identifies the position of the pedal. With data provided by other sensors (sensor of water temperature of the engine, MAP sensor, etc.), the ECU makes some corrections and manages the demand for torque through the throttle plate, so it has an exact opening.
