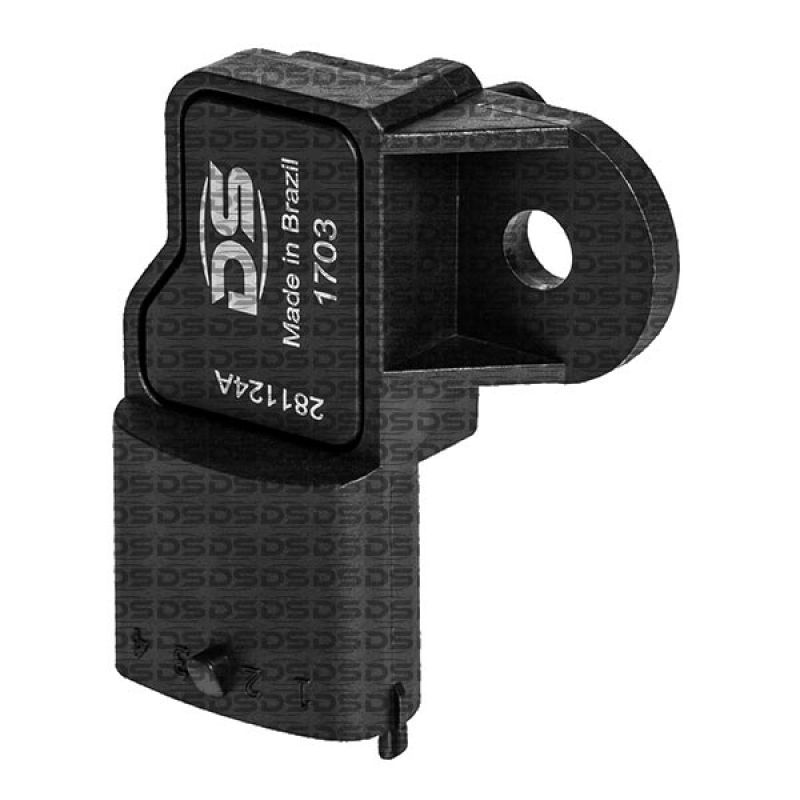

Manifold Absolute Pressure Sensor (MAP)

DS Code : 1703 | Other Codes : 7084986, 46553045, 55209037, 55219296, 71732447, 12568929, 93313154, 28082506, 888030, 7145, 0261230030, 0261230174, 0261230245, 0261230268, 5191, GI3030, ESM2030

Manufacturer Model Engine Fuel Year Note
Dodge Forza 1.4 4Cil 8v Tetrafuel 14 >
Dodge Ram 700 1.6 4Cil 16v Gasoline 15 > E.TorQ
Dodge Vision 1.6 4Cil 16v Gasoline 15 > E.TorQ
Fiat 500 1.4 4Cil 8v Flex 12 >
Fiat Brava 1.8 4Cil 16v Gasoline 00 > 03
Fiat Bravo 1.8 4Cil 16v Flex 11 > E.TorQ
Fiat Doblô 1.3 4Cil 16v Gasoline 01 > 06 MPI
Fiat Doblô 1.4 4Cil 8v Flex 10 >
Fiat Doblô 1.8 4Cil 16v Flex 10 > E.TorQ
Fiat Doblô 1.8 4Cil 8v Flex 10 >
Fiat Fiorino 1.0 4Cil 8v Flex 14 > MPI
Fiat Fiorino 1.3 4Cil 8v Flex 07 > 13 MPI
Fiat Fiorino 1.3 4Cil 8v Gasoline 03 > 05 MPI
Fiat Fiorino 1.4 4Cil 8v Flex 14 > MPI
Fiat Grand Siena 1.4 4Cil 8v Flex 13 > MPI
Fiat Grand Siena 1.6 4Cil 16v Flex 13 > E.TorQ
Fiat Idea 1.4 4Cil 8v Flex 06 > MPI
Fiat Idea 1.6 4Cil 16v Flex 11 > 13 E.TorQ
Fiat Idea 1.8 4Cil 16v Flex 11 > 13 E.TorQ
Fiat Palio 1.0 4Cil 8v Flex 04 > MPI
Fiat Palio 1.0 4Cil 8v Gasoline 00 > MPI
Fiat Palio 1.3 4Cil 16v Flex 00 > MPI
Fiat Palio 1.3 4Cil 8v Flex 04 > MPI
Fiat Palio 1.3 4Cil 8v Gasoline 00 > MPI
Fiat Palio 1.4 4Cil 8v Flex 04 > MPI
Fiat Palio 1.6 4Cil 16v Flex 12 > E.TorQ
Fiat Palio Weekend 1.0 4Cil 8v Flex 04 > MPI
Fiat Palio Weekend 1.0 4Cil 8v Gasoline 00 > MPI
Fiat Palio Weekend 1.3 4Cil 8v Flex 04 > MPI
Fiat Palio Weekend 1.3 4Cil 8v Gasoline 00 > MPI
Fiat Palio Weekend 1.4 4Cil 8v Flex 04 > MPI
Fiat Palio Weekend 1.8 4Cil 8v Flex 07 > 08 MPI
Fiat Punto 1.4 4Cil 8v Flex 13 > MPI
Fiat Punto 1.6 4Cil 16v Flex 13 > E.TorQ
Fiat Punto 1.8 4Cil 16v Flex 13 > E.TorQ
Fiat Siena 1.0 4Cil 16v Gasoline 02 > MPI
Fiat Siena 1.0 4Cil 8v Flex 04 > MPI
Fiat Siena 1.0 4Cil 8v Gasoline 00 > 05 MPI
Fiat Siena 1.3 4Cil 16v Flex 00 > MPI
Fiat Siena 1.3 4Cil 8v Flex 04 > MPI
Fiat Siena 1.3 4Cil 8v Gasoline 00 > MPI
Fiat Siena 1.4 4Cil 8v Flex 04 > MPI
Fiat Siena 1.4 4Cil 8v Tetrafuel 08 > 10 MPI
Fiat Siena 1.6 4Cil 16v Flex 11 > 12 E.TorQ
Fiat Siena 1.8 4Cil 8v Flex 07 > 08 MPI
Fiat Strada 1.3 4Cil 16v Gasoline 00 > MPI
Fiat Strada 1.3 4Cil 8v Gasoline 03 > 05 MPI
Fiat Strada 1.4 4Cil 8v Flex 06 > MPI
Fiat Strada 1.8 4Cil 16v Flex 11 > 12 E.TorQ
Fiat Toro 1.8 4Cil 16v Flex 16 > E.TorQ
Fiat Uno 1.0 4Cil 8v Flex 09 > MPI
Fiat Uno 1.0 4Cil 8v Gasoline 02 > MPI
Fiat Uno 1.3 4Cil 8v Gasoline 02 > MPI
Fiat Uno 1.4 4Cil 8v Flex 11 > MPI
GM Blazer 4.3 V6 12v Gasoline 01 > 03
GM Celta 1.0 4Cil 8v Flex 09 >
GM Celta 1.4 4Cil 8v Flex 09 > 13
GM Cobalt 1.4 4Cil 8v Flex 12 > 13
GM Corsa 1.4 4Cil 8v Flex 06 >
GM Corsa 1.8 4Cil 8v Flex 04 >
GM Corsa 1.0 4Cil 8v Flex 04 > 13
GM Meriva 1.4 4Cil 8v Flex 08 > 12
GM Meriva 1.8 4Cil 8v Flex 04 > 12
GM Montana 1.4 4Cil 8v Flex 08 > 11
GM Montana 1.8 4Cil 8v Flex 04 > 11
GM Prisma 1.0 4Cil 8v Flex 09 > 11
GM Prisma 1.4 4Cil 8v Flex 06 > 13
GM S10 4.3 V6 12v Gasoline 01 > 03
JAC J3 1.4 4Cil 16v Gasoline 10 >
Jeep Renegade 1.8 4Cil 16v Flex 15 > E.TorQ

Details Manifold Absolute Pressure Sensor (MAP)

The manifold absolute pressure sensor (MAP) informs the electronic control unit (ECU) the absolute pressure measured inside the intake manifold under the several operation conditions of the engine.

The value obtained is added to the information of air temperature. With these data, the system identifies the air mass that is being intake, calculates the progress of the ignition and the time for opening the injection nozzle, always looking for the ideal air/fuel ratio.

On older vehicles, the MAP sensor is fixed next to the engine and connected to the intake manifold through a hose.

In more modern vehicles, the MAP sensor is integrated and its function is to inform the pressure in the intake manifold and the temperature of the air. The sensor is directly fixed by screws on the intake manifold (it does not use a hose).
