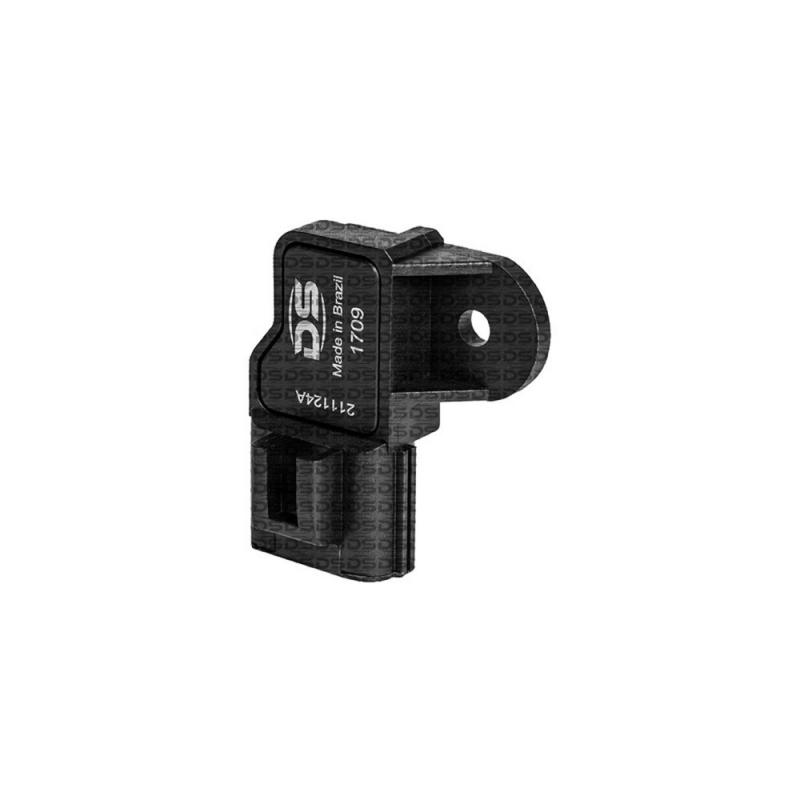

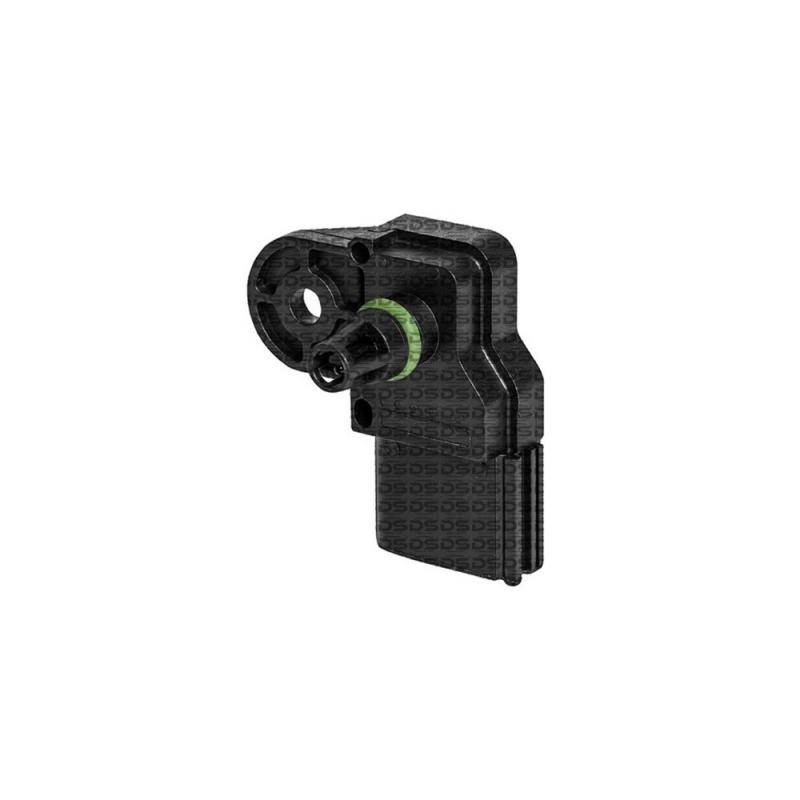

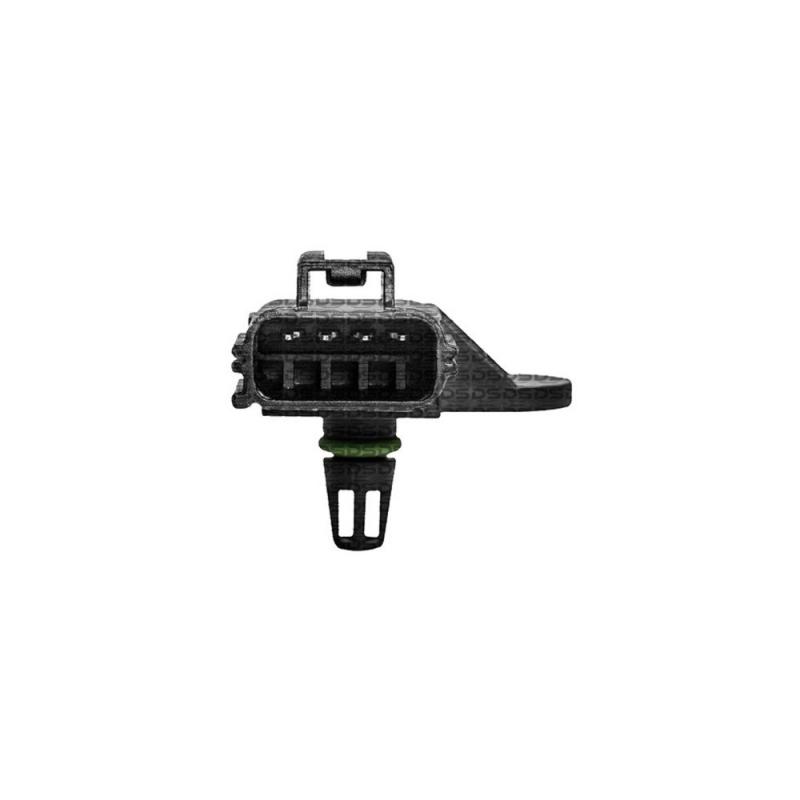

Manifold Absolute Pressure Sensor (MAP)

DS Code:1709

Bosch:0261230027
DPL:888027
E-Klass:ESM2027
FORD:XS6F9F479AB
FORD:XS6F9F479AA
GAUSS:GI3079
LP:931027909
MAXAUTO:020041
MAXAUTO:5179
MTE:7146
Marelli:CA001SPM
Manufacturer Model Engine Fuel Year Note
Ford Courier 1.6 4Cil 8v Gasoline 99 > 13 Zetec Rocam
Ford Escort 1.6 4Cil 8v Ethanol 00 > 02 Zetec Rocam
Ford Escort 1.6 4Cil 8v Gasoline 00 > 02 Zetec Rocam
Ford Fiesta 1.0 4Cil 8v Flex 02 > 13 Zetec Rocam
Ford Fiesta 1.0 4Cil 8v Gasoline 99 > 06 Zetec Rocam
Ford Fiesta 1.6 4Cil 8v Flex 02 > 13 Zetec Rocam
Ford Fiesta 1.6 4Cil 8v Gasoline 99 > 06 Zetec Rocam
Ford Focus 1.5 4Cil 8v Flex 03 > 09 Zetec Rocam
Ford Ka 1.0 4Cil 8v Flex 08 > 13 Zetec Rocam
Ford Ka 1.0 4Cil 8v Gasoline 99 > 07 Zetec Rocam
Ford Ka 1.6 4Cil 8v Flex 08 > 13 Zetec Rocam
Ford Ka 1.6 4Cil 8v Gasoline 99 > 07 Zetec Rocam

Details Manifold Absolute Pressure Sensor (MAP)

The manifold absolute pressure sensor (MAP) informs the electronic control unit (ECU) the absolute pressure measured inside the intake manifold under the several operation conditions of the engine.

The value obtained is added to the information of air temperature. With these data, the system identifies the air mass that is being intake, calculates the progress of the ignition and the time for opening the injection nozzle, always looking for the ideal air/fuel ratio.

On older vehicles, the MAP sensor is fixed next to the engine and connected to the intake manifold through a hose.

In more modern vehicles, the MAP sensor is integrated and its function is to inform the pressure in the intake manifold and the temperature of the air. The sensor is directly fixed by screws on the intake manifold (it does not use a hose).
